APL Case Study - Aluminium Trapezoidal Roofing & Sinusoidal Cladding - Fareham Business Park

Project: Faraday Business Park

Date: 2021

Background:

·        APL were engaged with the architect early in the project design and specification process, providing specification and system support through the tender process

·        APL’s strong design and engineering capability ensured that the bespoke window pods designed by the architect were incorporated in early details

·        Due to APL’s strong supply-chain relationship, all material was able to be procured and delivered on time to meet the projects programme

·        APL provided all thermal and structural calculations

Systems:

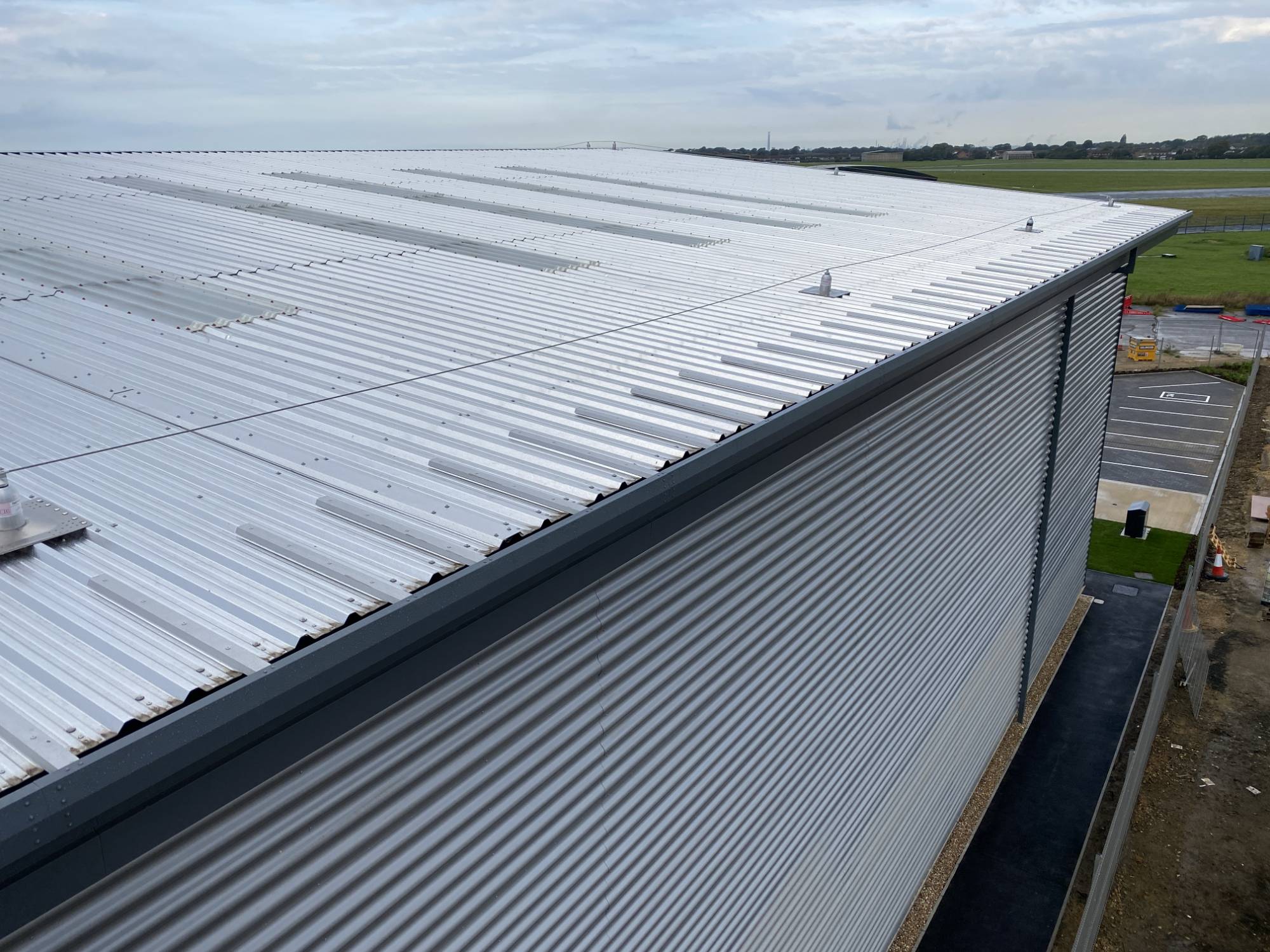

·        10,000m² of APL built-up roof system with stucco-embossed mill-finished aluminium trapezoidal AP31/1000RR profile, along with PV support system

·        8,000m² of APL built-up wall system with steel sinusoidal AP45HR in RAL 9006 and RAL 7012 as the external profile

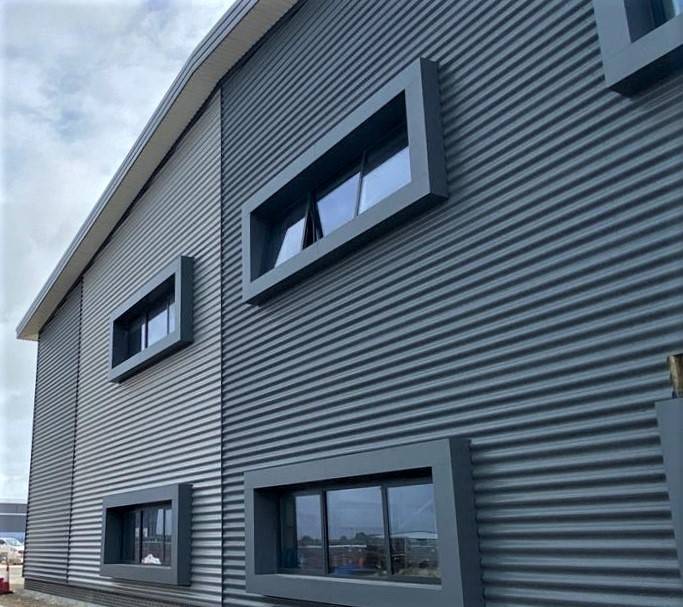

·        Bespoke window pods fabricated in 3mm aluminium with a Class 2 PPC coating

·        APL Tritherm™ GALV sub-framing

·        All rainwater goods including gutters and downpipes

·        All fixings and accessories

Building Location:

·        Fareham
