Old Woking Retirement Home - Ventilation and Screening Louvres

OVERVIEW

A new project in Woking showcases the many benefits of Maple’s new Pluto louvred screening system.

Designed to hide unsightly HVAC machinery on the roof of a new four-storey independent living development, the system is lighter and easier to install than traditional systems.



It’s perfect for the rooftop location. Seen from the ground, it’s a sleek bank of aluminium louvres – but the modular system also means that installation is safer, with time spent working at height kept to a minimum.



Maple’s Pluto system fixes easily to the building sub-frame using galvanised steel brackets, while an advanced sub-structure of posts, mullions and rails in high grade aluminium will provide hidden support for the 100mm louvre blades.

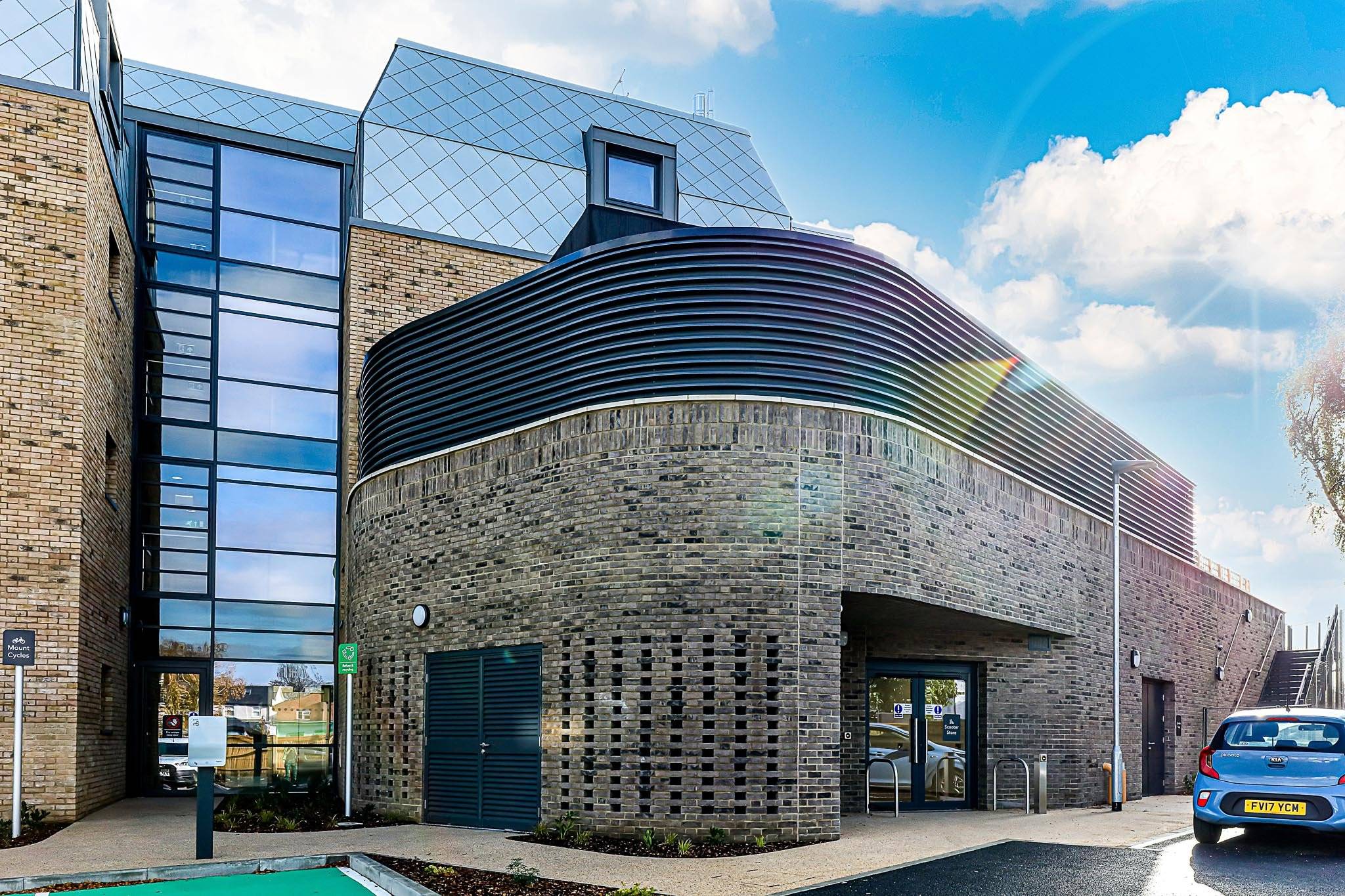

Despite a practical function of hiding equipment, pipes and ducting, the screening will not detract from the clean lines of the building, which are complemented by a bank of curved louvres (also supplied and installed by Maple) on the west elevation of the building.



The project is a collaboration between Maple, Willmott Dixon, HNW Architects and Woking Borough Council. When complete, the four-storey development will provide a mix of 48 one- and two-bed flats, which will provide independent (but supported) living.

Products featured in this case study

View all products (22)
Ventilation louvre - Contour VL® Ventilation Louvres

Ventilation louvre - Contour VL® Ventilation Louvres

Free-standing louvre - Contour® PL Pluto Screening Louvre

Free-standing louvre - Contour® PL Pluto Screening Louvre

Class A Weather louvre - Contour HP® High-performance Louvres

Class A Weather louvre - Contour HP® High-performance Louvres

Screening louvre - Contour SL® Rooftop Screening Louvre

Screening louvre - Contour SL® Rooftop Screening Louvre

More inspiration from Maple Façades

View inspiration

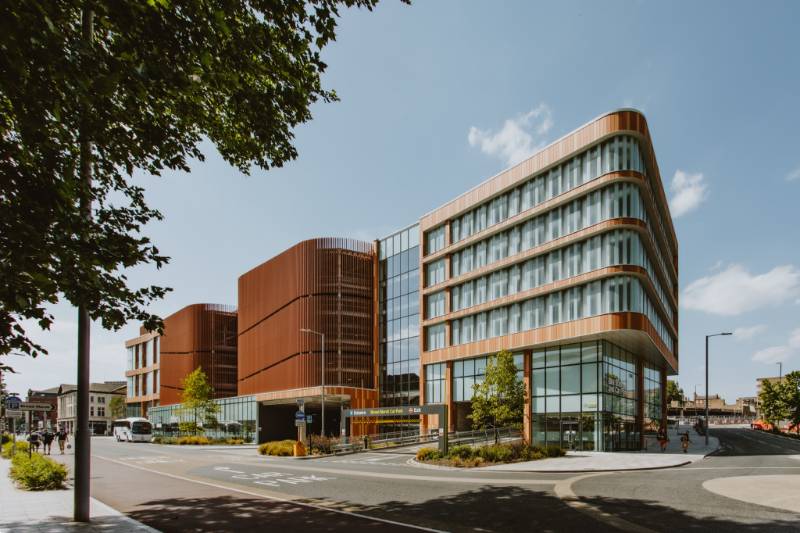

Broadmarsh Car Park & Interchange - Architectural Façade

Broadmarsh Car Park & Interchange - Architectural Façade

ARCO Offices and Fruitmarket MSCP - Architectural Façade

ARCO Offices and Fruitmarket MSCP - Architectural Façade

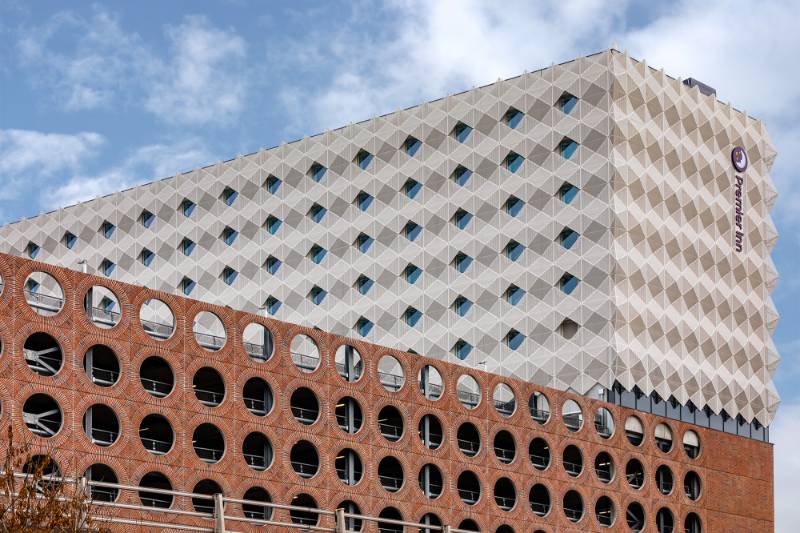

Premier Inn, Circle Square - Architectural Façade
