9 Marylebone Lane

OVERVIEW

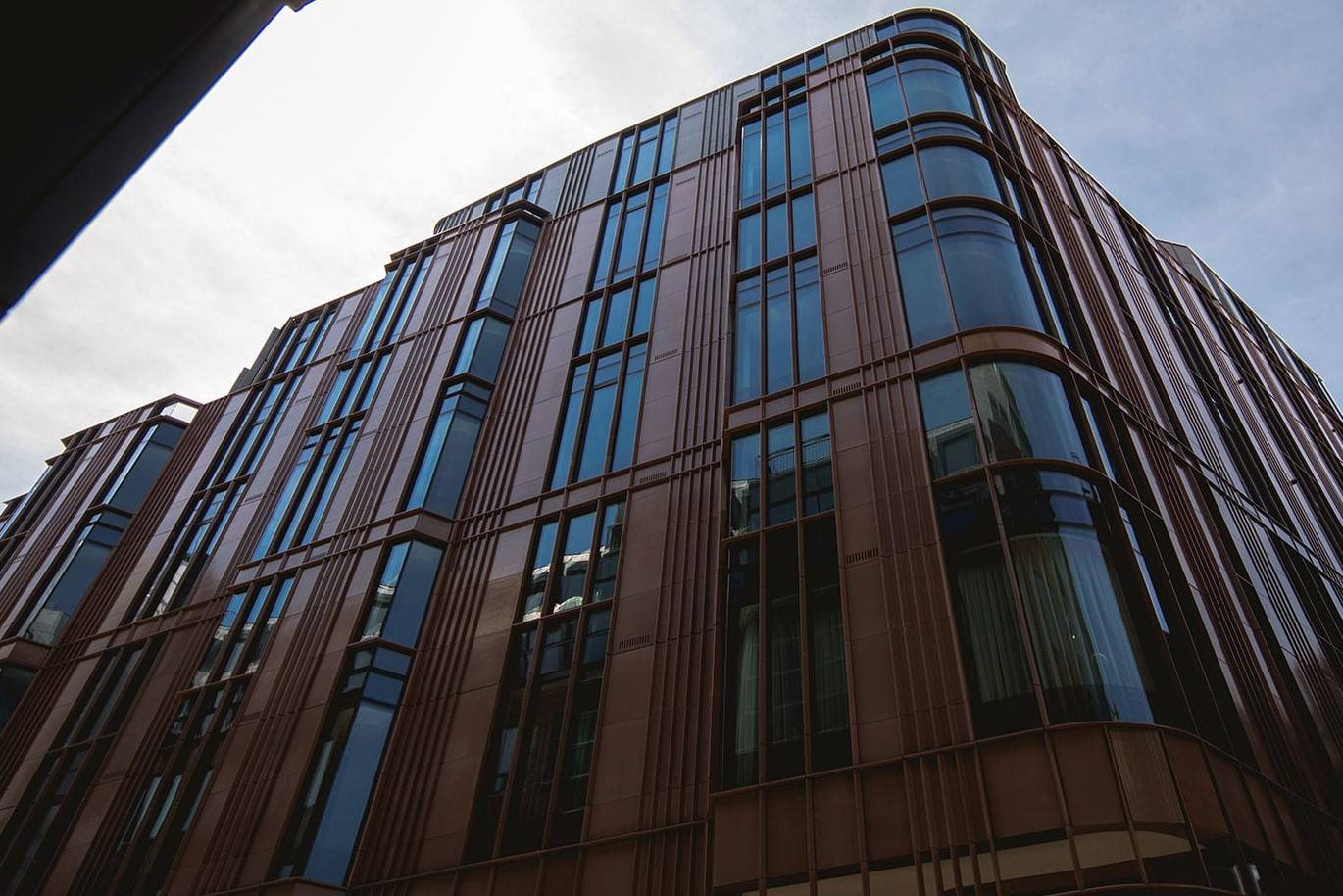

9 Marylebone Lane is a new-build high quality residential building comprising 2 basement levels, lower ground, ground and seven upper floors. The site is located in between Oxford Street and Wigmore Street.


The Jubilee Line runs directly beneath the site and the acoustic consultant, Hoare Lea, specified that the building needed to be supported on Stravibase VHS elastomer bearings with a maximum natural frequency of 15Hz.

The building is isolated at the base of columns and walls on top of the ground floor slab. Sensitive areas on the ground and lower ground floors are isolated using box-in-box constructions.


The bearing stiffnesses were used in the structural analysis to ensure that the correct bearings were used at each support location.


The three apartments and the gymnasium that were below the level of the main building isolation were built of Stravifloor Jackup concrete jack-up floating floors to create box-in-box constructions.
