Application

  • Corporate Offices.
  • Government buildings.
  • Leisure Clubs.
  • VIP areas.

Description

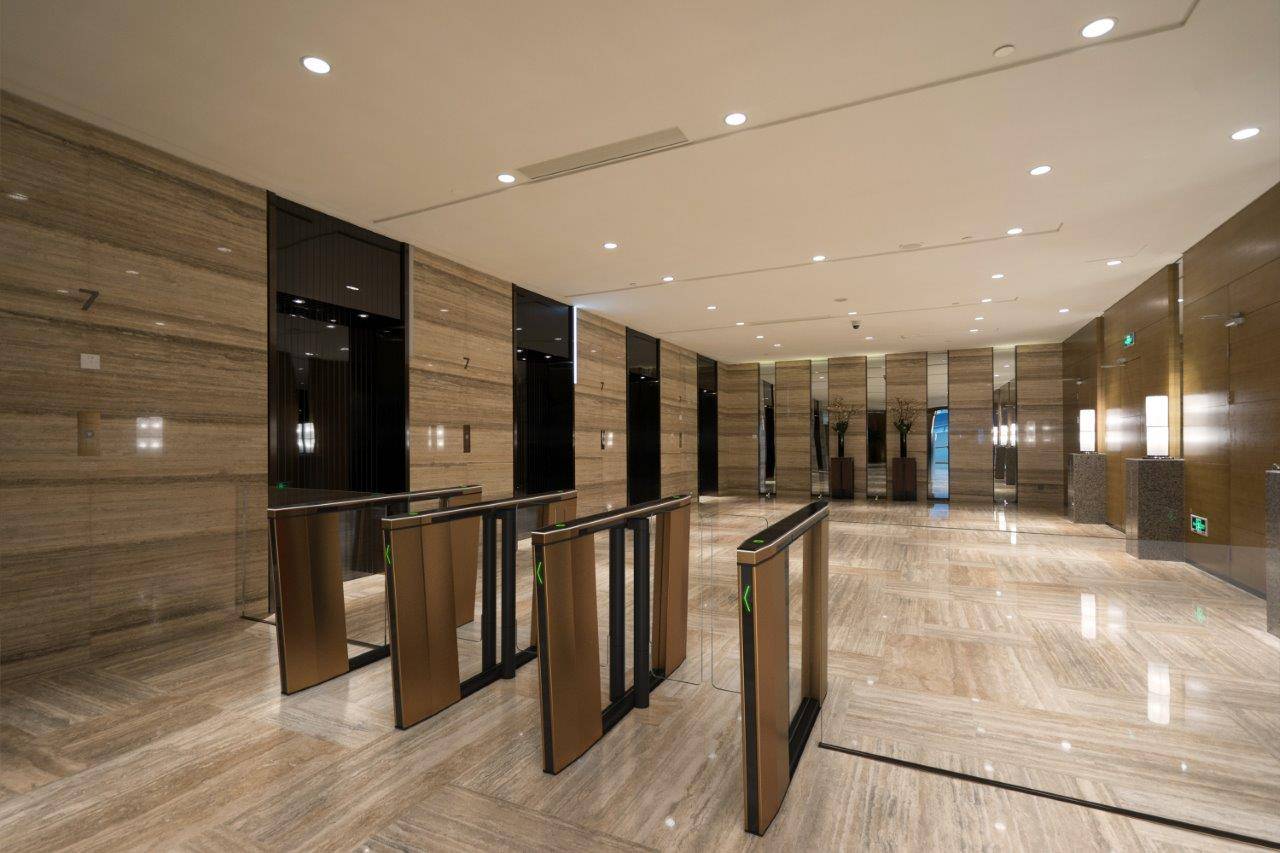

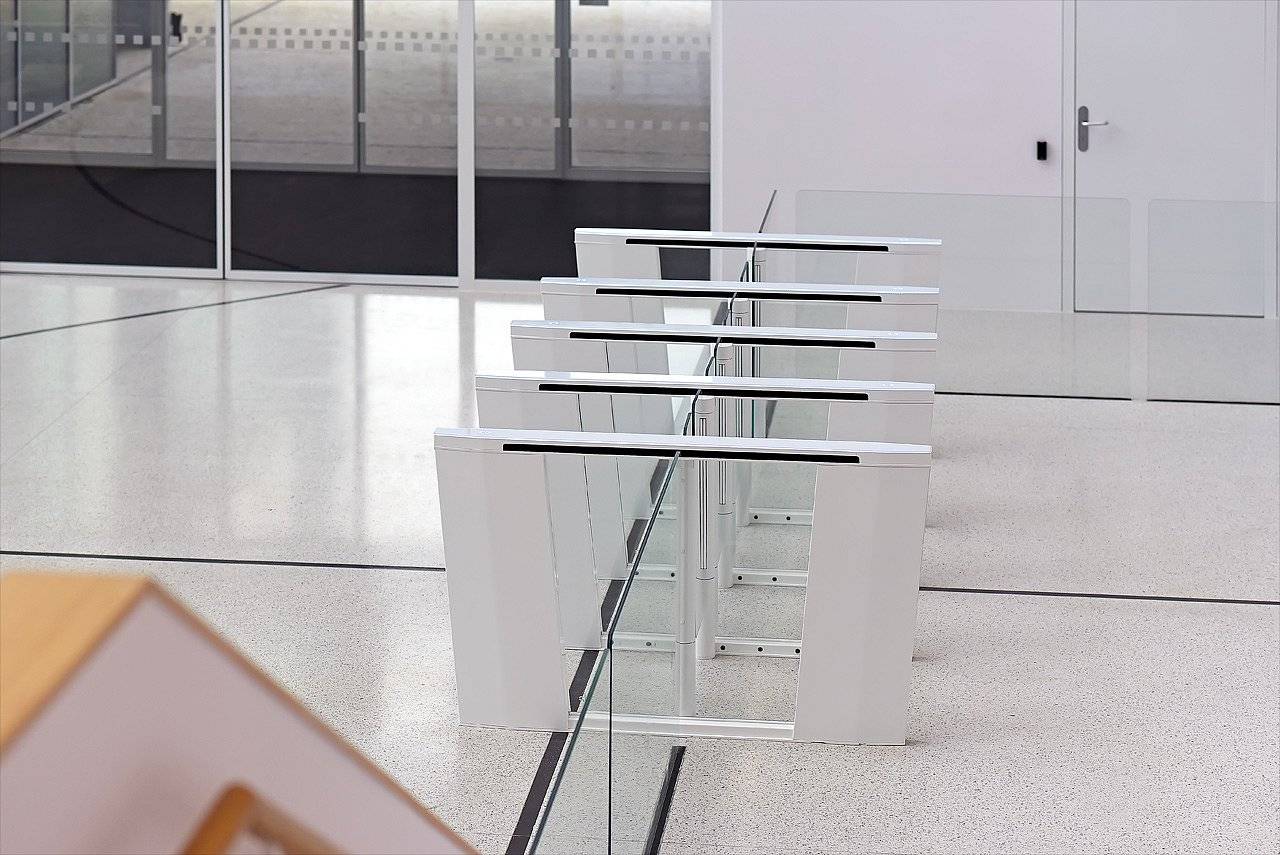

The Centurion EasyGate Superb is the slimmest swing barrier speedgate available on the market today. Combining sleek looks with advanced technology, the superb is the ideal choice for businesses looking for an entry gate that compliments their design theme while including all the security features you would expect from an Entrance Control product. The gate uses glass barrier that swing away from the user in a door-like motion to provide a high throughput. high security gate by ensuring only one person gains access for each authorised card presented. The versatile swing barrier design ensures the same narrow pedestal can be used for both standard and DDA lanes.


General information

Warranty description

Three year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers.

Thickness

8 mm.

Finish

-

Colour

Natural.

Surrounds

-

Type

Sheet metal (304 Brushed).

Manufacturer guidance

coloured stainless steel as a cost option.


316 stainless steel - Marine grade. RAL powder coat paint finishes.

Rotation

Card In / Card out.

Card In / Free Exit.

Operation

Electrical.

Manufacturer guidance

Doors will default to open in a fire emergency.

Dimensions

-

Overall width

99 mm.

Overall depth

1580 mm.

Overall height

990 mm.

Control units

-

Device acceptance

Biometric controls.

Card reader.

Intercom.

Proximity detection devices.

Coin acceptance units.

Operational voltage

Power supply Input: 230 Volts. Control Electronics: 12 Volts DC.

Finish

-

Worked finish

Brushed.

Door wings

550 mm

650 mm

750 mm

800 mm

900 mm

Show more

Manufacturer guidance

2 wing passage widths - refer to EasyGAte Technical Specification for corresponding wing widths.

Finish:

Smoked glass top.

Manufacturer guidance

Colour glass top options (Low Iron glass with custom paint finish).

Accessible design

DDA Compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

24 IR sensors detect tailgating and unauthorised entry.

Opening speed

0.7 Seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator).

MeanTimeBetweenFailure

3,000,000 operations.

Operation:

Normally closed.

Operating temperature

10°C to 50°C (with heater).

BIM objects

Platform Compatible Version
Revit
-

1

Literature

EasyGate Superb- Technical Specification

EasyGate Superb- Technical Specification

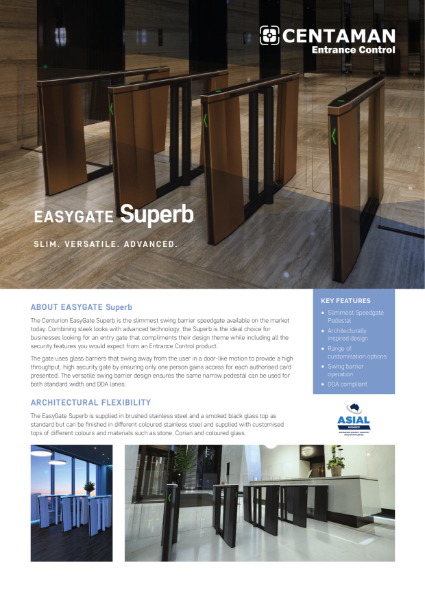

EasyGate Superb - Brochure

EasyGate Superb - Brochure
