EasyGate SPT
Verified by manufacturer over a year ago
Swing barrier speedgate.
Application
Designed for use in fast throughput environments including office lobby and leisure applications.
Description
The Centurion Easygate SPT is our state-of-the-art swing barrier speedgate designed to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from an authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The Swing barrier design ensure the same narrow pedestal can be used for both standard width and DDA lanes. This gate is available in square-edged cabinet profiles or rounded-edged profiles.
General information
Warranty description | Three year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpecPack | 08200 Doors, Door Frames and Hatches |
Specification data - Glazed half-height turnstiles
Leaves | |
Type | Toughened Clear Safety Glass.Manufacturer guidanceOptions for adding custom logos on glass barriers and/or colour LED indicators. |
Thickness | 8 mm. |
Surrounds | |
Type | Sheet metal. |
Material | Stainless steel (304 Brushed). |
Rotation | Card In / Card OutCard In / Free Exit |
Operation | Electrical. |
Dimensions | |
Overall width | 1500 mm. |
Overall depth | 1260 mm (max). |
Overall height | 999 mm.Manufacturer guidancePedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm. |
Passage width | 550 mm650 mm750 mm900 mm920 mm1000 mmManufacturer guidanceLane width is customisable within the ranges of 550-1050 mm |
Control units | |
Device acceptance | Card reader.Biometric controls.Coin acceptance units.Intercom.Proximity detection devices.Remote controls. |
Operational voltage | Power supply: 230 Volts. Control Electronics: 13.8 Volts DC. |
Finish: | Top Cover: 8 mm Tempered Safety Glass. |
Accessible design | DDA compliant. Manufacturer guidanceDDA compliance only applies when gates are at the correct spacing. |
Security | Fast-acting barriers close behind authorised users to deter tailgating. |
Sensors | 36 IR sensors detect tailgating and unauthorised entry. |
Opening speed | 0.5 Seconds. |
LED pictograms | Wait Mode (White Indicator). |
MeanTimeBetweenFailure | 5,000,000 operations. |
Operation: | Normally Closed. |
Profile | cabinet: rounded edged cabinet: square edged |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

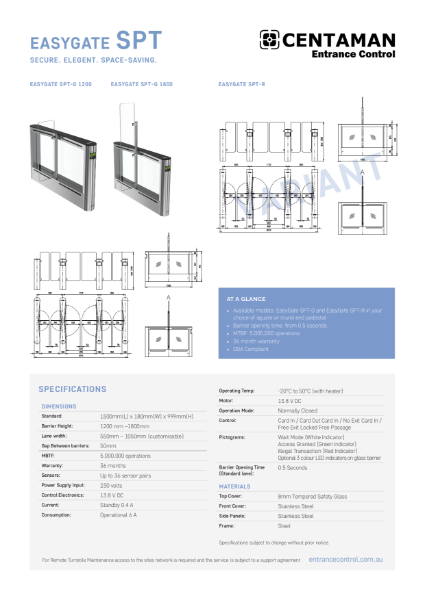

EasyGate SPT - Technical specification

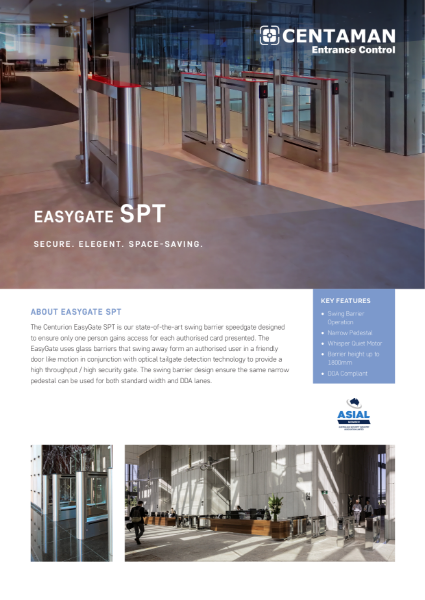

EasyGate SPT - Brochure
EasyGate SPT wide Technical data sheet
