Application

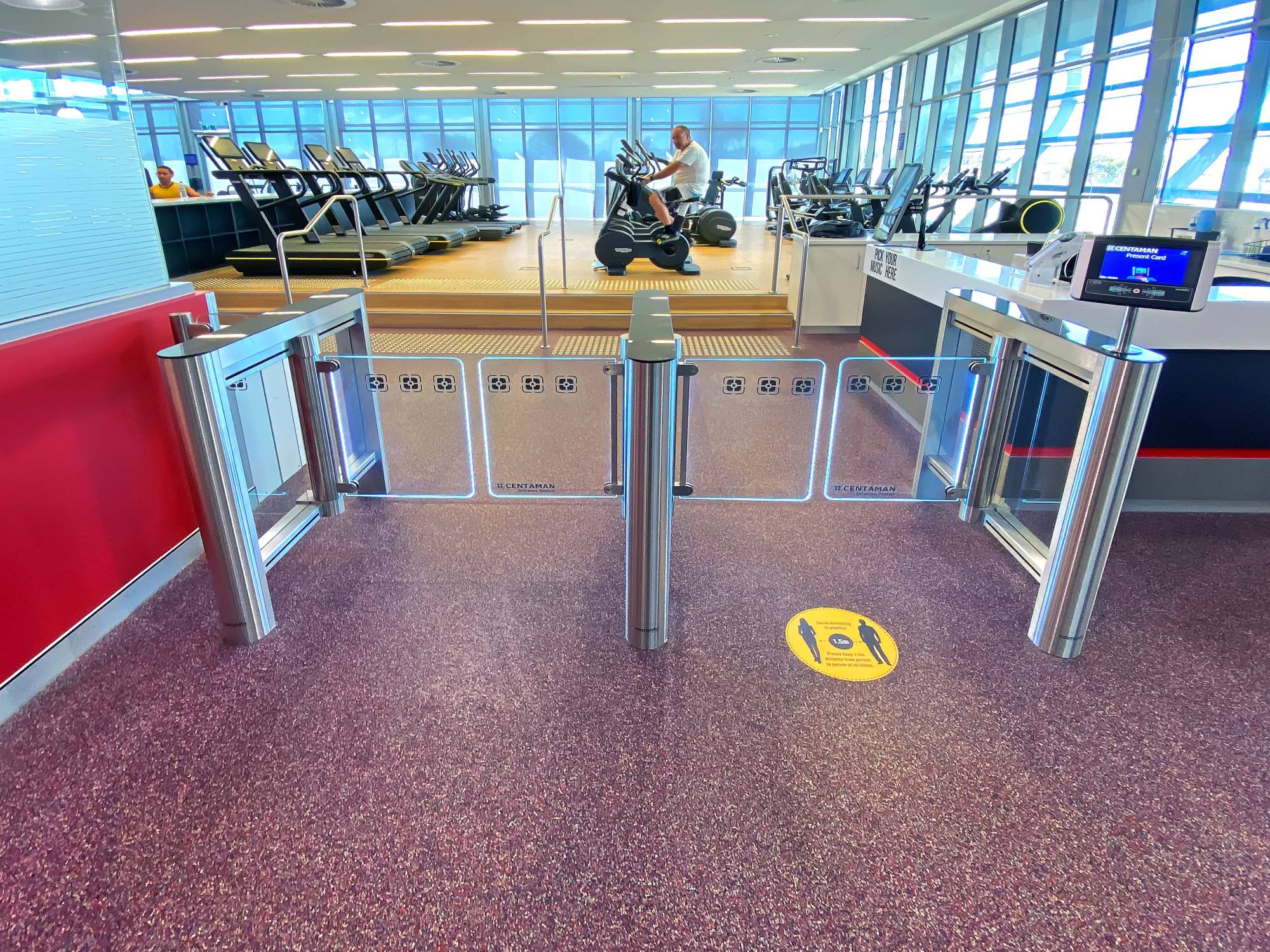

  • Leisure and aquatic centres
  • gyms
  • corporate offices

Description

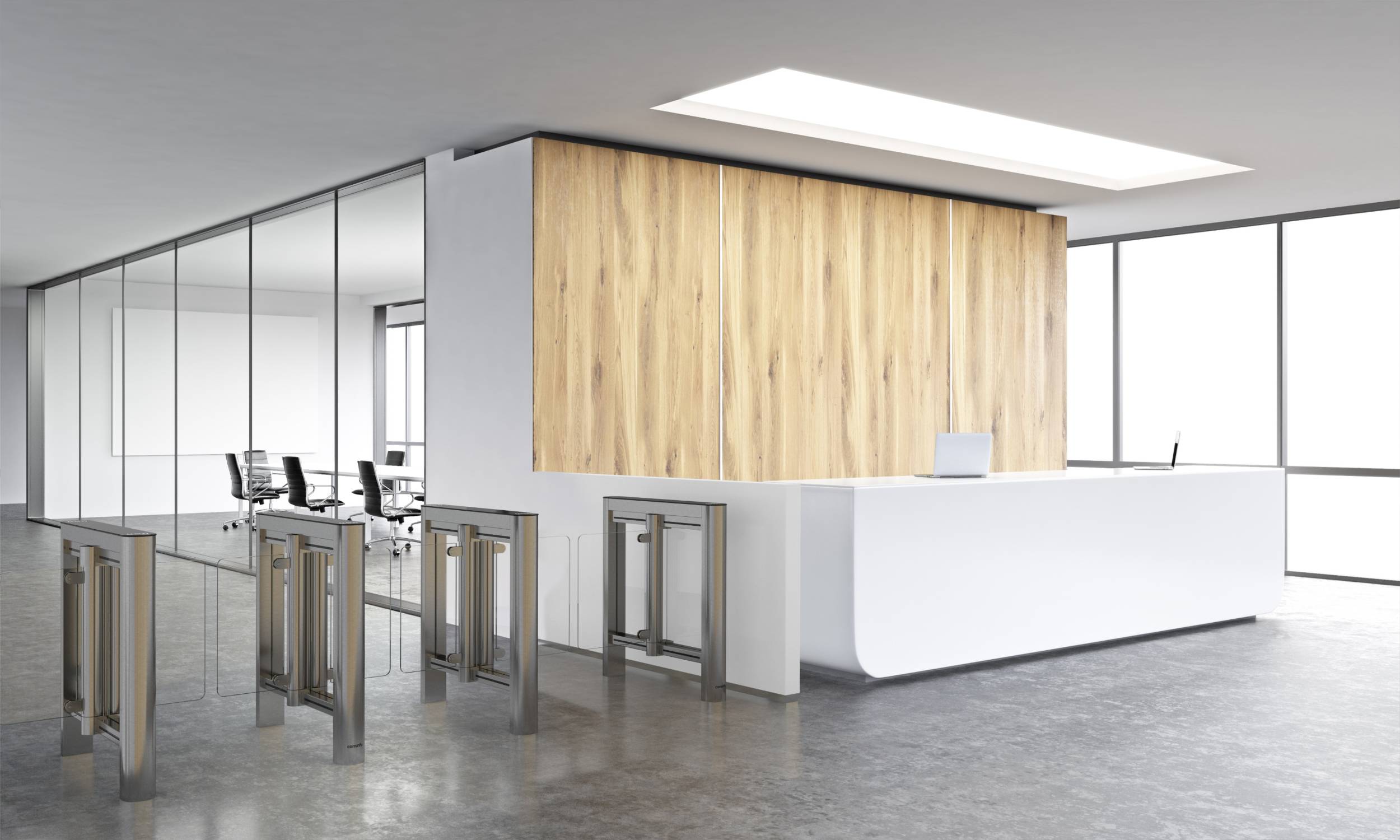

The EasyGate SG is a highly cost effective speedgate that combines glass barriers with optical detection to provide a fast throughput with high security. The EasyGate SG's glass barriers swing inside the pedestal after a valid card is presented, giving the authorised user a clear lane to pass through. These barriers quickly close behind the authorised person to deter unauthorised entry or tailgating. This gate is available in square-edged cabinet profiles or rounded-edged profiles.


Safety is high on the agenda for this speedgate.

General information

Material

Stainless steel

Manufacturer guidance

Also available in polished 316 marine grade for corrosive environments. coloured stainless steel available as a cost option.

Shape

Rectangle

Warranty description

One year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers.

Thickness

8 mm.

Finish

-

Colour

Natural.

Surrounds

-

Type

Sheet metal.

Material

Stainless steel.

Rotation

Card In / Card out.

Card In / Free Exit.

Dimensions

-

Overall width

990 mm.

Overall depth

1000 mm.

1320 mm (Extended).

Overall height

990mm.

Passage width

550 mm

650 mm

750 mm

900 mm

920 mm

1000 mm

Manufacturer guidance

990 mm is DDA approved.

Control units

-

Device acceptance

Card reader.

Biometric controls.

Coin acceptance units.

Intercom.

Proximity detection devices.

Remote controls.

Operational voltage

12 V d.c.

Finish

-

Worked finish

Brushed.

Cabinet width

120 mm.

Accessible design

DDA compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Operating temperature

10°C to 50°C (with heater).

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

36 sensors detect tailgating and unauthorised entry.

Accessories

Smoked glass top.

Opening speed

0.7 seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator).

MeanTimeBetweenFailure

3,000,000 operations.

Operation:

Normally Closed.

Model

EasyGate SG 1000

EasyGate SG 1320

Profile

Cabinet: rounded edged

Cabinet: square edged
