Application

  • Corporate Offices
  • Government buildings.
  • Airports.
  • Leisure clubs
  • VIP Areas

Description

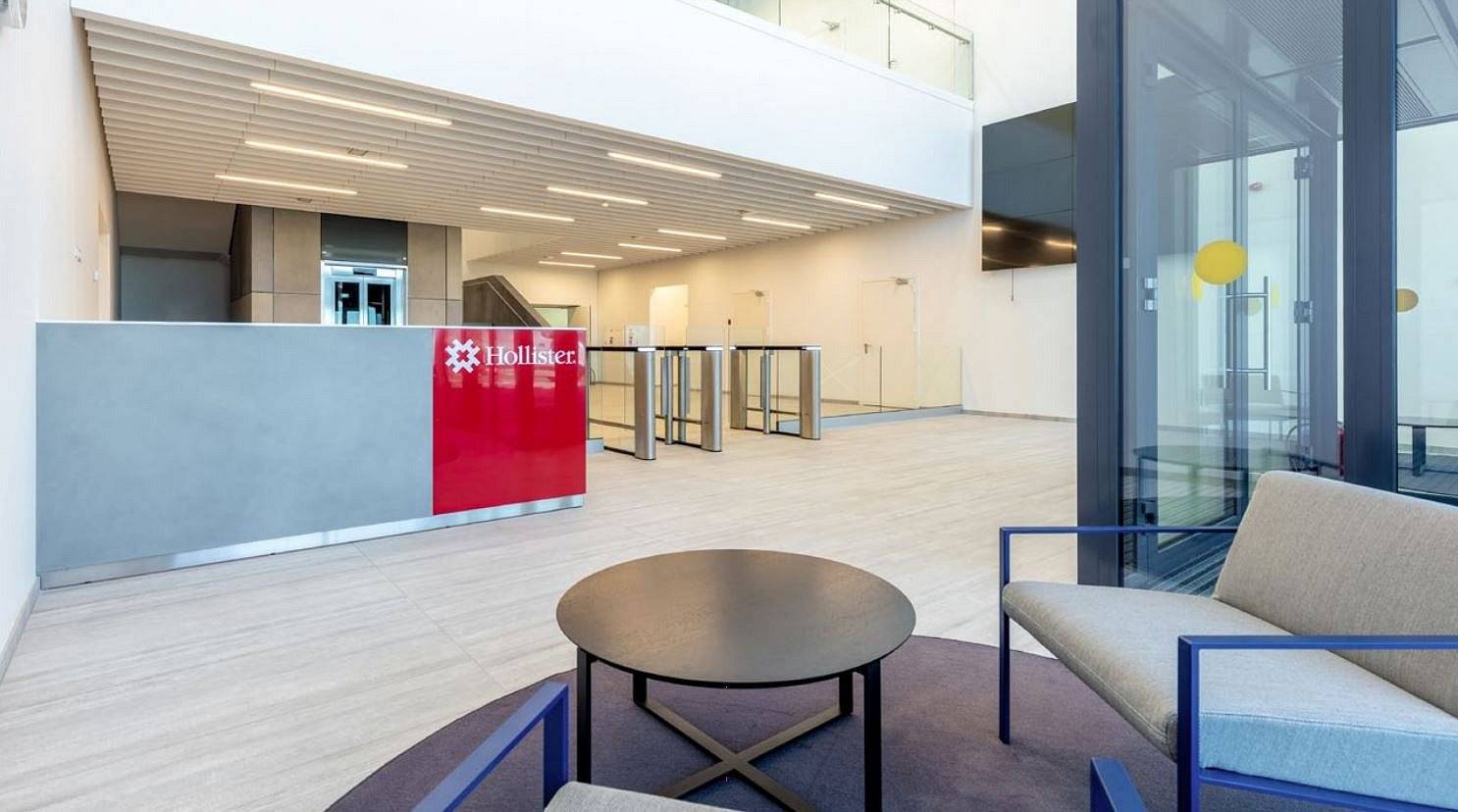

The Centurion EasyGate ELITE is our architecturally inspired swing barrier speedgate designed to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from an authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The swing barrier design ensure the same narrow pedestal can be used for both standard width and DDA lanes.

General information

Warranty description

One year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers.

Thickness

8 mm.

Finish

-

Colour

Natural.

Surrounds

-

Type

Sheet metal.

Material

Stainless Steel (304 Brushed).

Manufacturer guidance

coloured stainless steel as a cost option.


316 stainless steel - Marine grade. RAL powder coat paint finishes.

Rotation

Card In / Card Out

Card In / Free Exit

Operation

Electrical.

Manufacturer guidance

Doors will default to open in a fire emergency.

Dimensions

-

Overall depth

1400 mm.

Overall height

990 mm.

Manufacturer guidance

Pedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm.

Passage width

550 mm

650 mm

750 mm

900 mm

1000 mm

1100 mm

Manufacturer guidance

Customisable between 500 mm and 1100 mm.

Control units

-

Device acceptance

Biometric controls.

Card reader.

Coin acceptance units.

Intercom.

Proximity detection devices.

Remote controls.

Operational voltage

230 Volts operational voltage. Control electronics 12 Volts DC.

Finish

-

Worked finish

Brushed.

Accessible design

DDA compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Operating temperature range

10°C to 50°C (with heater).

Base options

Anti-climb pressure sensors.

Expanded alarm output with WAV player to record messages (Alarm alerts / invalid card warnings).

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

30 IR sensors detect tailgating and unauthorised entry.

Accessories

Smoked glass top.

Manufacturer guidance

Colour glass top options (Low Iron glass with custom paint finish).

Opening speed

0.7 seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator).

MeanTimeBetweenFailure

3,000,000 operations.

Operation

Normally closed.
