Application

Office and commercial use.

Description

The Centurion EasyGate is our latest retracting barrier speedgate designed ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The new elliptical shaped pedestal streamlines any installation.

General information

Warranty description

Three year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers.

Thickness

8 mm.

Finish

-

Colour

Natural.

Surrounds

-

Type

Sheet metal (304 Brushed).

Manufacturer guidance

coloured stainless steel as a cost option.


316 stainless steel - Marine grade. RAL powder coat paint finishes.

Material

Stainless steel.

Rotation

Card In / Card out.

Card In / Free Exit.

Operation

Electrical.

Manufacturer guidance

Doors will default to open in a fire emergency.

Dimensions

-

Overall width

pedestal width: 330 mm.

Pedestal width 510 mm (Wide version).

Overall height

990 mm

Manufacturer guidance

Pedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm.

Passage width

550 mm

920 mm

Control units

-

Device acceptance

Card reader.

Biometric controls.

Coin acceptance units.

Intercom.

Proximity detection devices.

Remote controls.

Operational voltage

Power supply: 230 Volts. Control Electronics: 12 Volts DC.

Finish

-

Worked finish

Brushed.

Finish:

Top cover: Stainless Steel.

Manufacturer guidance

coloured stainless steel as a cost option.


316 stainless steel - Marine grade. RAL powder coat paint finishes.

Accessible design

DDA compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

40 IR sensors detect tailgating and unauthorised entry.

Opening speed

0.4 Seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator).

MeanTimeBetweenFailure

5,000,000 operations.

Operation:

Normally Closed.

Operating temperature

10°C to 50°C (with heater).

Model

EasyGate LG 1200 (Square Cabinet profile).

EasyGate LG 1800 (Rounded Cabinet profile).

BIM objects

Platform Compatible Version
Revit
-

1

Literature

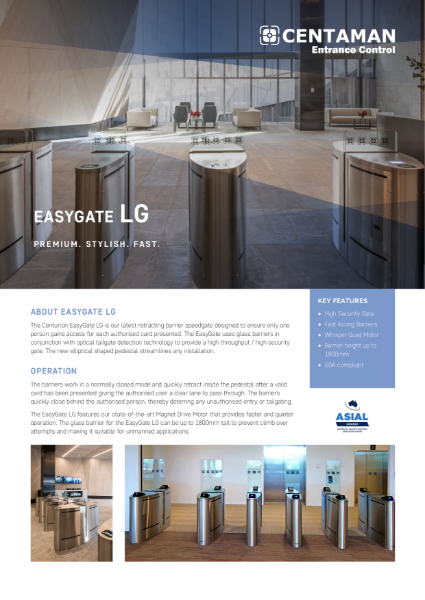

EasyGate LG Brochure

EasyGate LG Brochure

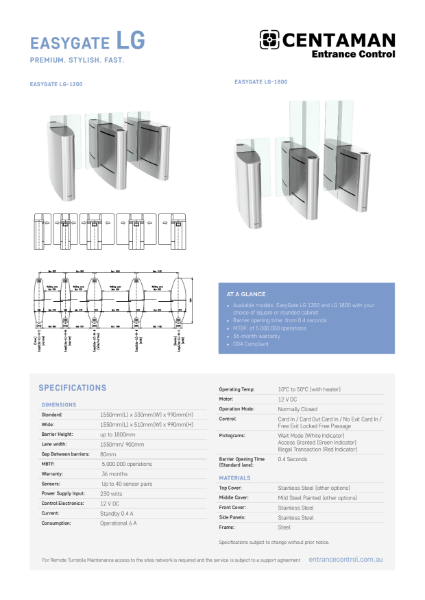

EasyGate LG - Technical Specification

EasyGate LG - Technical Specification
