Angled standing seam systems are used in the facade sector and for cladding small surfaces such as fascias, upstands and parapets. They are particularly suitable for visually separating roof and facade surfaces thanks to their height of approximately 25 mm and a seam width of approximately 12 mm. They can be installed horizontally, vertically and also diagonally.

The panels can be delivered with ready-made profiles or bevels or can be produced on the construction site using mobile roll formers.

Angled standing seams are distinguished by particularly low material stresses. In contrast to double standing seams, only one side is closed using a machine or by hand.

Features and benefits:

Small and large surfaces can be emphasised or given striking segmentation patterns.
Angled standing seams can be installed vertically and horizontally using a selection of different panel lengths and widths.
They can be installed on cross joints or half-staggered cross seams.
Tapered, concave or convex surfaces can be reliably clad with ease.
Cradle to Cradle Certified® Bronze (CLASSIC and prePATINA).
EN 15804 EPD (CLASSIC and prePATINA).

System build-up

Interior finish
Vapour control layer
Timber studs or metal frame (gaps between fully filled with insulation)
Vapowall breather layer
Battens to give vented air space (min 50 mm) or profiled deck
Plywood (min 18mm) as per EN 636, EN 314
Vapozinc structured underlay
Clips and fasteners as per H74 710,715,720, and 750 and Rheinzink recommendations
Rheinzink Angle seams

General information

Installation all as per Rheinzink recommendations.

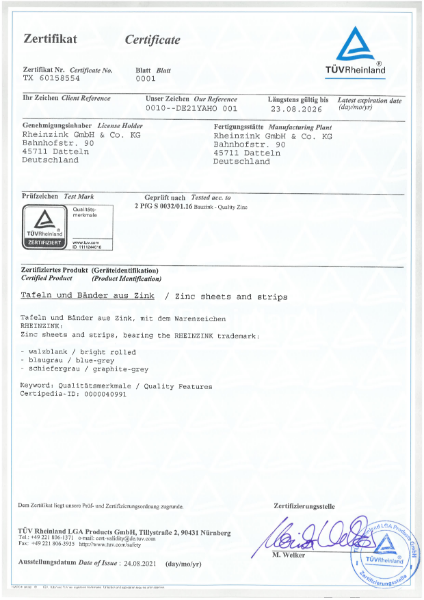

TUV Quality Report
