Greenline ® is a colour-coated steel external rainwater drainage system. The components of the GreenLine ® Gutter System are constructed from the highest quality GreenCoat ® RWS' steel, which is manufactured by Swedish Steel SSAB. It is covered from both sides with a strong 35 μm layer of paint, and long-term anti-corrosive resistance is ensured by the 0.6 mm-thick steel core, plated on both sides with a layer of zinc (275 g/m²).

The optimum thickness of paint coating ensures good resistance to wear and weather effects, and it also means smart use of natural resources. This coating is resistant to the aggressive chemical elements that are dissolved in the rainwater and to air pollution. Because of these features, GreenLine provides excellent protection against corrosion, and serves several times longer than other gutter systems. The system is in line with the European standard EN10169+A1.

Features and benefits:

Durability - GreenLine gutters and pipes are produced from the highest quality coated steel from SSAB, so they are more durable and more resistant to scratches and varied weather conditions. The multi-layer coating GreenCoat ® RWS ensures excellent resistance to corrosion elements, which extends the life of the system. GreenLine comes with a 30-year warranty.
Material - A1 fire rated.
Simple and easy installation. No leaking connections with rivets or screws. Installation, repairs and maintenance can be carried out without any specialised equipment or tools.
Completeness and compatibility - GreenLine is 100% complete and fully compatible with Scandinavian gutter systems. When replacing any parts of the system, you can purchase GreenLine products and connect them to an existing Scandinavian gutter system, already installed on the building.

Finish:

The GreenCoat ® RWS coating used in making GreenLine components is unique since its outer layer of paint contains small polymethyl-methacrylate (PMMA) polymer particles, also known as 'Plexiglass'. They make the painted surface particularly hard and resistant to external damage. Therefore, the system has significantly more resistance to friction loads, which could affect the components (e.g. installation, cleaning, frozen snow). Thus, this coating maintains its initial colour and brightness over the years.

Components:

Half round gutter 2400 mm, round rainwater pipe 2400 mm, half round gutter fascia bracket, half round gutter rafter bracket, half round gutter internal corner, half round gutter external corner, internal corner - special angle, external corner - special angle, half round gutter stop end, half round gutter drop outlet, half round gutter joint, round pipe 60° bend, round rainwater pipe 1000 mm, round pipe bracket, round pipe y-branch, round pipe water diverter, round pipe shoe.

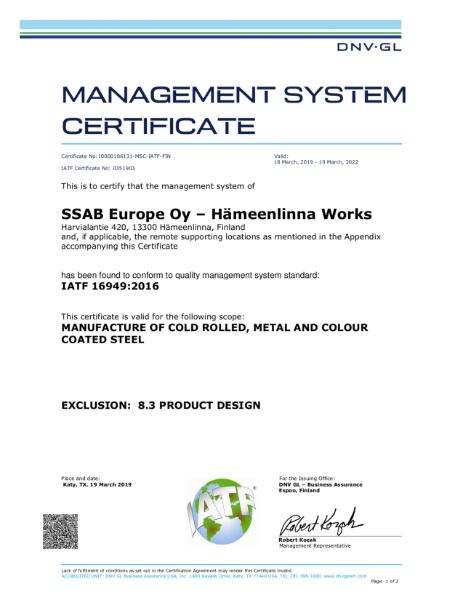

SSAB IATF 169492016
