Wall or ceiling mounted, single channel track for light to medium weight curtains, up to 65 kg in weight, designed for domestic and contract applications. The track can also be recessed into the ceiling using custom recess profiles and wedges.

Features:

Standard profiles can be bent to 250 mm radius (minimum); recessed fixing profiles can be bent to a 500 mm radius (minimum).
Stacking: Multiple and asymmetric applications.
Supplied complete with motor connected.
Curtain travel speed: 210 mm/ second.
Compatible with Wave, a contemporary curtain heading system which allows curtains to hang in a continuous wave which is smooth, simple and elegant.

Track features:

Patented roller glider.
Patented wax coating.
Brushless motor.
‘Touch and Go’ manual start.
Manual override in case of power failure.
Two motor speeds (21 cm per second or 15 cm per second).
Bendable recess profile.
Motor can be mounted in many different directions and positions.
Move App for operation via tablet or phone.

Motor/ Features:

Ref 9060:

Suitable for all common home automation and bus systems.
Switching by the mains group – no relays required.
Switching by low voltage inputs group (maximum 12 motors) and individual.
Mains 230 V simultaneous or individual operation.
Two programmable scenes (intermediate stops).
Standard status LED indicator.
Can be stopped at any position.
Silent Gliss radio control systems Ref 9960 OR Ref 0450.

Positioning:

Motor can be mounted in four positions either above or below the track.
Motor can be hidden by curtain or can be positioned above track profile in suspended ceilings; consult manufacturer for details.

Standard Components:

Track Ref 10580.
Motor 100–250 V a.c.: Ref 9060.
Control systems 9940 or 0450.
Belt Ref 10825, Belt return set Ref 10819, Cover ref 10581; Mask pair stack Ref 10836; Master carrier set Ref 10822; Belt return set Ref 10819; Case holder Ref 10817; Pilot runner set Ref 10828; Pilot runner arm Ref 10837; Roller glider Ref 10840; Overlap arm straight Ref 10820; Overlap arm bent Ref 10821; Overlap arm support set Ref 10826.

Fixing:

Track fixings are required at 300–600 mm centres, depending on the curtain configuration.
Fix nylon ceiling clamps Ref 3004 to ceiling.
Fix direct through the profile with mounting support plate 10865 and profile protect 7002.
Fix to wall with brackets 3134-9 and bracket 3041.
Fix in recess with recess profile 10862.

Fixing brackets:

Ceiling fix with clamp Ref 3004 – with end fixings 100 mm from end of track; higher edge of profile to room side.
Ceiling fix direct through profile with mounting support plate 10865/profile protector 7002 with end fixings 100 mm from end of track; higher edge of profile to room side.
Recessed fix with recess profile Ref 10862 and fixing wedges Ref 5118 – at 800 mm centres; end wedges to be positioned 200 mm from ends of track.

Switch control:

All electric controlled systems can be controlled by a white plastic wall mounted switch. When using fixed switches only, where more than the switch is needed to operate systems individually, the low voltage control facility on the motor itself should be used to provide easier, safer and more economic installations.

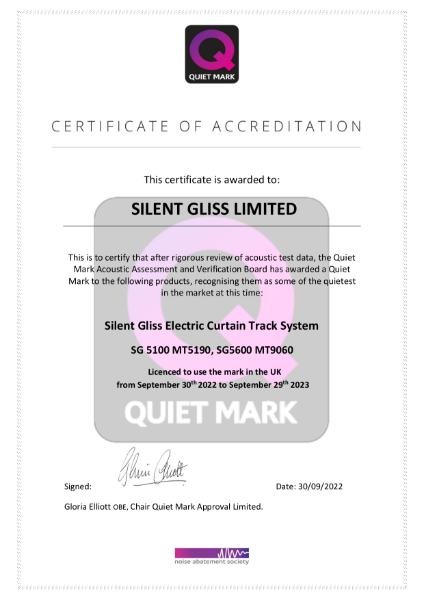

Silent Gliss Electric Curtain Track Quiet Mark Certificate 2022
