Coated mineral wool board used to reinstate the fire resistance performance of wall and floor constructions where they have been provided with apertures for the penetration of single or multiple services. The panel is supplied coated on both faces. It is cut to size and friction fit into the aperture around the services.

PFC Corofil Coated Panel System is available in 1200 x 600mm panels, 50mm thick with a density of 140 kg/m³. PFC Corofil Acoustic Intumescent Sealant is required to seal all joints and junctions during the sealing process.

Features and benefits:

• Tested to EN 1366-3

• Provides fire resistance performance of up to 120 minutes integrity and insulation

• Can be installed in apertures up to 730mm wide and 1200mm high or 600 x 600mm depending upon the application

• For use with plastic pipes, metallic pipes, cables, cable trays and cable ladders

• 3rd party certification; UL-EU-01169-CPR

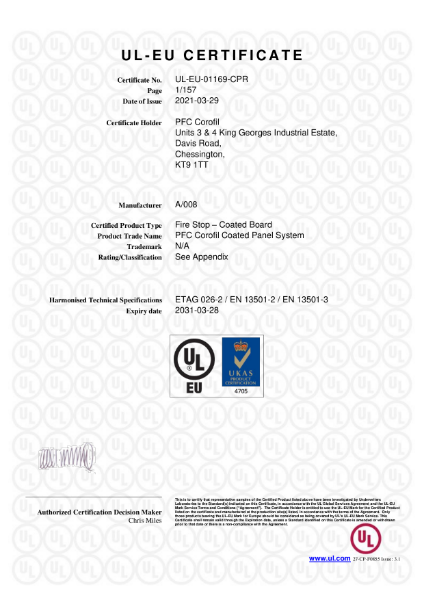

PFC Corofil Coated Panel System CCPS - UL-EU Certificate: 01169-CPR
