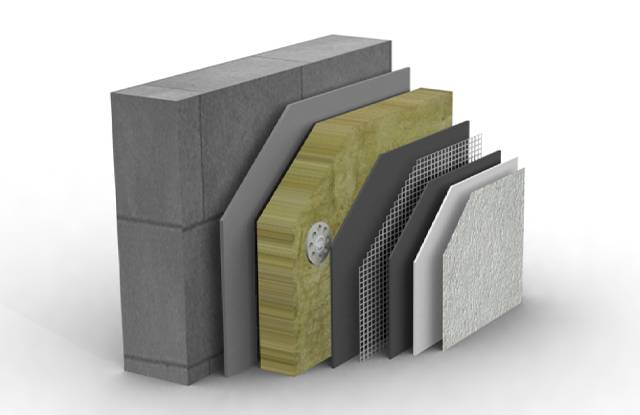

High-performance mineral fibre external wall insulation (EWI) system comprising of non-combustible Euroclass A1 insulation, reinforced base coat and Permarock Silicone^Ultra K-Finish. The system achieves Euroclass A2-s1,d0 (EN 13501-1).

Permarock Mineral Fibre external wall insulation (EWI) systems are fire-safe, high-performance thermal insulation systems suitable for application to any building including relevant buildings as defined in the Building Regulations. Systems are suitable for use at any height and in proximity to any boundary.

Permarock mineral fibre (EWI) systems can be applied onto walls of dense or no-fines concrete, brickwork, blockwork, or suitably sheathed light steel frame or timber frame construction, in any geographical location including those classified as having very severe exposure to wind-driven rain.

Permarock Silicone^Ultra K Finish is a high-performance exterior through-colour textured render based on a hybrid binder system of organically crosslinked nano-quartz particles and silicone emulsion. It is a lightweight, water-repellent finish with excellent water vapour permeability and incorporates photo-catalytic particles which actively break down dirt particles enabling them to be washed from the surface under normal weathering. Permarock Silicone^Ultra K-Finish resists aggressive air-borne pollutants and provides enhanced resistance to dirt pick-up and contains a preservative against coating deterioration due to algae and fungus.

Features and benefits:

Suitable for all buildings including 'Relevant Buildings' as defined in the Building Regulations, with a storey height above 11m.
Excellent fire performance: Non-combustible (Class A1) mineral (stone) fibre insulation - Fire breaks are not required.
A2-s1,d0 reaction to fire classification (EN 13501-1).
No restrictions on proximity to boundaries.
Adhesively bonded and mechanically fixed insulation.
High resistance to wind loads.
Mechanically anchored reinforcement layer: Provides enhanced resistance to wind loading and additional structural stability in a fire.
High impact resistance.
Low embodied energy.
Thermal conductivity: 0.036–0.039 W/m·K (depending on insulation specified).
Permarock Silicone^Ultra K-Finish is available in a range of over 500 colours with the highest binder stability (Class A resistance to chalking) and colour retention (Group 1 light fastness/colour stability).
Ecopoints score of 0.10 (m²) - 'Excellent' rating.
Acoustic benefit over other insulant types.
Has a working design life of in excess of 30 years.

Design considerations:

U-value calculations can be carried out for each project to determine the thickness of insulation required to achieve particular thermal performance requirements.
For high-rise buildings, a wind load assessment should be carried out by a suitably qualified structural engineer and the results should be provided to Permarock to enable an optimised fixing arrangement to be provided.
Contact Permarock to discuss your proposed design to enable the manufacturer to assist you in specifying the correct system and component parts.
Further information can be obtained from Permarock's Technical Hub

Beads and trims:

A full range of beads, trims, profiles and seals is available to enable the system to be interfaced with other building elements.

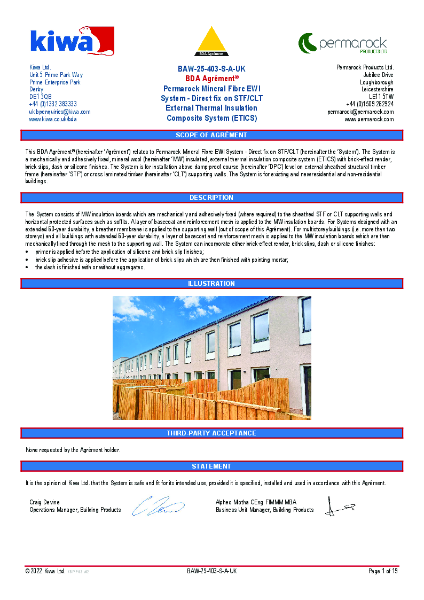

Permarock Mineral Fibre EWI System - Direct fix on STF/CLT
