The FlowCon K series are designed as a constant flow valve which maintains a specific flow rate independent of pressure fluctuations within a hydronic heating or cooling system. FlowCon K is primarily designed for use in terminal balancing.

Features and benefits:

Temperature rating: -30°C to +120°C.
Elastomers: EPDM.
Automatic balancing, the correct flow rate for each circuit is achieved automatically.
Dynamic balancing, the correct flow rate is maintained as each valve compensates for pressure fluctuations in the system.
Fewer total valves used in each project.
Easily accessible insert for flow rate changing or maintenance.
Accuracy of ±5%.
Pressure/temperature measurement plugs for verifying operating pressure differential range.

-FLOWCON 1/2″ – 1 1/2″:

Size range: 15, 20, 25, 32 and 40 mm, female threaded.
Pressure rating 25 Bar.
Flow rate range: 0.021–2.78 L/s.
Body materials: Forged brass ASTM CuZn40Pb2;DZR brass CW602N CUZn36Pb2AS.
Insert: AISI type 304 stainless steel, AISI type 17-7 PH stainless steel spring.
Flow rate range: 0.021–2.78 L/s.

-FLOWCON 1 1/2″ – 3″:

Size range: 40, 50, 65 and 80 mm, female threaded.
Pressure rating: 16 Bar.
Body materials: Forged brass ASTM CuZn40Pb2 50, 65 and 80 mm; DZR brass CW602N CuZn36Pb2AS.
Insert: AISI type 304 stainless steel, AISI type 17-7 PH stainless steel.
Flow rate range: 0.757–10.10 L/s.

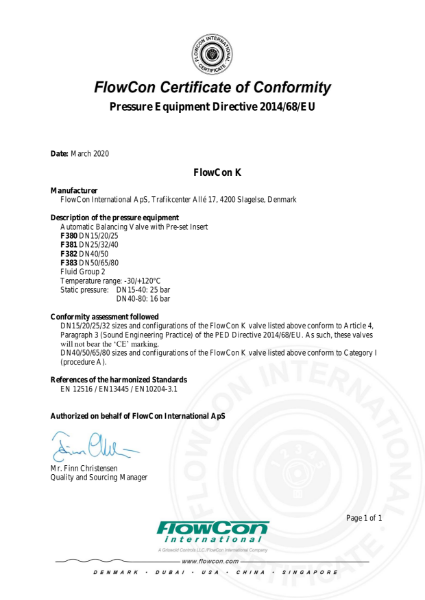

FlowCon K ABV PED Certificate
