Environmental:

Kingspan Insulated Panels produced in the UK and Ireland are certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Good’. QuadCore® Insulated Panel systems have Environmental Product Declarations in accordance with the requirements of EN 15804 + A2: 2019.
Facilities located in Kingscourt, Holywell and Sherburn generate renewable energy onsite which contributes to that sites energy mix.
Kingspan Insulated Panels procure steel that is made from 15 – 25% recycled content. Kingspan insulated panels directly contribute to BREEAM® / LEED® credits. Recycled content calculations are available for all QuadCore products via technical services.

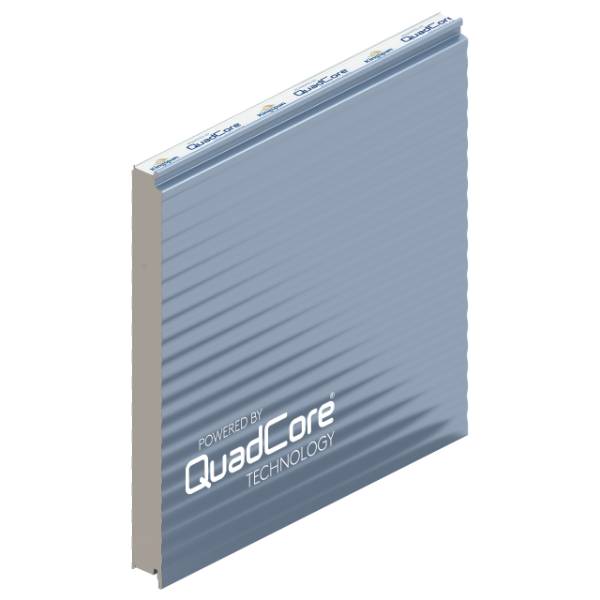

To access the EPD for QuadCore® AWP Supreme Wall Panel AWP-S, please click here (https://www.epdhub.com/).

Kingspan QuadCore:

QuadCore is a self-blended, micro cell structured, insulation core unique to Kingspan that delivers the highest performance of any closed cell insulation core across four factors: fire, thermal, environmental & longevity.
The QuadCore insulation used in QuadCore® AWP-S wall panel has a thermal conductivity of 0.018 W/m.K.

Quality and Durability:

Kingspan insulated panels are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with:

BS EN ISO 14001 panels are manufactured under Environmental Management System Certification.
BS EN ISO 9001 standard, ensuring long term reliability and service life.
BS EN ISO 50001 Energy Management System Certification.
BS EN ISO 45001 Occupational Health and Safety Certification.
BS EN ISO 37301 Compliance Management Systems
CE marked to BS EN 14509: 2013.

Certification and Testing:

Reaction to Fire

QuadCore AWP-S wall panel is classified B-s1,d0, when tested on the internal face of the product, according to the European Reaction to Fire classification system (Euroclasses) EN 13501-1: 2018 under the certified name KS1000AWP-S 150mm when using the following internal liners:

CLEANsafe 15, CLEANsafe 25, CLEANsafe 55, CLEANsafe 120 and AQUAsafe 55.

Please contact Kingspan Tech-eXchange for information relating to the external face.

Fire Resistance:

The QuadCore® AWP-S fire resistance classifications are subject to orientation, method of assembly and steel coating.

The following periods of fire resistance are achievable with the AWP-S:

Vertical orientation, maximum panel span 6000 mm, 60 mins integrity, 60 mins insulation tested inside to outside
Vertical orientation, maximum panel span 4000 mm, 60 mins integrity, 60 mins insulation tested outside to inside
Horizontal orientation, maximum panel span 4000 mm, 60 mins integrity, 60 mins insulation tested inside to outside

Please contact Kingspan Tech-eXchange for project specific installation details.

Kingspan Tech-eXchange:

Kingspan Tech-eXchange is our dedicated team supporting you during the conception, design and installation of your project using our building envelope solutions, Kingspan Tech-eXchange supports our customers using the latest modelling and design software packages.

QuadCore Assured System Warranty:

25 years thermal performance.
25 years fire performance.
25 years structural performance.
25 years environmental performance.
Up to 30 years coating performance.
25 years warranty on system accessories.

Please contact Kingspan Tech-eXchange or refer to the ‘QuadCore Assured’ brochure for a list of accessories covered by Kingspan.

Kingspan Planet Passionate:

Planet Passionate is Kingspan’s ambitious 10 year global sustainability programme which aims to impact three big global issues :

Climate change
Circularity
Protection of our natural world

By setting ourselves challenging targets in the areas of energy, carbon, circularity and water, we aim to make significant advances in the sustainability of both our business operations and our products.

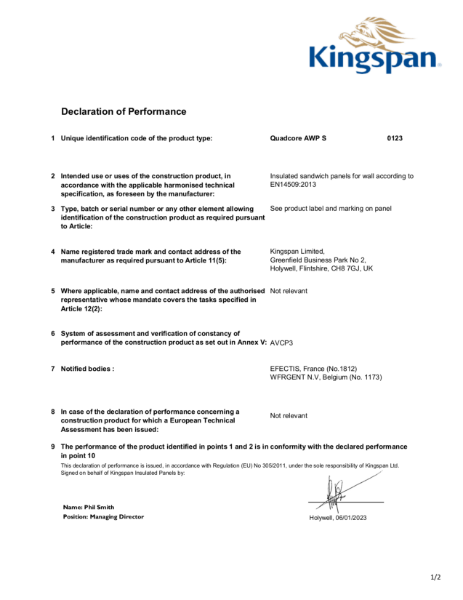

Declaration of Performance QuadCore® Kingspan AWP-S Wall Panel
