Siderise CW systems are manufactured using a method that provides resilient lateral compression. This facilitates installation, ensuring the requisite tight fit and enhancing the fire integrity of the product.

Throughout the range, the materials comprise a one-piece product with a pre-compressed non-combustible stone wool core. The products also have integral aluminium foil facings to provide an overall Class A1 rating (to BS EN 13501-1:2018 “Fire classification of construction products and building elements.”).

The systems can offer tested fire resistance options ranging from 30 mins to 3 hours (3 hours to BS EN 1364-4:2014 “Fire resistance tests for non-loadbearing elements.” only) and can accommodate void widths up to 400mm. In addition to providing an effective seal against the passage of fire, the products are also acoustically absorptive.

Features and Benefits:

Comprehensively tested: CW-FS Firestop is a key component of our CW Perimeter Barrier Systems that have been comprehensively tested to EN 1364-4, ASTM E2307 and ASTM E2874 curtain wall fire test standards. Also tested standalone to BS EN 1366-4:2006+A1:2010 standard, in both vertical and horizontal orientations.
Fire resistance: CW-FS120 and CW-FS180 are certified to deliver 2 hours (E 120 / I 120) and 3 hours (E 180 / I 180) fire resistance respectively.
CCPI assessed status: CW-CB30, CW-FS60, CW-FS120 and CW-FS180 have all achieved CCPI assessed status. This provides greater confidence that the product information we publish about these products is clear, accurate, up-to-date, accessible, and unambiguous — and is checked and managed by competent people.
60 year design life: To confirm in-application durability and robustness in its ability to maintain its form and performance when exposed to specific use conditions, CW-FS Firestop has been put through EOTA Technical Report 024 ‘Type X’ accelerated age testing - the harshest category, which replicates exposure to rain, UV, high temperatures, and frost and thaw cycles.
CE marked with movement capability +/- 10%: CW-FS Firestop has passed the relevant European Technical Assessments for CE marking (ETA 21/0297). This includes undertaking movement cycling to simulate real-world façade deflection before fire testing to BS EN 1364-4. This gives the most relevant and robust test evidence for containing fire in non-fire-rated curtain wall systems.
Third-party verified EPD: The environmental impact of all products in the CW-FS Firestop and CW-CB Cavity Barrier range has been assessed through a lifecycle assessment (LCA) and is detailed in a third-party verified EPD (Environmental Product Declaration) created in accordance with BS EN 15804+A2:2019 and ISO 14025.

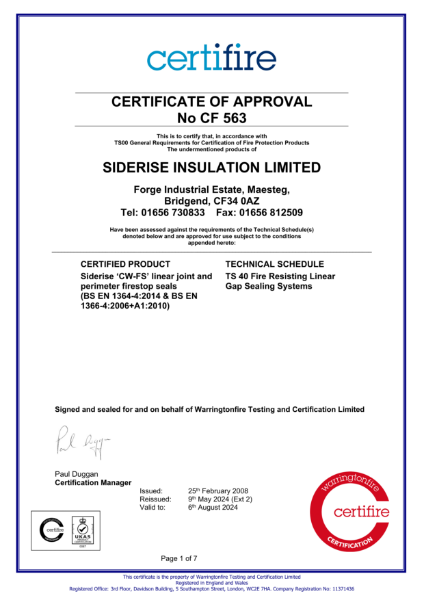

CF 563

Viewing archived certificate data
