The HFP AP-AS is a powerful and versatile two loop Analogue Addressable Fire Control Panel. HFP AP-AS supports Hochiki ESP loop drivers, which are all capable of providing up to 400 milliamps of loop current for the most demanding applications.

An integral 3 Amp power supply and temperature compensated battery charger provides ample power for the two, 1 Amp rated standard sounder outputs, loop powered sounders and other devices. HFP AP-AS is also available as a HFP AP-ASL version offering a very cost effective solution for smaller standalone installations requiring

only one detection loop.

The HFP AP-ASL version does not support the following: Second loop, Printer output, Networking and connection of I/O boards or the HFP AP-CRL repeater.

Feature and benefits:

16 zonal LED indicators.
2 programmable sounder circuits.
5 programmable inputs.
3 programmable relays.
3A power supply.
Large graphic display.
Keyswitch.
Real time clock.
Certified to EN54-2/ EN54-4.
Up to 512 additional programmable I/O via HFP I/O modules.
Powerful, network wide cause and effects.
Sensitivity adjustment and Drift Compensation.
Can be networked with HFP control panels.
Compatible with HFP and HFP AP-CRL repeaters.
Stores 500 last events in event log.
Dial up modem connection available.
Compact, stylish enclosure.
Installer friendly, removable equipment chassis.
Different language and character set variants available.
Fully EN 54-2 and EN 54-4 compliant improved front loading Printer option.
Mains supply fuse 1.6A 250 V.
Power supply DC rating 24V 3 Amps.
Aux 24V supply Fused at 500 milliamps.
Maximum Battery size 9Ah 12V (2 per panel) (non-networked).
Fault contact rating 30V DC1 Amp.
Fire contact rating 30V DC1 Amp.
Alarm contact rating 30V DC1 Amp.
Sounder output rating Fused at 1 Amp each.
Detection loop 400 milliamp output.

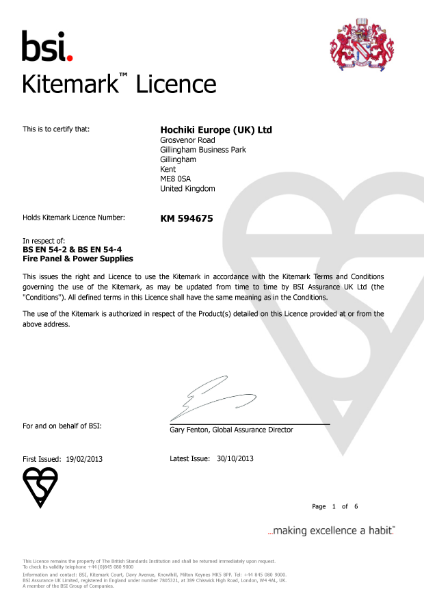

BSI Kitemark Licence | EN54-2 and EN54-4 | Devices: HFP AP
