ACS Azure II™ Bolt Ups are lightweight, brick-faced, prefabricated units that are manufactured offsite and supplied to projects with brick slips mechanically fixed to the stainless steel carrier units.

These units can be quickly and easily fixed to the slots provided in ACS masonry support systems to create various hanging brick soffit details. As the brick slips are mechanically fixed to the underside of a stainless steel unit ensuring the system attains an A1 fire rating. The stainless steel carrier units are designed, welded and fabricated in-line with BS EN 1090 and a certified Factory Production Control system and can therefore be UKCA / CE+UKNI marked under the guidance of the Construction Products Regulation.

Features and benefits:

A1 Non-Combustible.
BBA certified.
CCPI verified.
Suitable for all heights and types of building.
Accelerated weather tested: Saturated Freeze/Thaw; Bond Strength - Pre & Post Weathered; Impact Strength - Pre & Post Weathered.
Austenitic stainless steel grade 304 (1.4301), 316 (1.4404).
UKCA / CE+UKNI Marked.
100% mechanically fixed and resin free.

Options:

215 x 65 mm Stretcher Bond Soffit Bolt Up Unit: Courses in with facing brickwork and provides continuity with the stretcher/running bond pattern as it returns to the soffit on the underside of the reveal or return. Adjacent soffit units are designed to interlock together, providing seamless continuity of the brick bond once pointed.
102.5 x 65 mm Stretcher Bond Soffit Bolt Up Unit: Courses in with facing brickwork and providing continuity with the stretcher/running bond pattern as it returns to the soffit on the underside of the reveal or return. Adjacent soffit units are designed to abut with a nominal 10 mm joint providing seamless continuity between the face/soffit once pointed.
215 x 65 mm Header Bond Soffit Bolt Up Unit: Provides a header detail at openings, returns and reveals to create a feature or detail to differentiate between the facing brickwork, normally a stretcher/running bond pattern. Adjacent soffit units are designed to abut with a nominal 10 mm joint providing a seamless face/soffit effect once pointed.
102.5 x 215 mm Soldier Bond Soffit Bolt Up Unit: Provides a soldier course detail at openings, returns and reveals to create a feature or detail to differentiate between the facing brickwork, normally a stretcher/running bond pattern. Adjacent soffit units are designed to abut with a nominal 10 mm joint providing a seamless face/soffit effect once pointed.
215 x 102.5 mm Rowlock Soffit Bolt Up Unit: Provides a header/rowlock course detail at openings, returns and reveals to create a feature or detail to differentiate between the facing brickwork, commonly a stretcher/running bond pattern. Adjacent soffit units are designed to abut with a nominal 10 mm joint providing a seamless face/soffit effect once pointed.
665 x 65 mm Stretcher Bond Special Soffit Bolt Up Unit: Courses in with facing brickwork and provides continuity with the stretcher/running bond pattern as it returns into the soffit on the underside of a masonry down-stand or beam. Adjacent soffit units are designed to interlock together, providing seamless continuity between the face/soffit once pointed. Special soffit units can be designed and fabricated to achieve almost any brick bond pattern to create soffits features and details of any size and layout.
Bespoke units: As well as the options listed, bespoke brickwork arrangements can be catered for to suit the building design. Please contact ACS for more details.

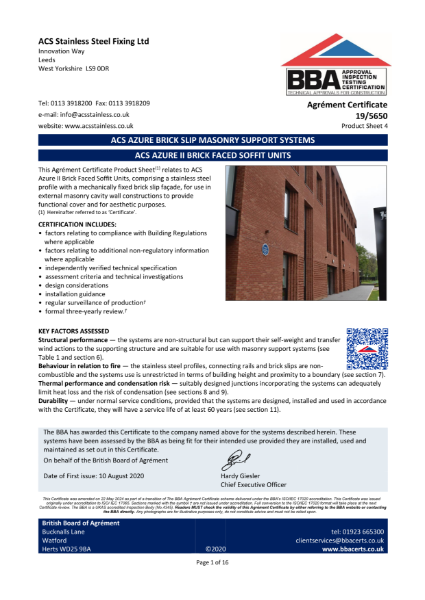

ACS Azure II Brick Slip Soffits BBA
