The automatic curtains are comprised of a carbon steel barrel and motor incorporating an attached fabric curtain. The barrel deflection conforms to the necessary British Standard BS 6323-5, the fabric can withstand temperatures in excess of 1000°C and the two section t shape bottom rail allows smooth operation of the curtain. The fire barrier shall be powered by an internal 24 V d.c electric motor that has all of the applicable safety standards.

Fully compliance-tested and include fail-safe features enabling the curtains to operate even if there’s a power failure.

The Flameshield fire curtains have the added benefit of good aesthetics which blend neatly with any venue’s aesthetic. End plates, guides and head boxes can even be finished with specialist RAL colours for a small additional cost.

Egress switches, access switches, obstruction warnings, and heat and smoke alarms are fully tested to the ancillary equipment Annex H as stipulated by BS 8524-1.

Features and benefits:

Gravity fail safe closes without mains power.
Internal battery back up
Provides smoke control.
Lightweight slimline compact design.
Two stage closing operation. Split drop and Delay Drop
Compliance tested to maintain building fire safety and integrity in accordance with BS 8524-1
Installed in accordance with BS 8524-2
Can be hidden neatly above the ceiling line to assist the building design and aesthetics.
Voice warning devices available.
Fully resets after fire test without the need for engineers to attend.
Low maintenance costs.
Timed delay closing.

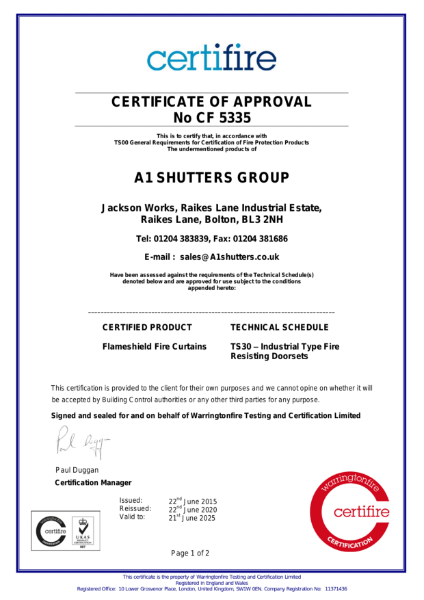

All curtains are tested and approved by Warrington Fire Research Centre and Exova. Tests are fully compliant and in accordance with BS 8524-1 / BS EN 1634-1 for fire and radiation (radiation and tenability replaces the insulation zone) and BS EN 1634-3 for smoke containment. The construction and manufacture is in accordance with Warrington test WF 341175 (deflection), WF 347098 (smoke) WF 399170 (motor test) WF 399421 (surface spread of flame, BS EN 476-6 and BS EN 476-7).
