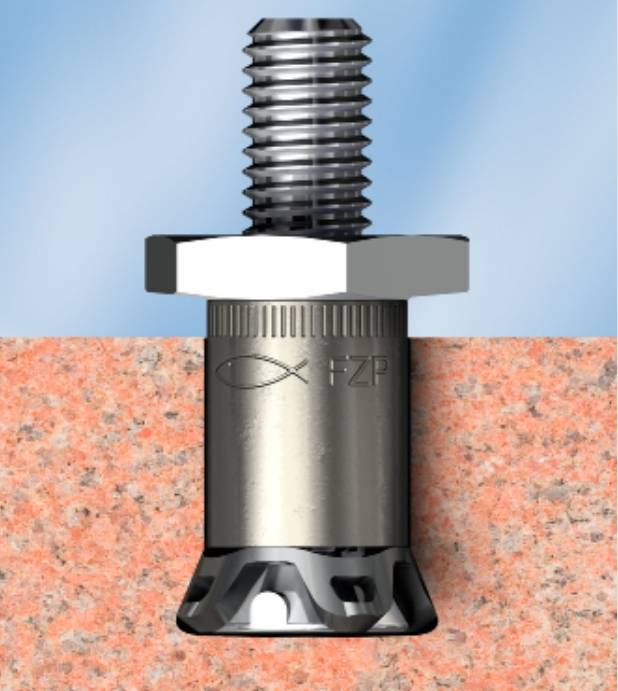

fischer Zykon-Panel Anchor FZP II-SO
fischer Zykon-Panel Anchor FZP II-SO
Range of undercut anchors for natural stone from 2 cm panel thickness.
Application
Undercut anchor for natural stone from 2 cm panel thickness.
Zykon-Panel Anchor FZP II-SO:

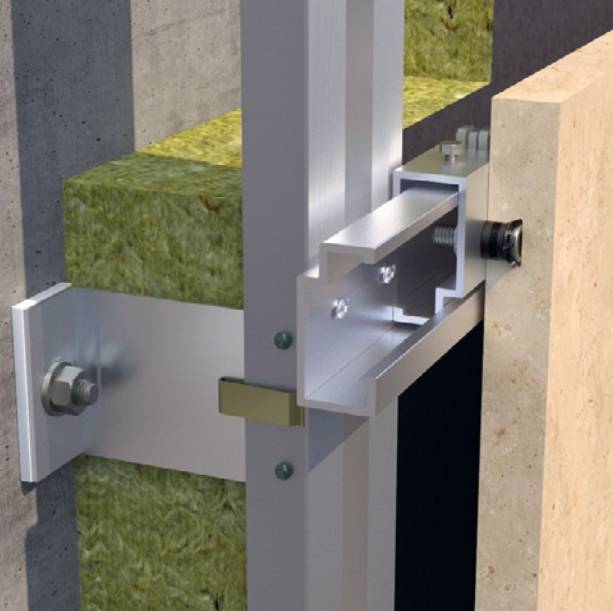

- Application with bracket systems or other attachment parts.
Zykon-Panel Anchor FZP II, Zykon-Panel Anchor FZP II-SO Carbon and Zykon-Panel Anchor FZP II Carbon:
- Application with reveal angle or other attachment parts.
Zykon-Panel Anchor FZP II-VS:
- Application with keyhole-type bracket or other "keyhole-type constructions“.
Description
Range of undercut anchors for natural stone from 2 cm panel thickness.
Special drilling machines from fischer are necessary for the drilling of the undercut hole. The anchor will be installed by a special fischer setting tool.
All anchors:
- Stress-free fixing in natural stone.
- Anchoring not visible from front of facade.
- Static optimized position of anchor.
- Higher collapse loads than traditional systems.
Zykon-Panel Anchor FZP II-SO:
- Compensating panel thickness tolerances by constant remaining wall thickness.
Zykon-Panel Anchor FZP II:
- Fast and easy installation of reveal.
Zykon-Panel Anchor FZP II-SO Carbon and Zykon-Panel Anchor FZP II Carbon:
- Economic and easy installation of reveal.
- Installation regardless of weather.
Zykon-Panel Anchor FZP II-VS:
- Compensating panel thickness tolerances by constant remaining wall thickness.
General information
Color | Silver Black |
Material | Metal Plastic |
Shape | Other |
Length | 12 mm 15 mm 17 mm 21 mm 26 mm |
Uniclass | |
CAWS | H92/120 Rainscreen cladding H51/110 Cladding H20/10 Sheet cladding H51/110 Cladding H20/150 Sheet cladding (attached to metal support systems) |
SKU Code | 512 144, 512 145, 512 146, 538 088, 513 226, 512 131, 512 132, 512 133, 512 134, 512 135, 512 136, 512 137, 512 138, 512 139, 512 140, 512 141, 512 142, 512 143, 511 977, 511 978, 511 979, 538 078, 511 966, 511 967, 511 968, 511 969, 511 970, 511 971, 511 972, 511 973, 511 974, 511 975, 511 976, 511 980, 512 147, 512 148, 512 149 |
Specification data - Undercut anchors
Certification | European Technical Approval ETA-11/0145. |
Material | Manufacturer's standard. |
Finish | Manufacturer's standard. |
Anchor length | 21 mm (M6); bolt projection: 9 mm. Guidance for specification option: Item number: 512 144. Drill hole Ø 11 mm. Anchorage depth: 12–16 mm. 21 mm (M6); bolt projection: 12 mm. Guidance for specification option: Item number: 512 145. Drill hole Ø 11 mm. Anchorage depth: 12–16 mm. 26 mm (M8); bolt projection: 12 mm. Guidance for specification option: Item number: 538 088. Drill hole Ø 13 mm. Anchorage depth: 15–21 mm. 26 mm (M8); bolt projection: 17 mm. Guidance for specification option: Item number: 512 146. Drill hole Ø 13 mm. Anchorage depth: 15–21 mm. 30 mm (M8); bolt projection: 13 mm. Guidance for specification option: Item number: 513 226. Drill hole Ø 13 mm. Anchorage depth: 15–25 mm. Manufacturer guidanceInstalled length. |
Thread diameter | Manufacturer's standard. Guidance for specification option: See Anchor length for options. |
Sustainability data
Material | Metal Plastic |
Literature
Literature type
fischer Zykon-Panel Anchor FZP II-VS datasheet
fischer Zykon-Panel Anchor FZP II-SO Carbon datasheet
fischer Zykon-Panel Anchor FZP II datasheet
fischer Zykon-Panel Anchor FZP II Carbon datasheet
fischer Zykon-Panel Anchor FZP II-SO datasheet
Façade construction for stone cladding
