Zykon panel anchors FZP II T PA Tergo+ - Undercut for Equitone Panels - Undercut Anchor
Verified by manufacturer today

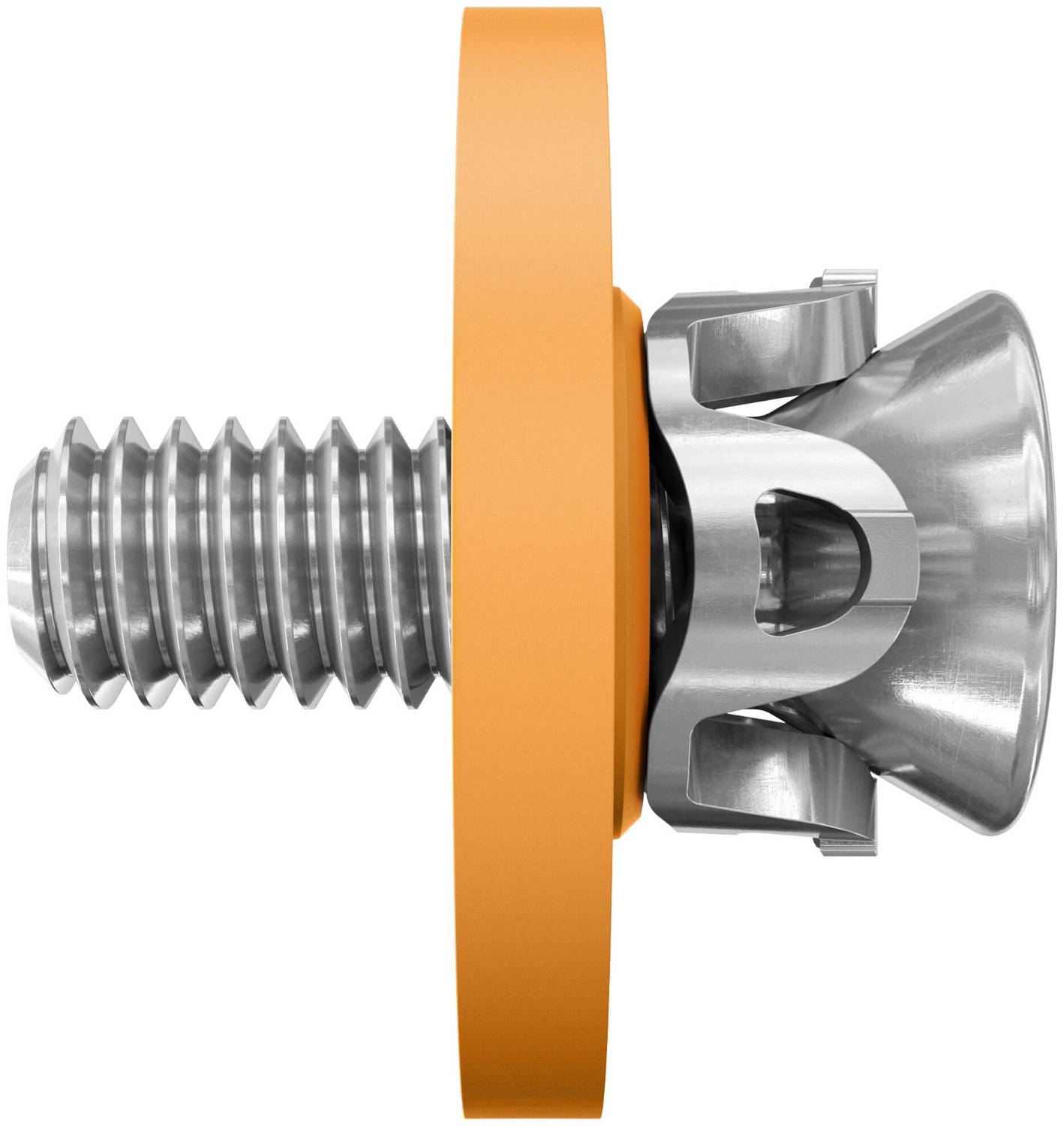

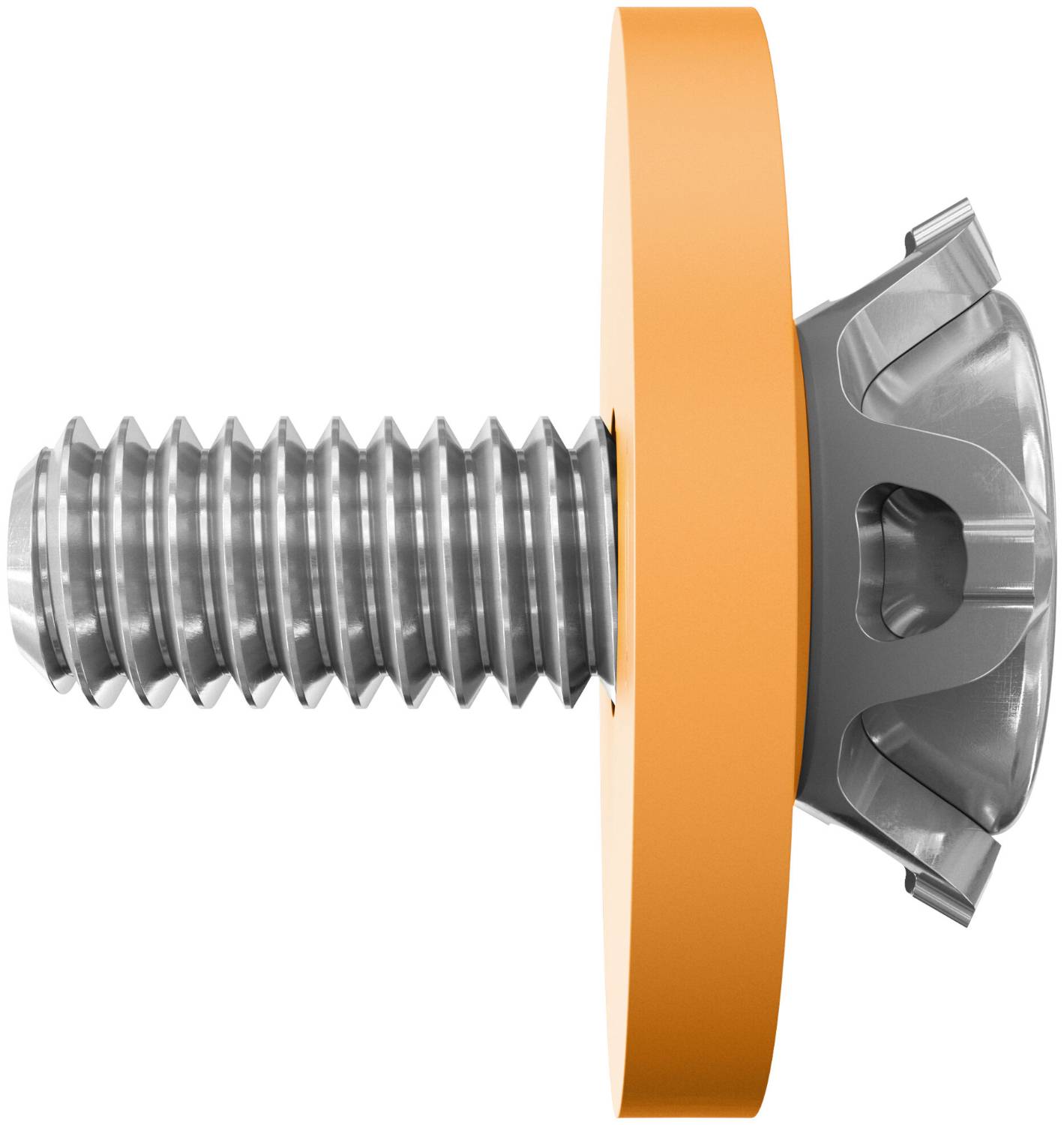

Tergo+ 11x5 M6/T/11 PA (orange)
Tergo+ 11x5 M6/T/11 PA (orange)
Undercut anchor for EQUITONE [linea], [tectiva], [materia], [natura] and [pictura] fibre cement. Application with bracket systems or other attachment parts.
Application
Undercut anchor for EQUITONE [linea], [tectiva], [materia], [natura] and [pictura] fibre cement. Application with bracket systems or other attachment parts.
Description
Undercut anchor for EQUITONE [linea], [tectiva], [materia], [natura] and [pictura] fibre cement. Application with bracket systems or other attachment parts.
Features and benefits:
- Fixings not visible from front of facade.
- Stress-free fixing.
- Statically optimised position of anchor.
- Large panel sizes possible.
- High load capability.
- Optimized for long-life.
- Independent of weather.
After making the undercut hole, the anchor is set simultaneously
with attachment parts with a power tool.
General information
Color | Silver Orange Red Yellow |
Material | Metal Plastic |
Shape | Other |
Length | 7.5 mm 8.5 mm 10.5 mm Manufacturer guidanceInstalled length. |
Uniclass | |
CAWS | H20/150 Sheet cladding (attached to metal support systems) H92/120 Rainscreen cladding H20/10 Sheet cladding H51/110 Cladding H51/110 Cladding |
SKU Code | 552 892, 552 893, 532 641, 532 642, 537 974, 532 642 |
Specification data - Undercut anchors
Certification | General building authority approval (abZ) Z-21.9-2051. |
Material | Manufacturer's standard. |
Finish | Manufacturer's standard. |
Anchor length | 7.5 mm. Guidance for specification option: Item number: 552 892. Drill hole Ø 11 mm. Anchorage depth: 5 mm. Manufacturer guidanceInstalled length. |
Thread diameter | M6. |
Bolt projection | 11 mm. |
Washer | Orange. |
Sustainability data
Material | Metal Plastic |
Literature
Tergo+ secret fixing flyer
