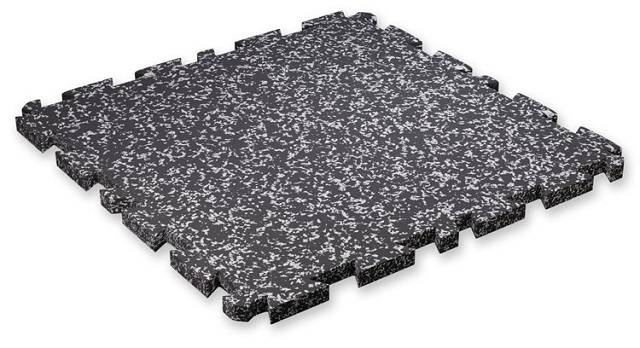

Zone-Flex Rubber Gym Tiles
Verified by manufacturer 5 months ago
The interlocking rubber tile is suitable where impact resistance, vibration and noise control are required within fitness, gym and training facilities.
Application
Suitable for fitness, gym and training facilities.
Description
The interlocking rubber tile is suitable where impact resistance, vibration and noise control are required within fitness, gym and training facilities.
Features and benefits:
- Eco-friendly - recycled rubber.
- Smooth, easy-to clean surface.
- Adhesive-free, quick installation.
- Available in a range of fleck colours.
- Sound, shock and impact absorption.
- Resilience and comfort to prevent injuries.
- Excellent choice for functional and free-weight zones which require a loose-laid, adhesive-free installation, perfect for temporary or permanent installations.
General information
Color | Red Blue Grey Black Manufacturer guidanceBlack rubber tile with Blue, Dark grey, Light grey, Red colour fleck options. |
Finish | Smooth Guidance for specification option: Smooth rubber surface with a colour decorative fleck. |
Material | Rubber Guidance for specification option: Recycled styrene-butadiene rubber (SBR) granules plus 15% ethylene propylene diene monomer, (EPDM) granules. |
Shape | Square Guidance for specification option: Tile with interlocking edges. |
Length | 1000 mm |
Width | 1000 mm |
Height | 10 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/120 Interlocking resilient floor tiling |
Specification data - Interlocking shock absorption panels
Material | Rubber. |
Recycled content | 100.Manufacturer guidance% recycled rubber. |
Dimensions | |
Plan size | 1000 mm. |
Thickness | 10 mm. |
Profile | Square edged. |
Interlocking Profile | Jigsaw locking system. |
Slip resistance | Technical Class DS - EN13893. |
Sliding properties | R10 - DIN 51130. |
Static coefficient of friction | Dry:>1.00 - ASTM D2047. |
ThermalConductivity | 0.121 W/m²K – EN12667. |
Thermal resistance | 0.067 m²k/W – EN12667. |
Tear strength | 17.8 kN/m – ASTM D624. |
Colour | Blue. Dark grey. Light grey. Red. |
Sustainability data
Material | Rubber Guidance for specification option: Recycled styrene-butadiene rubber (SBR) granules plus 15% ethylene propylene diene monomer, (EPDM) granules. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Manufacturer guidance% recycled rubber. |
Literature
Zone-Flex - Interlocking Rubber Tiles
