Zip HydroTap Classic Accessibility - Water Tap
Verified by manufacturer 3 months ago
EPD
Certificate type
WRAS
Certificate type
Instant filtered boiling and chilled water for visually impaired, wheelchair and limited dexterity users.
Application
Suitable for commercial applications in catering environments. Disability friendly controller design.
Description
The Disability Friendly HydroTap comes with the addition of an easy to use controller to enable access to instant filtered boiling and chilled water for visually impaired, wheelchair and limited dexterity users.
Features and benefits:
- Slanting design to prevent accidental dispense.
- Large, convex buttons to make it easier to dispense water for those with limited dexterity.
- Choice of install location to ensure positioning for easy wheelchair access.
- Bright, illuminated fascia panels work to aid visually impaired users – there is a choice of two colour variants available in the kit.
General information
Color | Silver |
Finish | Chrome Guidance for specification option: Bright chrome. |
Material | Steel Stainless steel |
Shape | Other |
Length | 520 mm |
Width | 500 mm |
Height | 373 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/30 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes |
Product range |
Specification data - Instant boiling and cold water taps
Water | Boiling and chilled. |
Duty | |
Hot cups | 240. |
Cold cups | 175. |
Dimensions | 373 x 500 x 490-520 mm.Manufacturer guidance(Height x width x depth) Unit: |
Electrical connection | |
Power | Manufacturer's standard.Guidance for specification option:
|
Voltage | 230 V. |
Water inlet | Cold feed.Guidance for specification option: Supply connection (hot and cold): 1 x isolated 1/2" BSP fitting (flexible supply hoses included). Manufacturer guidance(supply required): |
Safety features | Boiling isolation, cool touch tap and safety lock.Guidance for specification option: The boiling point is factory set to 98°C to avoid spluttering steam. |
WaterPressureRange | 1.7-5 bar. |
Weight | 28 kg (empty); 33 kg (full). |
Design | Bright chrome. |
Rotation | Fixed. |
Temperature | Boiling: 98°C; chilled: 6-10°C. Guidance for specification option: Factory temperature. |
Filtration | 0.2 µm filter cartridge. |
Flow rate | 4 L/m. |
RefrigerantClass | R290. |
Installation | 35 mm. Manufacturer guidance/ Installation hole cut size: |
Construction | Stainless steel. Manufacturer guidanceTank material: |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 199 kg CO₂ eq/unit |
Recyclability | 99.8% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration
WRAS
WRAS HydroTap G5 BC
Literature
HydroCare Commercial Flyer 2024
Zip Commercial Product Guide - HydroTap
Zip Commercial Product Guide Introduction
Zip Water Commercial Price List 2024
Case studies

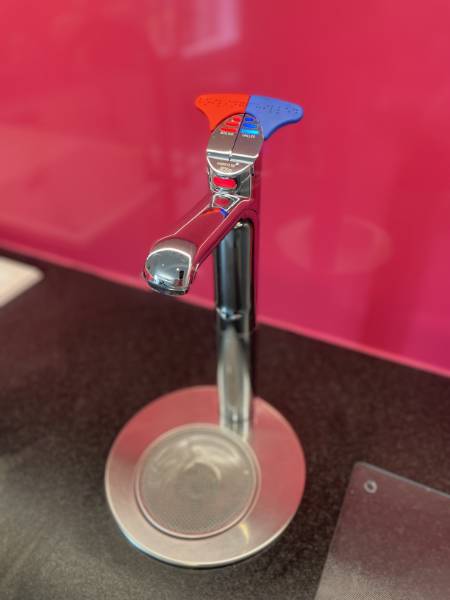

RNIB
