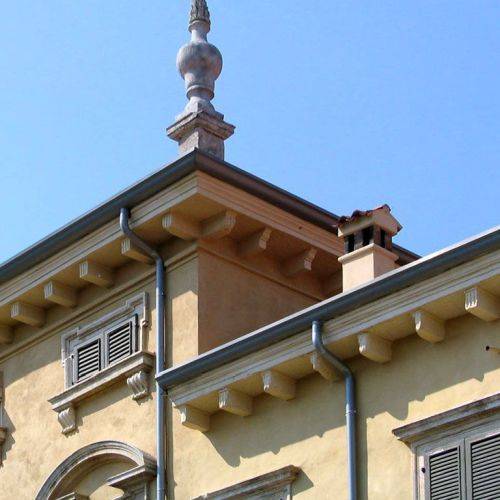

Zintek ® Zinc Rainwater Drainage System - External Rainwater Drainage System
Verified by manufacturer 6 months ago
ISO 9001 Quality Management
Certificate type
Declare
Certificate type
Zinc external rainwater drainage system.
Application
External rainwater drainage.
Installation:
Contact Metal Solutions for a list of approved installers by postcode
Email:
gaynor@metalsolutions.uk.com
Description
Zinc-titanium external rainwater drainage system. Manufactured in Porto Marghera, Venice, zintek® laminate is a zinc-titanium alloy compliant with European Standard EN 988. It contains Z1-quality zinc (at least 99.995% zinc), with the addition of alloying elements.
Features and benefits:
- A range of bespoke items can be manufactured to order.
- Material - A1 fire rated.
- Also available in other light gauge metals including copper, other coloured zincs, brass, bronze, precoated aluminium, GreenCoat® steel and any other traditional finish.
- Heritage rainwater systems can be replicated in any traditional metal.
General information
Color | Grey Blue Green Red Brown |
Finish | Other Guidance for specification option: See manufacturers literature. |
Material | Zinc Titanium |
Shape | Crescent Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 40 year |
Uniclass | |
CAWS | R10/110 Gravity rainwater drainage system |
Specification data - External gravity rainwater drainage systems
Combined fascias soffits and gutters | |
Materials | Zinc. |
Supports | |
Brackets | Zinc brackets.Guidance for specification option: Install gutter brackets at 500 mm centres. Install downpipe brackets at 1000 mm centres. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
Eaves gutters | |
Gutters | |
Gutter types | Half round, 110 mm diameter.Half round, 127 mm diameter.Half round, 153 mm diameter.Box, 120 x 75 mm.Box, 150 x 90 mm.Ogee, 125 x 80 mm.Ogee, 150 x 90 mm.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Jointing | As recommended by gutter manufacturer.Manufacturer guidanceTo suit gutter, use lap joints with seal and fix gun applied sealant available from manufacturer (Metal Solutions). |
Supports | |
Brackets | Manufacturer's standard. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
Chutes | |
Materials | Not required.Required.Guidance for specification option: Consult manufacturer and insert requirements. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
External rainwater pipework | |
Rainwater downpipes | |
Downpipe types | Round, 80 mm diameter.Round, 100 mm diameter.Round, 120 mm diameter.Square, 76 mm.Square, 100 mm.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Jointing | As recommended by pipework manufacturer.Manufacturer guidanceTo suit gutter, use lap joints with seal and fix gun applied sealant available from manufacturer (Metal Solutions). |
Supports | |
Brackets and clips | Standard bracket.Ring type bracket. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
System accessories | None.Gutter bracket.External corner.Internal corner.Stop end.Cup outlet.Drop outlet.Pipe bracket.Bend.Shoe.Y branch.Gutter leaf guard.Balloon leaf guard.Rainwater diverter.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Execution | Manufacturer guidanceConsult Metal Solutions Technical Team. |
System completion | Manufacturer guidanceVerification of performance. |
Standards | To BS EN 612:2005. |
Product Reference | Zintek® Rainwater System |
Design | Guidance for specification option: Insert requirements or drawing reference. Rainwater calculations can be offered by manufacturer (Metal Solutions) on request. |
Colour/ Finish | Antique Red. Graphite Black. Lagoon Green. Mediterranean Blue. Natural Earth Brown. |
Hopper | Required. Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | United Kingdom |
Material | Zinc Titanium |
Manufacturing plant location | |
Expected Life | Manufacturer guidanceManufacturers expected life guidance:
|
