Zinc Standing Seam Roof System

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

VMZINC UK

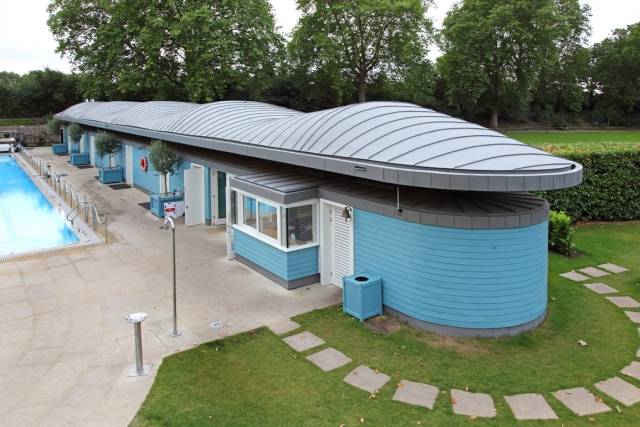

Standing seam zinc roofing.

Jump to:
+44 (0)203 445 5640 www.vmzinc.co.uk
Application

  • Warm roof on mineral wool or PIR - requires continuous fully supported Al foil bituminous back vapour barrier.
  • Warm roof on metal composite panels.
  • Warm roof on cellular glass.
  • Warm roof on plywood faced insulation, requires continuous fully supported Al foil bituminous back vapour barrier.
  • Ventilated roof on roof boarding (only support where non-PLUS material is authorized).
  • Ventilated roof on plywood support.

Description

VMZINC standing seam system:

  • Is a roof and facade covering system.
  • Can be installed down to a minimum 3° pitch.
  • Can be laid in lengths up to 13 m without the need for expansion steps.
  • Can be used for cold/ ventilated or warm roofing.
  • Adapts to the simplest or the most complex roof shapes.
  • Can be used to cover soffits (box gutter overhangs, etc).
  • BBA certificates exist for the VMZ Structural Roof (12/4900 sheet 1) and VMZ Compact Roof (12/4900 sheet 2).

The profiled panels are held in place at the top of the pitch by fixed clips and on the sides by sliding clips distributed along the length of the panel. These clips, which are fixed to the structure, are crimped inside the joints.

Applications:

  • Warm roof on mineral wool or PIR - requires continuous fully supported Al foil bituminous back vapour barrier.
  • Warm roof on metal composite panels.
  • Warm roof on cellular glass.
  • Warm roof on plywood faced insulation, requires continuous fully supported Al foil bituminous back vapour barrier.
  • Ventilated roof on roof boarding (only support where non-PLUS material is authorized).
  • Ventilated roof on plywood support.

Specification data
Product Reference

Zinc Standing Seam Roof System

Membrane

VMZINC Membrane

1500 mm wide.

Coil -
CoilWidth

500 mm

430 mm c/c.

600 mm

530 mm c/c.

670 mm

600 mm c/c.

Finish

ANTHRA-ZINC PLUS

Natural VMZINC PLUS

PIGMENTO Blue PLUS

PIGMENTO Red PLUS

PIGMENTO Green PLUS

QUARTZ-ZINC PLUS

Eaves strip

Overlap 30

Overlap 50

Fixings

None

Distribution plate

Fixed clip

Plastic spacer

Sliding clip

Accessories

None

Fixing clip

For ventilated ridge.

Half-round ventilation cap

Head seam slider

Triangular ventilation cap

Ventilated ridge

Product Options

Applications:

Consult manufacturer with roofing application requirements for details of relevant fixings and accessories required.

Literature
Third party certifications
  • 12/4900 : Product page 1 (VMZ Structural Roof)
  • 12/4900 : Product page 2 (VMZ Compact Roof)
