ZENiX / ONE-X - Smoke & Fire Protection Control System
Verified by manufacturer 23 days ago
Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.
Application
Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.
ZENiX / ONE-X Building applications:
- Industrial, commercial & residential buildings.
- Hospitals and care houses.
- Data centres and battery plants.
- Detention institutes.
- Universities, colleges and schools
Description
Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.
ZENiX / ONE-X Distinct Features (incl. specifications)

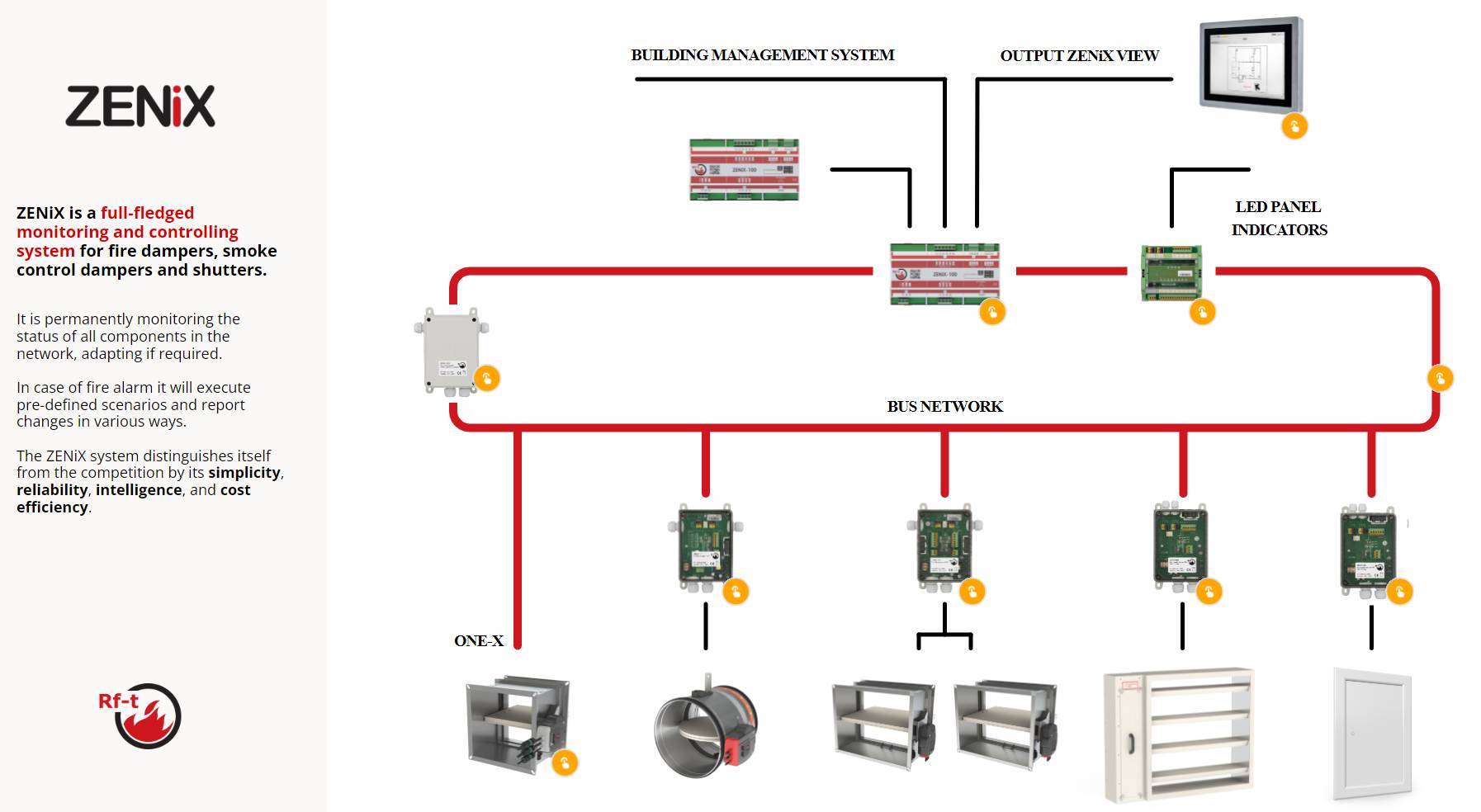

- Network / bus-based controls system
- Standalone operation or BMS driven
- via BACnet or Modbus "bridge"
- "Controlling" both fire and smoke control dampers
- and related peripherals like fans, detectors, ...
- Web based or PC based interface
- "Near-Zero" susceptibility for EMI/EMC interference
- without special cabling
- 230V powered
- controlling both 230 and 24V field units
- Able to drive the biggest systems spanning several hundred dampers and peripherals over very long cable distances.
- connecting different ZENiX controllers
- "Easily" adaptable
- both in configuration and in system size
- Both for simple and complex fire and smoke scenarios
- Configurable without programming skills
- after ZENiX academy training
- Unique setup and commissioning performance bringing very substantial installation, fault-finding and time-saving benefits over traditional control systems
- Designed for monitoring mechanical, fuse based dampers (with positioning contacts)
- Designed for use with Belimo motor range (24/ 230 V).
- So fit to "control" most traditional UK and European fire damper brands
- Designed for use with ONE motor range (24/ 230 V).
- Designed for use with ONE-X.
- Note for clarification:
- ONE is a motor by Rf-Technologies.
- ONE-X is a motor with an integrated control module, used in combination with the ZENiX controller.

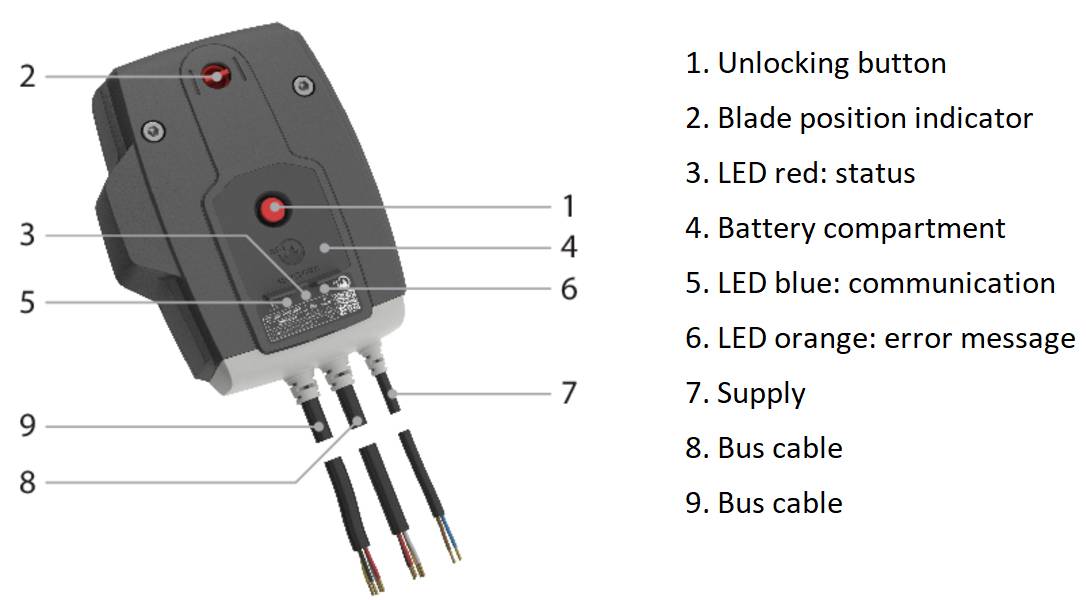

- ONE-X distinct product features & benefits
- Integrated controls field module
- Elimination of error prone cabling between actuator and tradition field modules
- Complete actuator/field module delivery from production
- Available for the full Rf-Technologies fire damper range
General information
Specification data - Motor-driven damper actuators
Actuator type | Electric. |
Action | Spring return. |
Running time | Motor: (cabled): <75 seconds. |
Operation | Normally open.Guidance for specification option: When powered, the actuator moves the damper blade into its stand-by position. When the power is interrupted or when the temperature in the duct exceeds 72°C, the internal armed spring brings the damper blade back into its safety position. The motor can be reset manually by using a standard 9 V battery. |
Electrical supply | 24 V a.c.Guidance for specification option: Nominal voltage: -10%/ +20%. Power consumption: 0.28 W. 24 V d.c.Guidance for specification option: Nominal voltage: -10%/ +20%. Power consumption: 0.28 W. 230 V.Guidance for specification option: Nominal voltage: ±15%. Power consumption: 0.57 W. |
Ancillaries | Unlocking button. |
Noise | Motor: maximum 64 dB (A). |
Ingress protection | IP54. |
Literature

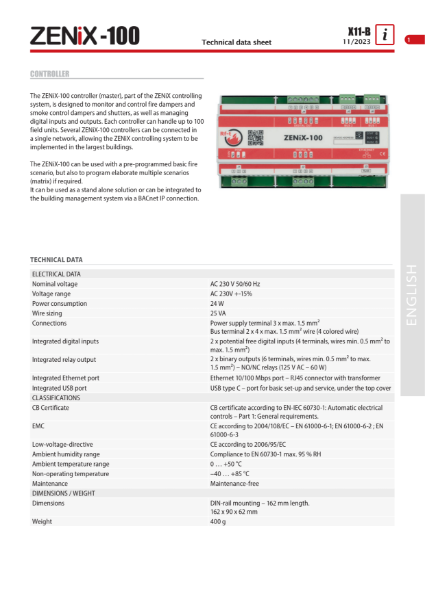

ZENiX Product Brochure
