Zenith Banded Bollard
Description

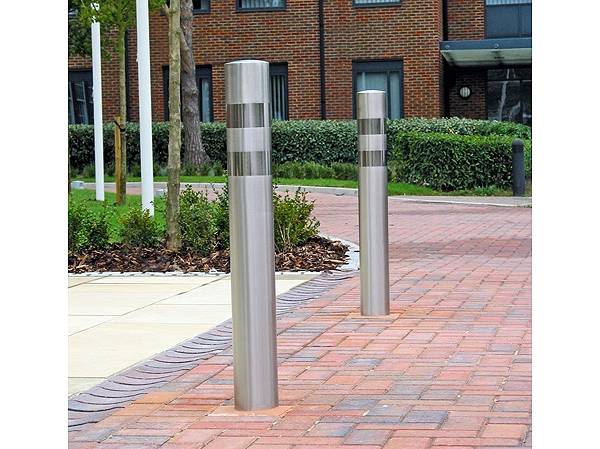

A circular stainless steel bollard in satin polished finish with shallow domed top and two bands in bright polished finish as standard. The popular Zenith bollard is simple in design, low in maintenance, hard wearing and 100% recyclable. Zenith Banded bollards are available in heights of either 900 or 1000 mm; the latter can help the visually impaired and assist with the requirements of the DDA and BS 8300. Base plated, removable and security versions are available.

General information

Uniclass 2015

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Specification data - Stainless steel bollards

Product Reference

ZEN 720

102 mm diameter, 900 mm high above ground.

ZEN 721

115 mm diameter, 900 mm high above ground.

ZEN 722

170 mm diameter, 900 mm high above ground.

ZEN 723

140 mm diameter, 900 mm high above ground.

ZEN 724

204 mm diameter, 900 mm high above ground.

ZEN 725

153 mm diameter, 900 mm high above ground.

ZEN 726

60 mm diameter, 900 mm high above ground.

ZEN 727

76 mm diameter, 900 mm high above ground.

ZEN 728

89 mm diameter, 900 mm high above ground.

ZEN 820

102 mm diameter, 1000 mm high above ground.

ZEN 821

115 mm diameter, 1000 mm high above ground.

ZEN 822

170 mm diameter, 1000 mm high above ground.

ZEN 823

140 mm diameter, 1000 mm high above ground.

ZEN 824

204 mm diameter, 1000 mm high above ground.

ZEN 825

153 mm diameter, 1000 mm high above ground.

ZEN 826

60 mm diameter, 1000 mm high above ground.

ZEN 827

76 mm diameter, 1000 mm high above ground.

ZEN 828

89 mm diameter, 1000 mm high above ground.

Material/ Finish

Grade 304 (1.4301) stainless steel, bright polished

Grade 304 (1.4301) stainless steel, satin polished

Grade 316 (1.4401) stainless steel, bright polished

Grade 316 (1.4401) stainless steel, satin polished

Type

Security bollard

Reinforced with steel core, available in 115–204 mm diameters.

Standard bollard

Fixing

Base plated

Not available for security bollards.

Removable

Not available for security bollards.

Root fixed

Standard.

Socket

Not required

- WAR 511 RB/ RB AR/ RB SC:

F1 75

Small composite socket for 75 mm diameter bollards.

F1 115

Large composite socket for 115 mm diameter bollards.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

Accessories

None

CHNP

Steel plain chain link, galvanized.

CHNS

Steel spiked chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Height below ground (root fixed):

  • Security bollard: 600 mm.
  • Standard bollard: 300 mm.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
