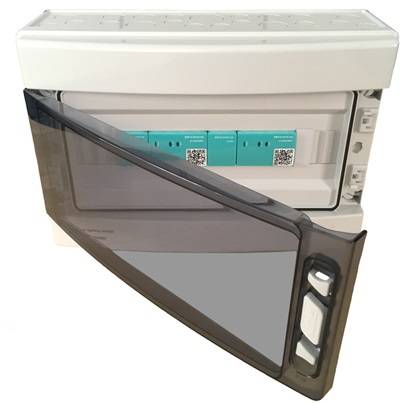

DALI control panel – two DALI lines out to up to 128 luminaires and 128 devices.
IP65-rated enclosure comprising two DALI Application Controllers and Power Supply Units pre-wired with terminals.
Ideal for control of DALI/DALI-2 luminaires in areas with exposed ceilings such as stairwells, lobbies, warehouses, factories and car parks. Each DALI Application Controller can support up to 64 DALI luminaires and 64 DALI devices.
A 1.5 mm² two-core DALI cable is wired from the Application Controller to permanently fed luminaires – devices are powered off the DALI line.
Status and activity indicator lights confirm that the DALI controller and line are healthy and ready for commissioning, along with an on/ off button for manual override of all luminaires on the DALI line at any time.
10 / 100 Ethernet gateway to connect to cloud and extended system
62 x 72 x 92.5mm
