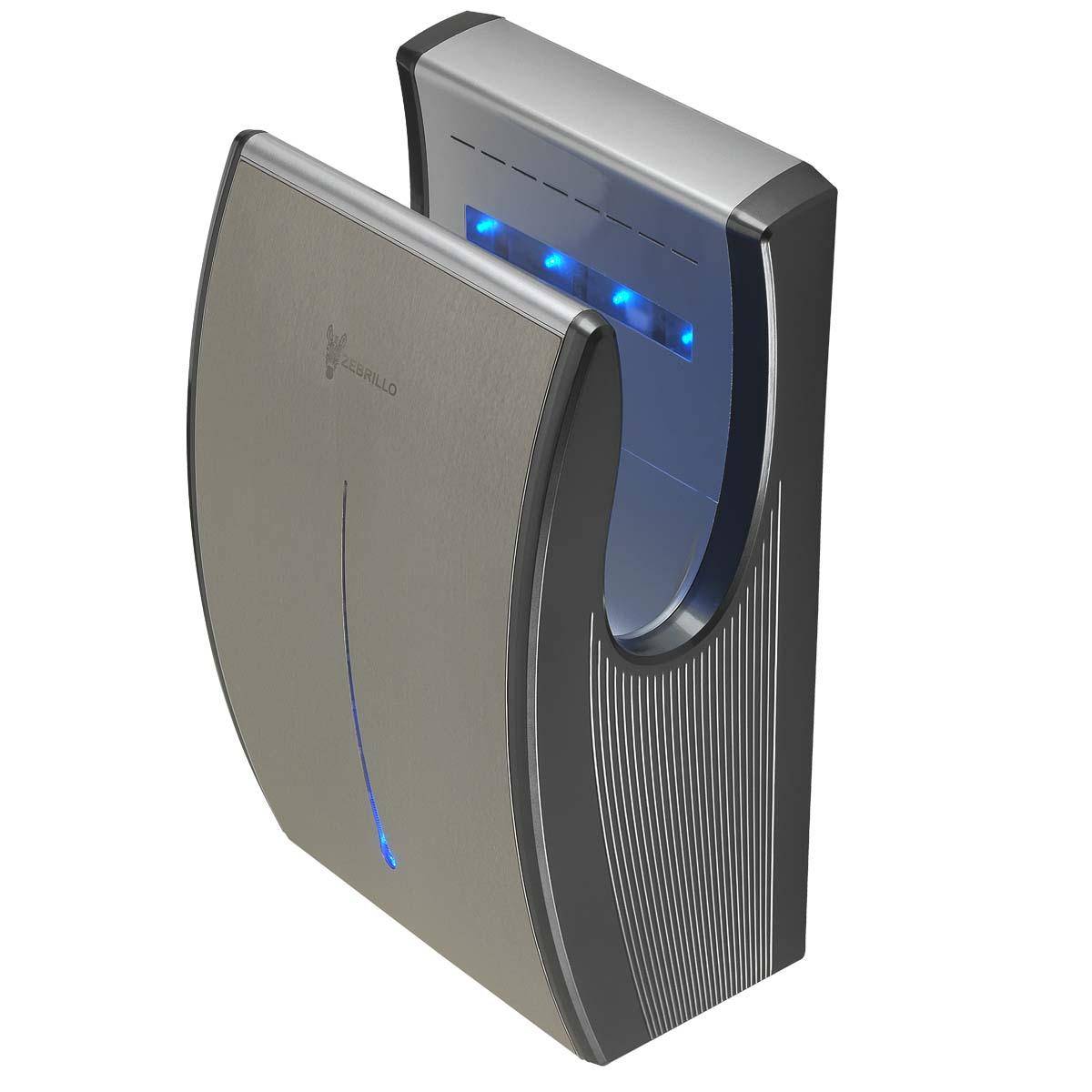

Zebrillo Hands-in Stainless Steel Hand Dryer

Verified by manufacturer 1 year ago

Heat Outdoors & Handy Dryers

Compact stainless steel "hands in" hand dryer.

Jump to:
BIM object icon
+ (0) 1279 466 500 Website

Application

Washrooms, including high footfall areas.

Description

Compact stainless steel "hands in" hand dryer.


Features and benefits:

  • Double jet.
  • Inbuilt HEPA filter and UVC sterilization lamp at the air inlet of the dryer; these features combine to make the air inside the dryer more hygienic before it is forced through the jet nozzles onto the hands.
  • High-quality brushless motor for better and longer-lasting performance.
  • Suitable for high footfall areas.
  • Contemporary stainless steel design.
  • Integrated water tank collects excess water preventing it falling on the floor of the washroom.
  • The intelligent sensor informs when the water tank needs to be emptied.
  • A 12 V low-voltage intelligent switch allows the choice between warm or cold air and on-or-off in one button.

General information

Color

Silver

Material

Stainless steel

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

210 mm

Width

300 mm

Height

488 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air through HEPA filter.

Guidance for specification option:

  • Warm air speed output: 106 m/s.
  • Drying time: 7–10 seconds.

Operation

Automatic.

Timer

Fixed.

Guidance for specification option:

20 seconds automatic switch off.

Electrical supply

-

Power rating

1.65 kW.

Guidance for specification option:

  • Motor type: 750 W, brushless.
  • Heater element: 900 W.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/ 60 Hz.

Body

-

Material

Manufacturer's standard.

Guidance for specification option:

Weight: 10 kg.

Finish

Stainless steel.

Colour

Stainless steel.

Ingress protection (minimum)

IPX4.

Guidance for specification option:

Isolation: Class 1.

Dimensions

488 x 300 x 210 mm.

Guidance for specification option:

Height x width x depth.

Features

Hands only.

Sustainability data

Country of product manufacture

China

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Zebrillo User Manual
