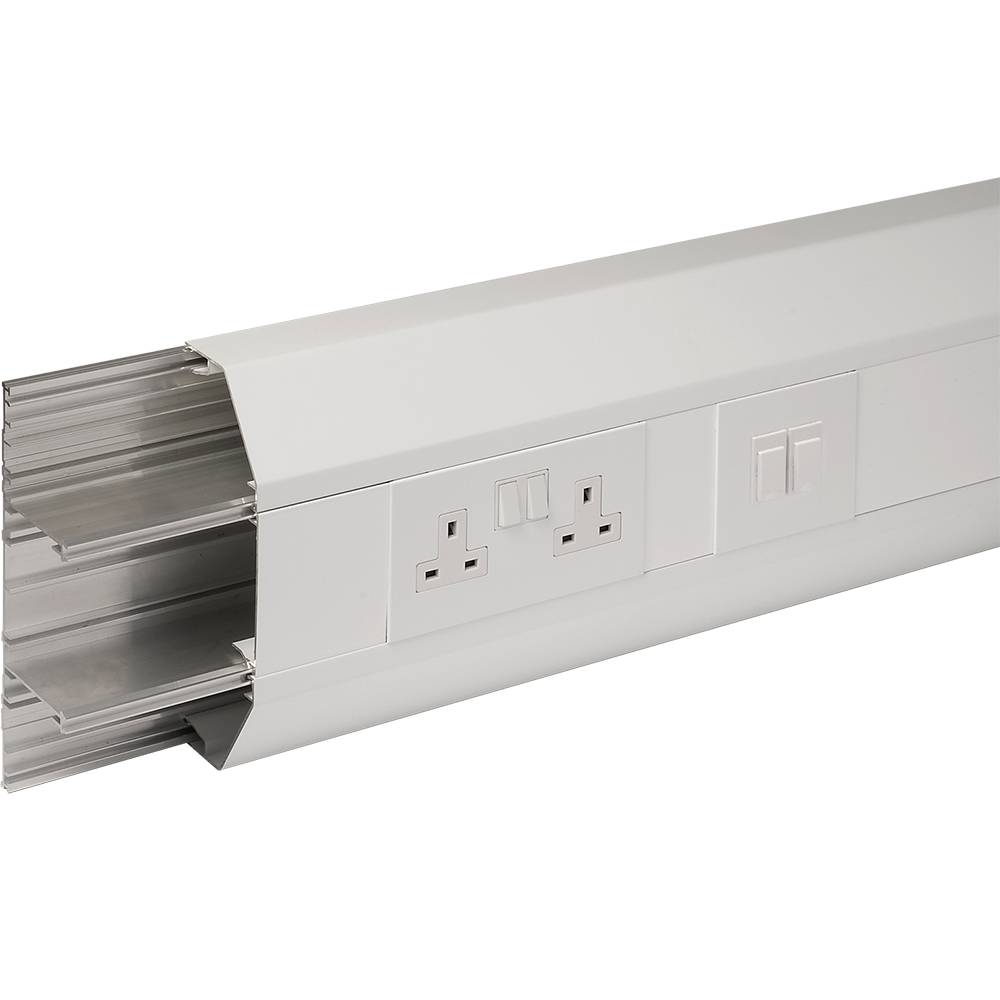

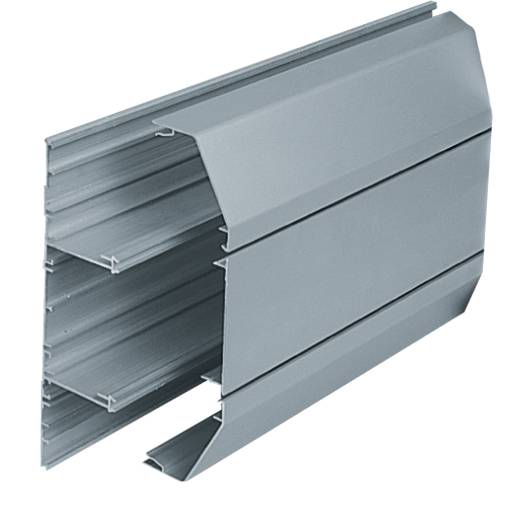

XL301 Aluminium Trunking
Verified by manufacturer 2 days ago
A range of deep, three compartment systems that provide extra capacity and screening performance levels for data cabling.
Application
Recommended for dado applications only.
Description
A range of deep, three compartment systems.
Features and benefits:
- Three deep segregated compartments.
- Tamper proof covers.
- Built in cable tray.
- Flush fitting accessory boxes.
- First Class EMC/EMI screening performance.
- Fabricated bends.
- Part M Boxes.
- Compartments can be subdivided.
- Includes a range of polycarbonate clip-on fittings with built-in overlaps.
- Fully compatible with Sterling flush power and data accessories.
- Aluminium systems specified with polycarbonate fittings meet accepted requirements for LS0H.
- CE and UKCA marked.
Data information:
- Compliant up to Cat 7a.
- Data compliant 25 mm and 50 mm bend radius.
- External bends feature internal segregators.
- Adjustable data box 32–47 mm.
- Screened divider and data boxes.
Note: Allowance must be made for earthing the trunking system to comply with the current version of the BS 7671 Wiring Regulations.
General information
Color | Silver Guidance for specification option: Silver Grey (RAL 9006). |
Finish | Powder-coated |
Material | Aluminium Guidance for specification option: Extruded aluminium. |
Shape | Rectangle |
Length | 3000 mm |
Width | 65 mm |
Height | 220 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Standards | To BS EN 50085-1:2005+A1:2013; BS EN 50085-2-1:2006+A1:2011; BS 7671:2018; IEC 61084-1:2017; IEC 61084-2-1:2017 and BS 5733:2010+A1:2014. |
Installation position | Surface mounted on the wall. |
Resistance to flame propagation | Non-flame-propagating. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | IP4X. |
Screening | Aluminium containment will protect all internal circuits from external electromagnetic interference.Guidance for specification option: For internal segregation and screening, use a screened dividing fillet. |
Sizes | 220 x 65 mm. |
Compartments | Three. |
Accessories and fittings | |
Types | Not required.Base unit.Main compartment cover.Angled cover.Square cover.XL301 Coupler.XL301 End cap.XL301 Internal bend.Bonding strap.Dividing fillet (PVC-U).Earth bonding kit.Coupler pin.RCD/MCB housing.1 gang accessory box 30mm deep (polycarbonate).2 gang accessory box 30mm deep (polycarbonate).1 gang adjustable depth box.2 gang adjustable depth box.1 gang accessory plate.2 gang accessory plate.1 gang screened accessory box (polycarbonate).2 gang screened accessory box (polycarbonate).XL301 External bend.XL301 Flat angle – up/down.XL301 Flat tee – up/down. |
Third-party certification | CE and UKCA marked. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Extruded aluminium. |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
XL301 Aluminium Trunking Product Data Sheet
