XL Dado PVC-U Trunking
Verified by manufacturer 3 months ago

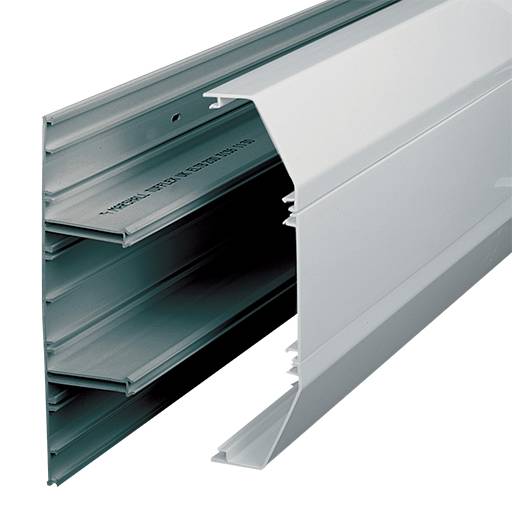

A deep, large capacity, three compartment, segregated dado containment system.
Application
Suitable for dado installation.
Description

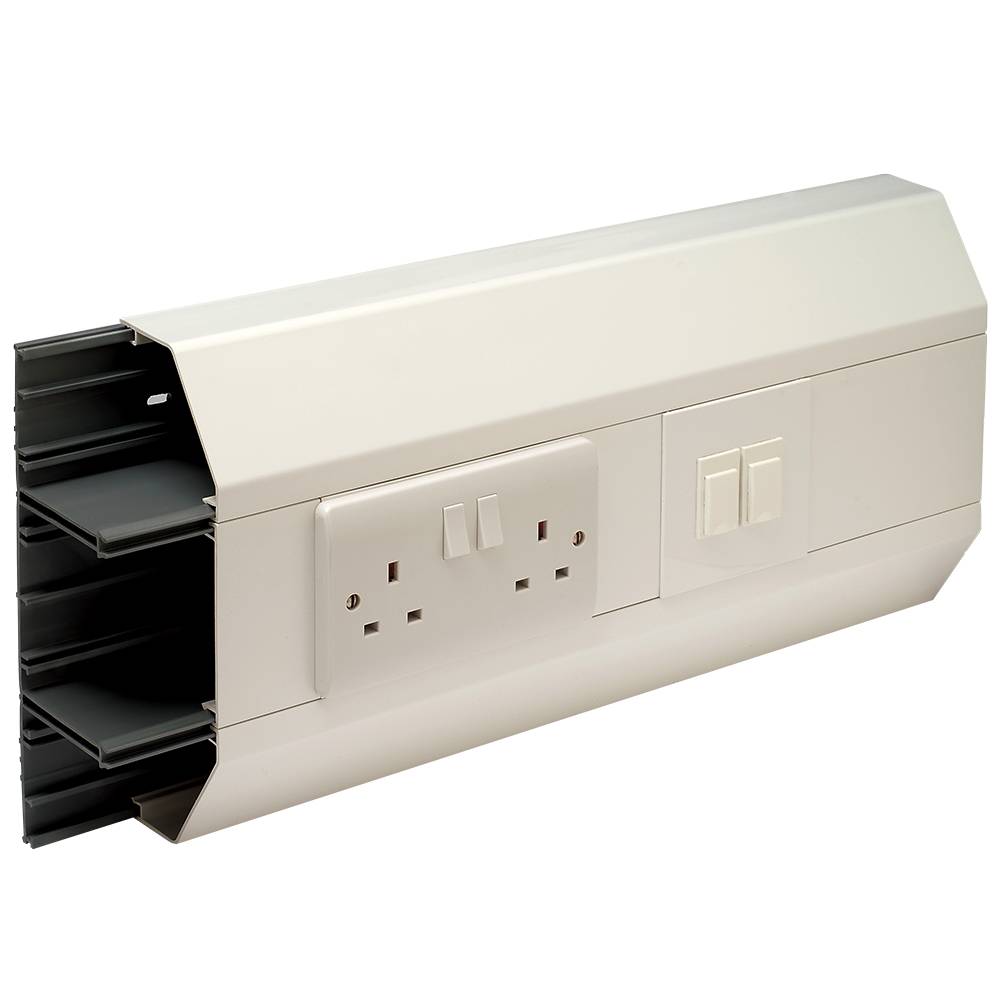

XL dado trunking is a deep, large capacity three compartment, segregated containment system. This system can accommodate integral lighting units.
Features and benefits:
- Size: 220 x 65 mm.
- One full and two half size compartments.
- Three deep segregated compartments.
- Can be subdivided.
- Suitable for dado and skirtin application.
- Can be fed from larger trunking systems for increased cable distribution.
- Boxes available to comply with Part M (DDA).
- Self extinguishing and non-flame propagating PVC-U.
- ETL1 lid is available in charcoal as a Part M compliance option.
- Compliant up to Cat 7a.
- Adjustable data box 32–47 mm.
- Steel screening divider available to BS EN 50714-2.
- System base is manufactured from 99% recycled material.
General information
Color | White Guidance for specification option: White (RAL 9003). |
Finish | Matt |
Material | PVC-U |
Shape | Rectangle |
Length | 3000 mm |
Width | 65 mm |
Height | 220 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
SKU Code | ELTB200 |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Installation position | Surface mounted on the wall. |
Resistance to flame propagation | Non-flame-propagating. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | IP4X. |
Screening | Required. Not required. Manufacturer guidanceSpecial conductive spray coating can be applied to one compartment, the cover, accessory boxes and fittings, to screen data cables against EMI interference. For data/voice circuits only: Warning: Owing to its relatively high surface resistance, CS coating SHOULD NOT be in contact with low voltage circuits As per the current version of BS 7671 wiring regulations. 50 V.A.C. – 1000 V.A.C. unless additional measures are undertaken. |
Sizes | 220 x 65 mm. |
Compartments | Three. |
Accessories and fittings | |
Types | Not required. Angled cover. Square cover. XL201 Coupler. XL201 End cap. XL201 Internal bend. XL201 External bend. XL201 Flat angle. XL201 Flat tee. Dividing fillet. Steel screening divider. Steel screening divider bonding strap. Bonding strap. RCD/MCB Housing. 1 gang accessory box. 2 gang accessory box. Accessory box spacer. 1 gang adjustable depth box. 2 gang adjustable depth box. 1 gang accessory plate. 2 gang accessory plate. |
Third-party certification | CAT 7A. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
XL201 PVC-U Trunking Product Data Sheet
