Application

Shower channel floor drains are wide collection vessels used within the floor of wet room showers and are offered in various lengths. Suitable for:

  • Floor structures designed especially for ultra-low build-in height screeds in concrete floors.
  • All showers; specifically showers needing a discrete installation by using the slim and elegant grates.
  • En-suites; small bathrooms where space efficiency is at a premium.
  • High end designer bathrooms which adds to the feeling of space within a bathroom or shower area.
  • Refurbishments and new build projects.

Description

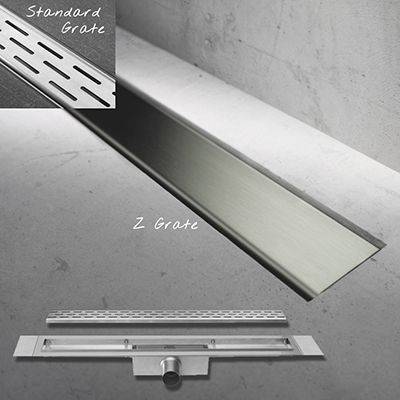

The XERO 83 is a stainless steel shower gully for concrete floors. Fitted with a (full UK regulation) 50 mm deep water seal foul air trap, and has an extra low profile cross section. With two traditional style height adjustable grates, XERO 83 also offers factory fit water resistant collar and high flow rates to suit all showers installations.

Package includes:

  • Linear shower gully with traditional stainless steel grate.
  • Stainless steel foul air trap, fixed outlet horizontal connection, DN 50 mm.
  • Water resistant reinforcing collar, fitted to drain chassis. When combined with additional tanking membranes it seals the drain to the floor structure, creating a permanent barrier to water ingress.
  • Cover grate with height adjustable feet.
  • Installation feet (concrete floors) and earthing tag.
  • Available separately are AquaeGUARD or AquaeSEAL waterproof membranes.

Features and benefits:

  • Ultra-low profile linear floor drain with a minimum 83 mm build-in height, especially for concrete floors.
  • Supplied with a ‘Fixt 1’ style of pierced grate as standard.
  • Can be supplied with a ‘Zero’ style grate.
  • All grates can be adjusted to match surrounding floor height.
  • Centrally located horizontal outlet to DN50 exits from front of welded foul air trap.
  • High quality 1.4301 (304) grade stainless steel which offers reliable resistance to chemical attack.

Applications:

Shower channel floor drains are wide collection vessels used within the floor of wet room showers and are offered in various lengths. Suitable for:

  • Floor structures designed especially for ultra-low build-in height screeds in concrete floors.
  • All showers; specifically showers needing a discrete installation by using the slim and elegant grates.
  • En-suites; small bathrooms where space efficiency is at a premium.
  • High end designer bathrooms which adds to the feeling of space within a bathroom or shower area.
  • Refurbishments and new build projects.

General information
Specification data
Product Reference

XERO 83 Standard Grate, 500 mm, KD008 00530

XERO 83 Standard Grate, 600 mm, KD008 00531

XERO 83 Standard Grate, 700 mm, KD008 00532

XERO 83 Standard Grate, 800 mm, KD008 00533

XERO 83 Standard Grate, 900 mm, KD008 00534

XERO 83 Standard Grate, 1000 mm, KD008 00535

XERO 83 Standard Grate, 1100 mm, KD008 00536

XERO 83 Standard Grate, 1200 mm, KD008 00537

XERO 83Z Upgrade Z Grate, 500 mm, KD008 00540

XERO 83Z Upgrade Z Grate, 600 mm, KD008 00541

XERO 83Z Upgrade Z Grate, 700 mm, KD008 00542

XERO 83Z Upgrade Z Grate, 800 mm, KD008 00543

XERO 83Z Upgrade Z Grate, 900 mm, KD008 00544

XERO 83Z Upgrade Z Grate, 1000 mm, KD008 00545

XERO 83Z Upgrade Z Grate, 1100 mm, KD008 00546

XERO 83Z Upgrade Z Grate, 1200 mm, KD008 00547

Standard product features

Technical characteristics:

  • Material: Channel and grate are 1.5 mm thick 1.4301 (304) grade high quality stainless steel. Trap: Stainless steel, with fixed horizontal outlet.
  • Capacity: Horizontal outlet (33–42 L/ min), location dependant.
  • Gully profile: 20 mm deep chassis, to suit concrete floor structures.
  • Waste and foul air trap to EN 1253-2, with UK regulation 50 mm deep water seal, with rodding access.
  • Waste connection: Outlet DN 50 mm connection, with BS 2 inch adaptor.
  • Suitable floor covering: Adjustable grates suit minimum 7 mm (or greater) tile or natural stone finish.
  • Floor gradient: 1–1.5% to be built into the surrounding floors.

Product Options

Product reference:

Up to 2000 mm is available by special order only.
