XERO 83/ 83Z

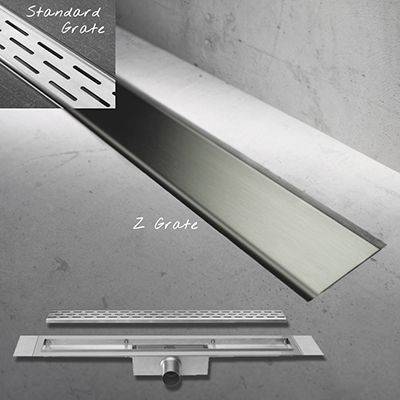

The XERO 83 is a stainless steel shower gully for concrete floors. Fitted with a (full UK regulation) 50 mm deep water seal foul air trap, and has an extra low profile cross section. With two traditional style height adjustable grates, XERO 83 also offers factory fit water resistant collar and high flow rates to suit all showers installations.

Package includes:

• Linear shower gully with traditional stainless steel grate.

• Stainless steel foul air trap, fixed outlet horizontal connection, DN 50 mm.

• Water resistant reinforcing collar, fitted to drain chassis. When combined with additional tanking membranes it seals the drain to the floor structure, creating a permanent barrier to water ingress.

• Cover grate with height adjustable feet.

• Installation feet (concrete floors) and earthing tag.

• Available separately are AquaeGUARD or AquaeSEAL waterproof membranes.

Features and benefits:

• Ultra-low profile linear floor drain with a minimum 83 mm build-in height, especially for concrete floors.

• Supplied with a ‘Fixt 1’ style of pierced grate as standard.

• Can be supplied with a ‘Zero’ style grate.

• All grates can be adjusted to match surrounding floor height.

• Centrally located horizontal outlet to DN50 exits from front of welded foul air trap.

• High quality 1.4301 (304) grade stainless steel which offers reliable resistance to chemical attack.

Applications:

Shower channel floor drains are wide collection vessels used within the floor of wet room showers and are offered in various lengths. Suitable for:

• Floor structures designed especially for ultra-low build-in height screeds in concrete floors.

• All showers; specifically showers needing a discrete installation by using the slim and elegant grates.

• En-suites; small bathrooms where space efficiency is at a premium.

• High end designer bathrooms which adds to the feeling of space within a bathroom or shower area.

• Refurbishments and new build projects.
