XD18 Unequal Double Steel Security Door Set

Verified by manufacturer 1 month ago

Fortress SEFA

Double steel security door set.

Jump to:
BOS
 +44 (0)1942 817 489 Website

Application

Security doors.

Description

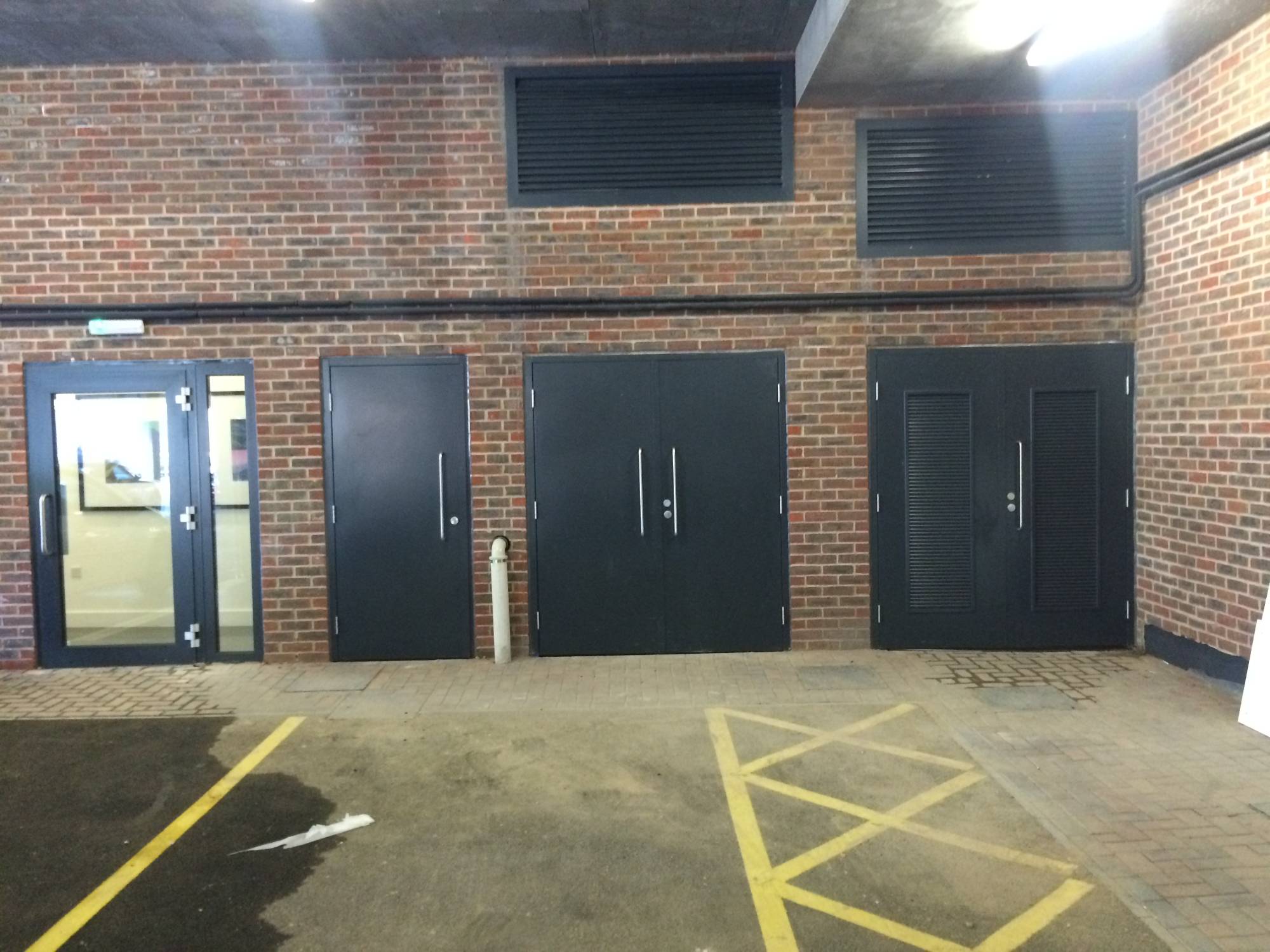

Flush double steel security door set with a hollow metal construction designed for industrial and commercial applications.

General information

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Carbon steel doorsets

Standard

BS EN 12206-1, BS EN 1634-3.

Configuration

Leaf and a half.

Doorset size

-

Manufacturer guidance

Structural opening size: Standard 1800 x 2100 mm. Non standard sizes available upon request.

Performance

-

Fire resistance

-

Integrity

120 minutes.

Insulation

30 minuttes.

Acoustic performance

Rw 40 dB (when incorporating acoustic seals).

Thermal

Up to U-value 1.6 W/m²K insulated.

Guidance for specification option:

Insulation Material Thermal performance: U-value 0.363 W/m²K.


Frame

-

Material

100 mm deep 1.6 mm galvanneal steel knock-down construction with internal reinforcing to receive standard hardware. Butt corners allow for a clean uniform appearance and rapid assembly and installation. Strike and hinge jambs can be adjusted in length to suit finished floor levels.

Threshold

A shallow depth extruded steel profile gives additional strength to the frame; aiding weatherproofing and sound reduction.

Finish

-

Coating

Powder coating to BS EN 12206-1.

Colour

-

Manufacturer guidance

Door leaf and frame are supplied BS EN 12206-1 polyester power coated (PPC) to the Fortress Pro-tec range of 29 BS and RAL colours from DuPont®. Matt PPC finishes only.

All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60–80 μm is applied. Non-standard colours are available on request - this may increase lead times. Poly Zinc Marine grade PPC available upon request.

Door leaf

-

Thickness

60 mm.

Panel details

Bonded non-fibrous infill material laminated under pressure to internal face of sheets.

Material

Two skins of 1.2 mm galvanized steel sheet.

Finish

-

External colour

As Frame.

RAL 1021.

RAL 3005.

RAL 3020.

RAL 5003.

RAL 5005.

RAL 5010.

RAL 5013.

RAL 5015.

RAL 6005.

RAL 6029.

RAL 7016.

RAL 7021.

RAL 7031.

RAL 7035.

RAL 7037.

RAL 8016.

RAL 9001.

RAL 9005 (BLACK).

RAL 9006 (SILVER).

RAL 9007.

RAL 9010 (WHITE).

RAL 9910.

BS 00A05.

BS 08B29.

BS 04E53.

BS 12B27.

BS 18B25.

BS 18E53.

RAL 1015.

Manufacturer's standard.

Manufacturer guidance

Door leaf and frame are supplied BS EN 12206-1 polyester power coated (PPC) to the Fortress Pro-tec range of 29 BS and RAL colours from DuPont®. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Poly Zinc Marine grade PPC available upon request.


Internal colour

As External.

RAL 1021.

RAL 3005.

RAL 3020.

RAL 5003.

RAL 5005.

RAL 5010.

RAL 5013.

RAL 5015.

RAL 6005.

RAL 6029.

RAL 7016.

RAL 7021.

RAL 7031.

RAL 7035.

RAL 7037.

RAL 8016.

RAL 9001.

RAL 9005 (BLACK).

RAL 9006 (SILVER).

RAL 9007.

RAL 9010 (WHITE).

RAL 9910.

BS 00A05.

BS 08B29.

BS 04E53.

BS 12B27.

BS 18B25.

BS 18E53.

RAL 1015.

Manufacturer's standard.

Film thickness (minimum)

Manufacturer's standard.

Hardware

100 mm stainless steel hinges.

ASSA ABLOY EL560 electronic sash lock.

Door Viewer.

Door selector.

Escutcheon and Half Cylinder.

Escutcheons & Double Euro Cylinder.

Fortress Deadlock

Fortress Door closer.

Fortress Friction stays.

Fortress Kick/push plates.

Fortress Maglocks.

Fortress Night Latch.

Fortress Panic bolt.

Fortress Panic latch.

Fortress Pull Handles.

Fortress Sash lock

Lever handle

Lever handles.

Weather seal. Smoke seal. Acoustic Seal.

split spindle.

Manufacturer guidance

Door leaves are hung with four 100 mm stainless steel hinges. The door leaf contains four inbuilt dog bolt security pins as standard, which prevents the door from being removed from the opening by forced entry.

High-frequency hinge reinforcement with a return bend for additional strength.

As standard, doors are provided with Fortress hardware solution for architectural ease.


Accessories

Fire rated vision panel.

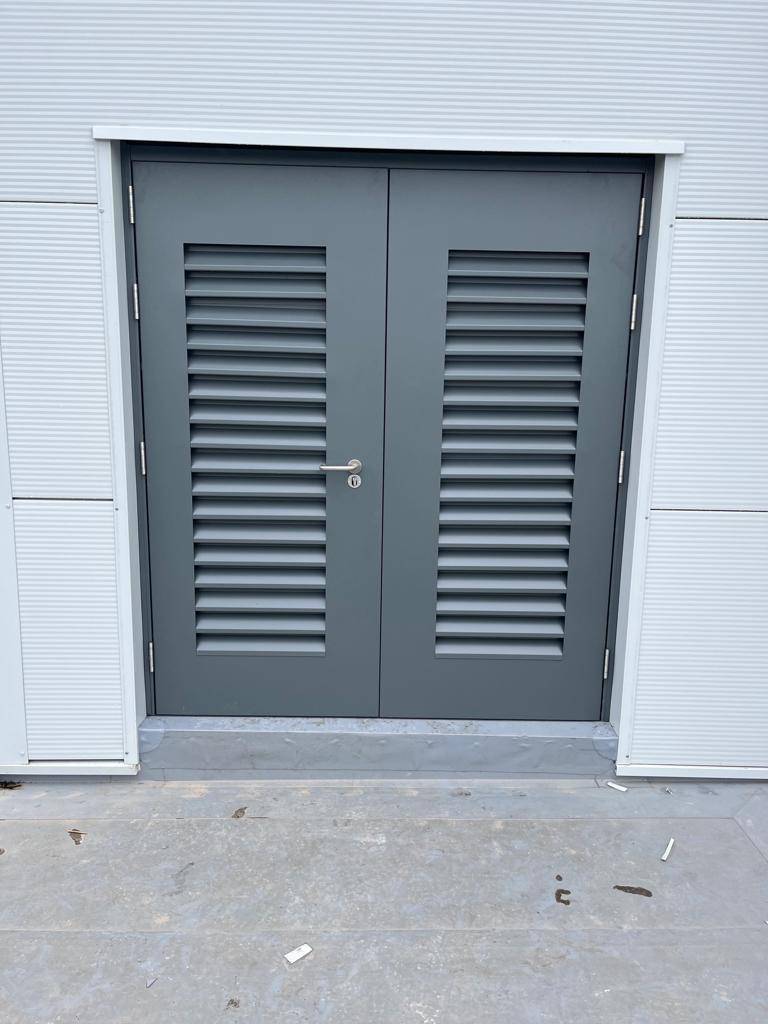

Louvres & Fire Rated louvres.

Mullions.

Over panel (Glazed).

Over panel (Louvred).

Over panel (Solid).

Sills.

Single rebate frame.

Transoms.

Vision panel.

Weather bars.

Wrap around frames.

Security

Up to Secured by Design (SBD).

SR1.

SR2.

SR3.

Air permeability

2.0 m³/hr/m².

Sustainability data

Material

Steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1
