X1S1214: Self Drilling Metal Screw

Verified by manufacturer 5 months ago

Simpson Strong-Tie

A galvanized steel self-drilling screw for metal-to-metal connections.

Jump to:
01827 255 600 Website

Application

  • For indoor use.
  • Construction and steel frame assemblies.
  • Steel decking.
  • Steel to steel applications.

Description

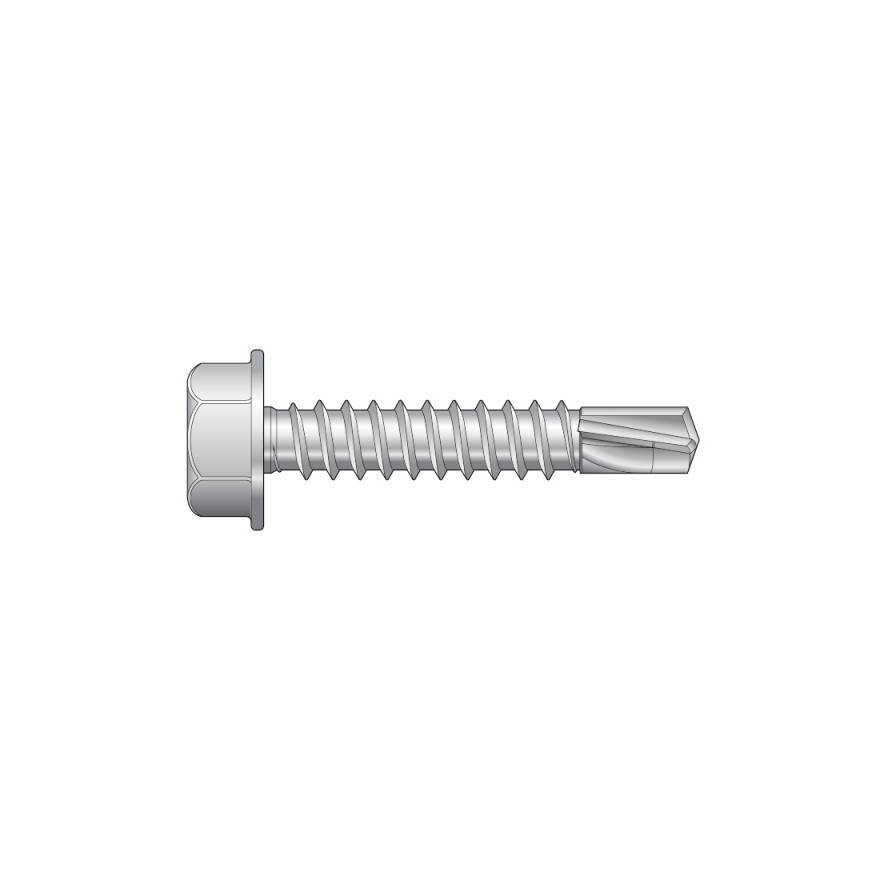

The 'X' is a self-drilling screw with a #3 drill point and 5/16" hex washer head. The drill point allows the screw to penetrate the steel without the need for a pilot hole. The self-drilling screws cut their own thread and are commonly used for metal-to-metal connections and light gauge steel applications.


Features and benefits:

  • 5/16" hex washer head.
  • #3 drill point.
  • LGS to LGS tek screw.

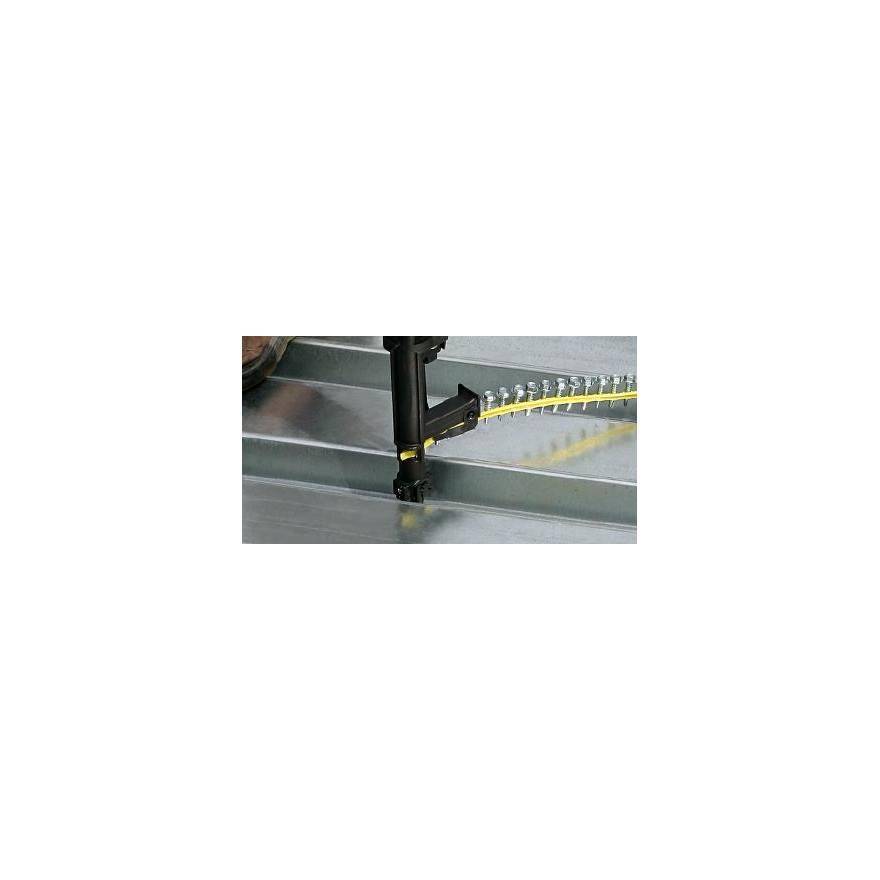

  • Compatible with QDPROHX516G2 and QDPROPP38KE Quik Drive attachments.


General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Hexagon

Length

25 mm

Width

5.5 mm

Uniclass

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

G30/280 Attachment of decking

G30/280 Attachment of decking

Specification data - Self-drilling screws

Material

Steel.

Finish

Galvanized.

Head type

5/16" Hexagonal with cast integral washer.

Size

-

Diameter

5.5 mm.

Length

25 mm.

Guidance for specification option:

X1S1214.

Service class

1.

Literature

X1S1214: Self Drilling Metal Screw Technical Data Sheet

X1S1214: Self Drilling Metal Screw Technical Data Sheet
