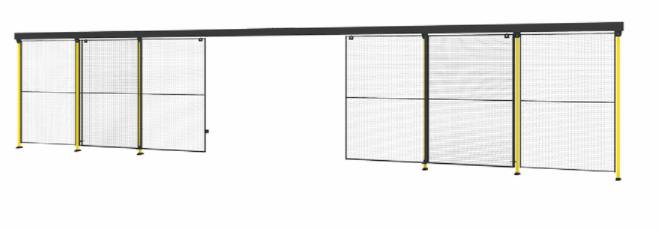

X-Guard Machine Guarding - Sliding Door

Verified by manufacturer over a year ago

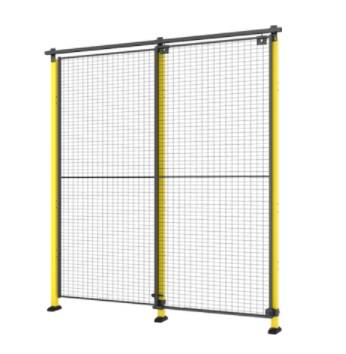

X-Guard Machine Guarding - Double Sliding Door

Axelent Ltd Variant:

Machine guarding sliding door.

Jump to:
01793 523535 Website

Application

Sliding door for machine guarding.

Description

Machine guarding sliding door which complies with the Machine Directive’s new demands on permanent guards from 29 December, 2009. It is available in single and double configurations with three standard heights of 1400 mm, 2000 mm and 2300 mm available. It can also supplied higher with added extensions. Supplied in RAL 9011 as standard.

General information

Color

Black

RAL 9011.

Yellow

Zinc Yellow, RAL 1018.

Red

Traffic Red, RAL 3020.

Blue

Blue, RAL 5005.

Finish

Powder coated

Electrophoretic deposition

EPD.

Material

Metal

Plastic

Shape

Rectangle

Size

Width: 280–5770 mm.

-

WarrantyDescription

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Safety Fencing
Axelent
X-Guard
Machine Guarding

Specification data - Sliding door and partition sets

Arrangement

Double leaf, left, with 2-step rail.

Double leaf, overlapped.

Double leaf, right, with 2-step rail.

Double leaf.

Access for wider goods, pallet trucks, etc.

Sliding door with centre lock.

Sliding door without rail, centre lock.

Sliding door without rail, left.

Sliding door without rail, right.

Sliding door without rail.

Door leaves

-

Construction

Mesh, metal.

Standard.

Clear plastic panels.

Consult manufacturer for details.

Finish and colour

Black, RAL 9011.

Zinc yellow, RAL 1018.

Signal red, RAL 3020.

Blue, RAL 5005.

Special order.

Insert requirement.

Operation

Manual.

Hardware

Dependent on arrangement.

Post

50 x 50 mm.

70 x 70 mm.

Size

Available sizes dependent on arrangement, consult manufacturer's literature for more information.

As drawing.

Insert reference.

As schedule.

Insert reference.

Environmental information

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

Sweden

Recyclability

Steel parts may be able to be recycled. Plastic components not recyclable.

-

Recycled content

0 %
