X-Guard Machine Guarding - Hinged Door

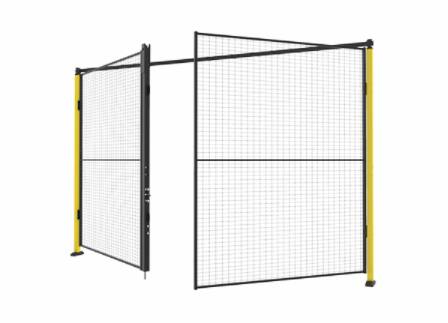

Double hinged door leaf
Double hinged door leaf

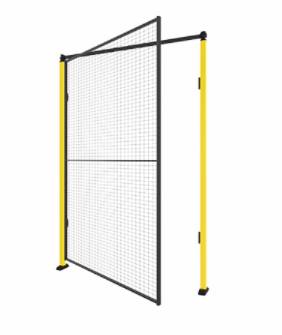

Machine guarding hinged door.
Application
Hinged door for machine guarding.
Description
Machine guarding hinged door which complies with the Machine Directive’s new demands on permanent guards from 29 December, 2009.
Features and benefits:
- It is available in single and double configurations with three standard heights of 1400 mm, 2000 mm and 2300 mm available.
- It can also supplied higher with added extensions.
- Supplied in RAL 9011 as standard.
General information
Color | Black RAL 9011. Yellow RAL 1018. Red RAL 3020. Blue RAL 5005. |
Finish | Powder coated Electrophoretic deposition dip |
Material | Metal Plastic |
Shape | Rectangle |
Size400–3000 mm. | - |
WarrantyDescription | One year As standard. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Aluminium doorsets
Configuration | Double leaf.Access for wider goods, pallet trucks, etc. |
Doorset sizeAvailable up to 3055 x 1500 mm (h x w) per leaf, consult manufacturer's literature for more information. | As drawing.Insert reference. As schedule.Insert reference. |
Door leaf | - |
Material | Steel mesh.Standard. Steel/ plastic.Consult manufacturer for details. |
Finish | - |
External colour | Graphite black, RAL 9011.Zinc yellow, RAL 1018.Signal red, RAL 3020.Blue, RAL 5005.Special order.Insert requirement. |
Internal colour | As External. |
HardwareA selection of locks and handles are available; consult manufacturer for details and insert requirements. | - |
Post | 50 x 50 mm, Zinc yellow (RAL 1018). 50 x 50 mm, Graphite black (RAL 9011). 50 x 50 mm, Traffic red (RAL 3020). 50 x 50 mm, Signal blue (RAL 5005). 70 x 70 mm, Zinc yellow (RAL 1018). |
Environmental information
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | Sweden |
RecyclabilitySteel parts may be able to be recycled. Plastic components not recyclable. | - |
Recycled content | 0 % |
