WTS3UC Offset Angle Tie
Verified by manufacturer 2 days ago
Certificate of Conformity
Certificate type
Offset angle tie for use with offset or irregularly positioned columns in relation to masonry walling.
Application
Suitable for tying masonry to steel columns.
Description
An offset angle tie designed to provide an effective solution for site issues with offset or irregularly positioned columns in relation to the masonry walling. A bespoke stainless steel angle cleat with welded restraint tie for use when the masonry is in line with a column flange or at an irregular angle. Recommend use of Wincro WBSDZP self-drilling, self-tapping Tek screws and WIP isolation patches when fixing to steel columns to avoid the effects of bimetallic corrosion.
Features and benefits:
- Easy to use.
- UKCA marked to BS EN 845-1.
- Corrosion resistant stainless steel.
- Variety of sizes and fixing methods available.
- Features a 7 mm fixing slot to provide vertical tolerance.
- A 100 mm projection safe end tie is provided as standard (other sizes available on request).
- Can also be used with a WDS debonding sleeve when used at vertical movement joints.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | F30/220 Wall ties F30/24 Cavity wall ties F30/290 Proprietary special fixings |
SKU Code | WTS3UC |
Product range |
Specification data - Head restraint slip ties
Classification data | |
Material | Stainless steel, grade 1.4301 (304). |
Length | 100 mm. Guidance for specification option: Standard. Other. Guidance for specification option: For special order, consult manufacturer for details. |
Width | Guidance for specification option: Consult manufacturer and insert requirement. |
Thickness | Guidance for specification option: Consult manufacturer and insert requirement. |
Fixing | 7 mm. Guidance for specification option: As standard. Manufacturer guidanceFixing slot. |
Accessories | Not required. Wincro WBSDZP self-drilling/self-tapping tekscrews. Guidance for specification option: Recommended when fixing to steel columns to avoid bimetallic corrosion. WIP isolation patches. Guidance for specification option: Recommended when fixing to steel columns to avoid bimetallic corrosion. WDS de-bonding sleeve. Manufacturer guidanceFixing accessories. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Recyclability | Stainless steel is highly recyclable |
Product certifications
Literature

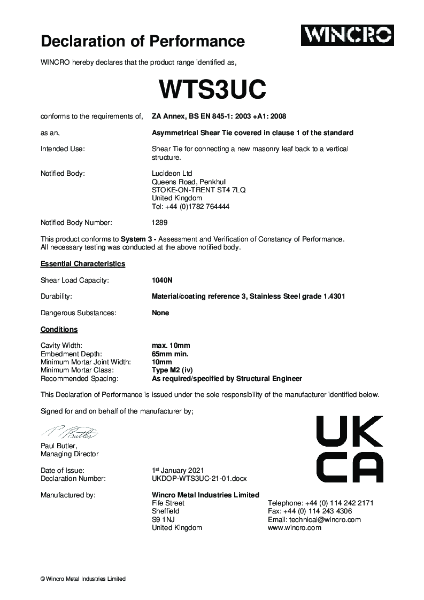

UKDOP-WTS3UC-21-01
