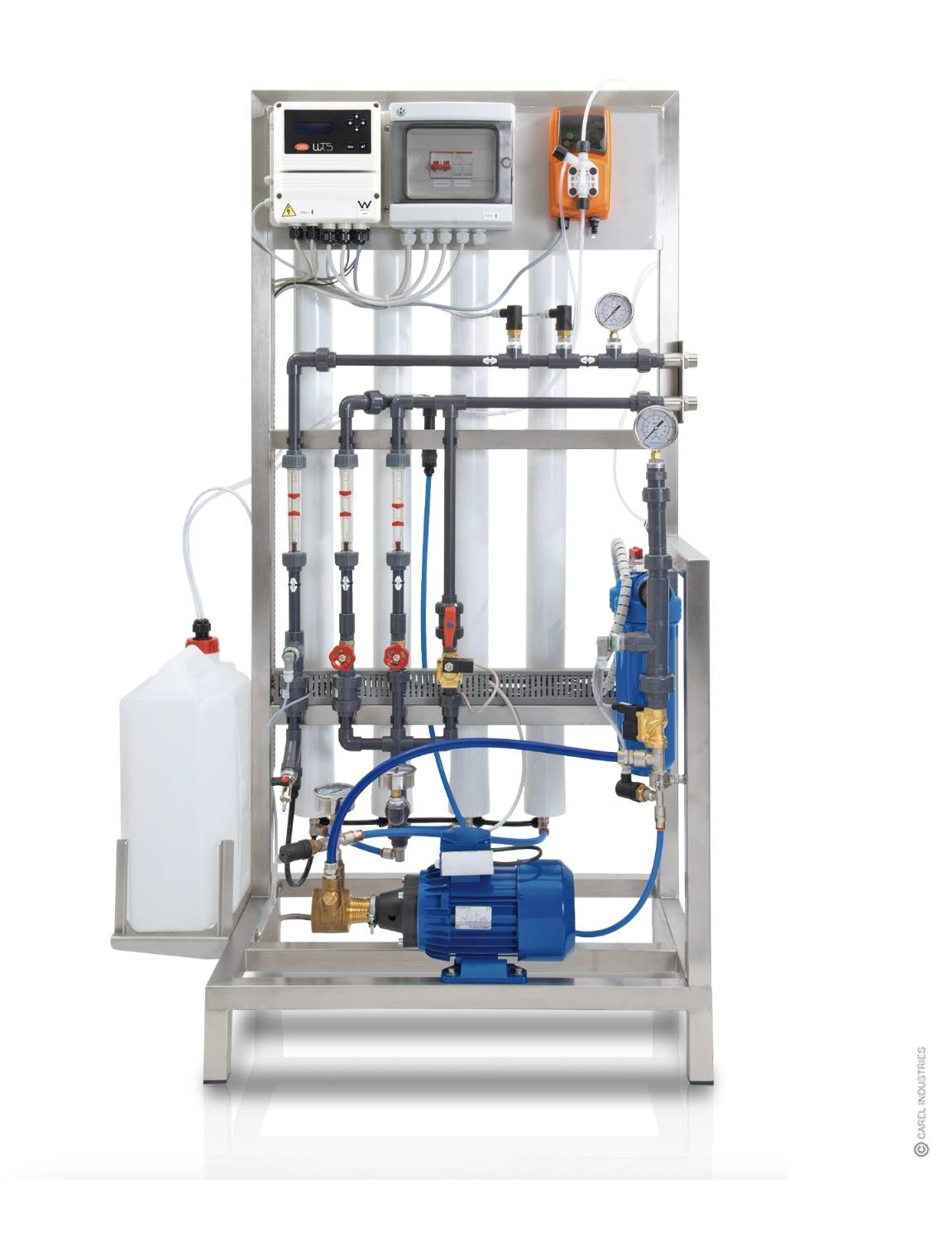

WTS Large ROL - Reverse Osmosis Water Treatment System

Verified by manufacturer 4 months ago

ROL160 - RO Water Production: 160 L/h

CAREL Variant:

Floor-standing water treatment system exploiting the reverse osmosis process for the production of demineralised water.

Jump to:
+44 (0)20 8391 3540 Website

Application

Suitable for use with high capacity steam and adiabatic humidifiers and with evaporative cooling systems.

Description

WTS Large ROL is a floor-standing water treatment system exploiting the reverse osmosis process for the production of demineralised water with suitable characteristics for feeding air humidifiers and evaporative coolers. Reverse osmosis is a technique by which the water to be purified is pumped at high pressure through a semipermeable membrane, whose pores measure less than 0.001 μm in diameter: most of the dissolved ions are filtered by the membrane, producing extremely pure water. The removal of minerals, measured as a percentage of the original content, varies from 95% to 99% and even higher. Automatic operation and limited running costs extend the use of this technology, with undisputed advantages.


Features and benefits:

  • Operating flexibility: two different levels of demineralisation, depending on the application downstream and the materials used, choosing either reverse osmosis or nanofiltration membranes.
  • Quick start-up: quick start-up thanks to the intuitive layout of the unit and clear and effective instructions.
  • Water saving: the type and arrangement of the membranes helps achieve a ratio of demineralised water produced to mains water consumed of up to 70%.
  • Simple and fast routine maintenance: simple and fast routine maintenance ensured by easy access to all the parts.
  • Built-in descaling system: a built-in dosing pump injects a descaling liquid to the incoming mains water, meaning no need for a softener prior to the RO unit up to 50°fH mains water total hardness.


Certifications:

CE, EAC and Watermark WMTS 101.

General information

Color

Silver

Black

White

Finish

Stainless steel

Manufacturer guidance

Floor-standing support structure

Material

Stainless steel

Manufacturer guidance

Floor-standing support structure

Shape

Rectangle

Length

510 mm

Guidance for specification option:

ROL160, ROL320

700 mm

Guidance for specification option:

ROL460, ROL600, ROL1K0, ROL1K2

Manufacturer guidance

Unit depth.

Width

940 mm

Guidance for specification option:

ROL160, ROL320

1090 mm

Guidance for specification option:

ROL460, ROL600, ROL1K0, ROL1K2

Height

1555 mm

Guidance for specification option:

ROL160, ROL320

1550 mm

Guidance for specification option:

ROL460, ROL600, ROL1K0, ROL1K2

Warranty description

Two year

Guidance for specification option:

Two year from manufacturing date as per CAREL General Conditions of Sales (https://www.carel.com/legal-notice).

Uniclass

Pr_60_55_97_72 Reverse osmosis unitsPrimary

Specification data - Reverse osmosis units

Water flow rate

160 L/h.

Manufacturer guidance

Reverse osmosis (RO) water flow rate.

Percentage recovery

50%.

Connection

G 3/4" M.

OD 15 mm push-in.

Manufacturer guidance

Reverse osmosis (RO) water connection.

Power consumption

950 W.

Power supply

Single-phase, 230 V a.c., 50 Hz (very high filtration).

Guidance for specification option:

Unit code: ROL1605000.

Single-phase, 230 V a.c., 50 Hz (high filtration).

Guidance for specification option:

Unit code: ROL160500B.

Single-phase, 230 V a.c., 60 Hz (very high filtration).

Guidance for specification option:

Unit code: ROL1606000.

Single-phase, 230 V a.c., 60 Hz (high filtration).

Guidance for specification option:

Unit code: ROL160600B.

Conditions

Operating: 5 to 40°C, 0–90% relative humidity.
Storage: 5 to 40°C, 0–90% relative humidity (non-condensing).

Ingress protection (IP) rating

IP20.

Connections

G 3/4" M (water fill).
G 3/4" M or OD 15 mm push-in (water drain).

Manufacturer guidance

Feedwater and drain water connections.

Water

Fill:
· Temperature limits: 5 to 25°C.
· Water pressure limits: 0.2 to 0.5 MPa (2 to 5 bar).
· Flow rate: 320 L/h.
· Total hardness: 0 to 50°fH.
· Specific conductivity limits: <=1000 μS/cm.
Drain:
· Temperature: <30°C.
· Instant flow rate: 160 L/h.

Manufacturer guidance

Feedwater and drain water.

Dimensions

940 x 1555 x 510 mm.

Manufacturer guidance

Width x height x depth.

Weight

75 kg.

Manufacturer guidance

Unit with water.

Integral accessories

Pressurised water storage (AUC*).

Atmospheric pressure water storage with booster pump (RT300M2000).

Accessories

None.

UV-C disinfection kit (ROKL00DBK1).

Descaler (ROKL00AS*).

Sustainability data

Country of product manufacture

Italy
