WTP Lateral Restraint Slip Ties
Verified by manufacturer 2 days ago
WTS3P
WTS3P
A range of lateral restraint slip ties/movement ties with debonding sleeves.
Application
Suitable for use as lateral restraint ties for movement joints.
Description
Stainless steel lateral restraint slip ties designed for use as lateral restraint ties for movement joints. De-bonding sleeves (WDS) are used on plain-ended wall ties at vertical movement joints. The tie will restrain the masonry against lateral wind loads but the sleeve will allow the masonry to expand or contract.
Type:
- Wincro WTS3P - Movement tie (safe end/plain end).
- Wincro WTP3U - Movement cramp with two outer 6 mm diameter holes and one central 7 mm diameter hole.
- Wincro WTP3P - Plain ended movement tie.
- Wincro WTP3C23/ WTP3C28/ WTP3C38 – Channel movement ties.
Features and benefits:
- Available as flat ties, cramps and channel ties.
- Provides lateral restraint.
- Available in a wide variety of types and sizes.
- Manufactured from corrosion resistant stainless steel.
- UKCA marked to BS EN 845-1.
General information
Color | Black Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. Plastic Guidance for specification option: WDS de-bonding sleeve. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | F30/282 Slip ties |
SKU Code | WTS3P, WTP3U, WTP3P, WTP3C23, WTP3C28, WTP3C38, WDS |
Product range |
Specification data - General-purpose slip ties
Classification data | |
Standard | To BS EN 845-1. |
Material | Stainless steel, grade 1.4301 (304). |
Length | 150 mm. 175 mm. 200 mm. 225 mm. 250 mm. 300 mm. |
Type | Safe end/ plain end movement tie. |
Accessories | None. WBEB. Guidance for specification option: Expansion bolt for fixing to concrete. WBPS. Guidance for specification option: Plug and screw for fixing to concrete. WBSD. Guidance for specification option: Zinc plated carbon steel self-drilling/self-tapping screws complete with neoprene isolation washer. WDS. Guidance for specification option: Wincro plastic de-bonding sleeve (120 mm). Installed with a 10 mm gap within the end of the sleeve to allow for expansion of the tie. WIP. Guidance for specification option: Neoprene isolating patch for fixing to steelwork. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. Plastic Guidance for specification option: WDS de-bonding sleeve. |
Recyclability | Stainless steel is highly recyclable |
Expected Life | 25 year |
Literature

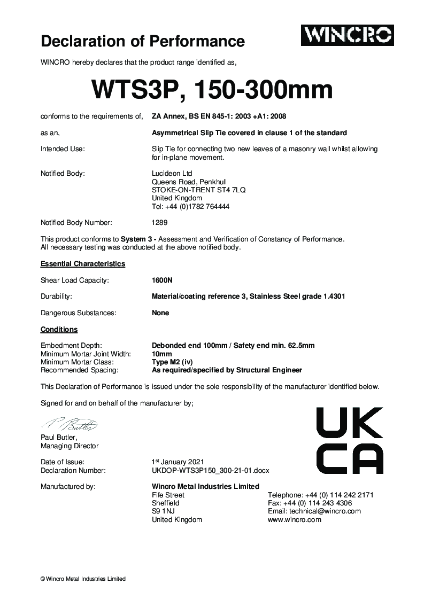

UKDOP-WTS3P150_300-21-01
UKDOP-WTP3U100_250-21-01

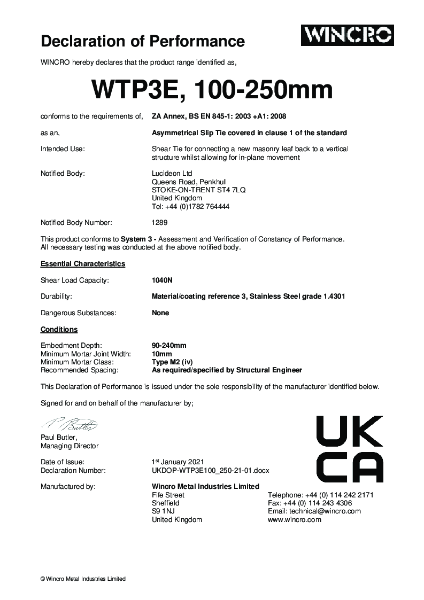

UKDOP-WTP3E100_250-21-01
