WT Stone Restraints
Verified by manufacturer 1 day ago
WSC/ST
WSC/ST
Certificate of Conformity
Certificate type
A range of stone cladding restraints.
Application
Suitable for restraining stone cladding.
Description
Versatile range of stone fixing ties and restraints that can be tied to masonry, bolted to steelwork, fixed into channels or directly onto concrete. Stone restraints are generally bespoke and made to order.
Features and benefits:
- Variations can be made to order and special designs can be produced on request.
- Manufactured from corrosion resistant stainless steel.
- Come with a holed upstand, plain or indented body (drip) and single or multiple holed end (for a loose dowel) or welded dowel pin end.
- UKCA marked.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | F30/290 Proprietary special fixings H51/230 Fixings – support |
SKU Code | WSC/ST, WSC/STC, WSC/STD, WSCC1, WSCC2, WSCC3, WSCC4, WSCC5, WSCC6, WSCC7, WSP/ST, WSP/STC, WSP/STD, WTDP3U, WTWD3U |
Product range |
Specification data - Masonry cramps
Classification data | |
Material | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). Guidance for specification option: Optional. |
Sizes | Manufacturer guidanceBespoke, made to suit. Contact manufacturer. |
Accessories | None. WIC. Guidance for specification option: Plastic insulation retaining clip. WDS. Guidance for specification option: Wincro plastic de-bonding sleeve WBSD. Guidance for specification option: Zinc plated carbon steel self-drilling/self-tapping screws complete with neoprene isolation washer. WIP. Guidance for specification option: Neoprene isolating patch for fixing to steelwork. WBXS. Guidance for specification option: Xylan-coated setscrews with nut and washers. WBPSX. Guidance for specification option: Plug and screw for fixing to concrete. WBEB. Guidance for specification option: Expansion bolt for fixing to concrete. WC28. Guidance for specification option: Wincro WC28 cast-in channel and WBT28 t-head bolts. WC38. Guidance for specification option: Wincro WC38 cast-in channel and WBT38 t-head bolts. |
Fixing | The support angle is welded to the bracket, which is normally fixed to concrete with expansion bolts. |
Angle | L-shaped. Guidance for specification option: For carrying the masonry. Manufacturer guidanceSupport angle. |
Type | Bracket angle support. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Recyclability | Stainless steel is highly recyclable |
Expected Life | 25 year |
Product certifications
Literature
Literature type

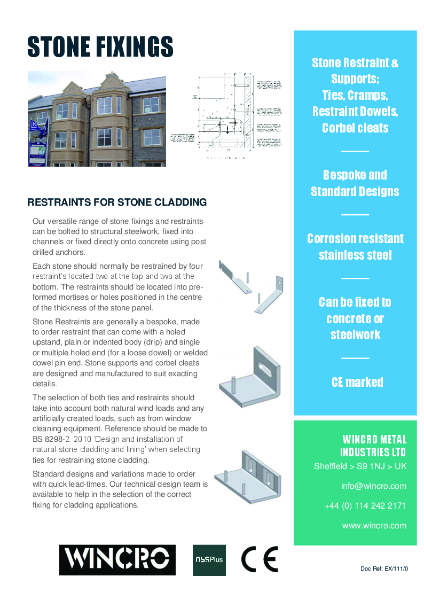

WT-Stone-Fixings-(EX-111-0)

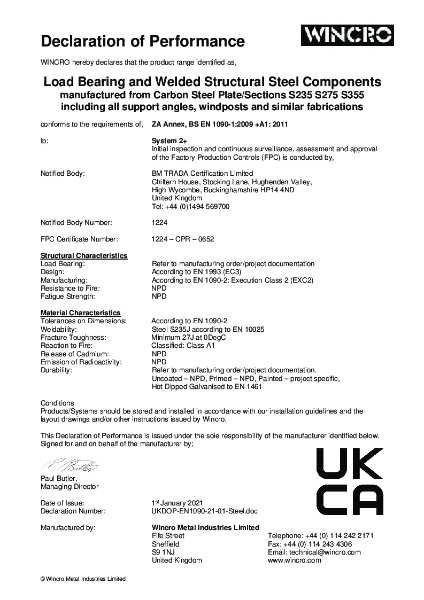

UKDOP-EN1090-21-01-Steel

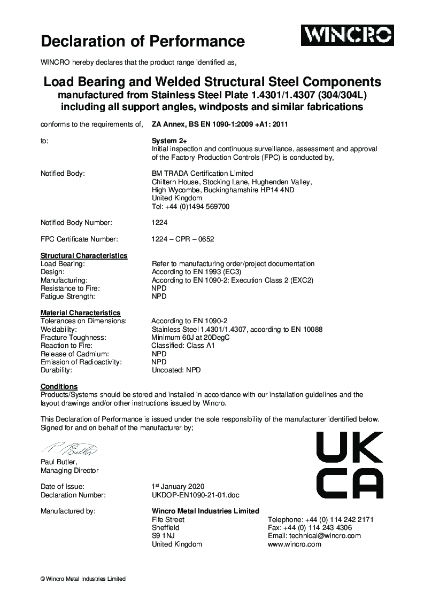

UKDOP-EN1090-21-01
