WSK 510 - Fireman's override switch
Verified by manufacturer 4 months ago
Fireman's override switch for smoke control panels WSC 310P/320P/5xx.
Application
- Used with smoke control panels type: WSC 310 P, WSC 320 P WSC 520, WSC 540, WSC 560.
- The unit is connected directly the smoke panel or to a break glass unit type WSK 5xx.
Description
WSK 510 is a fireman's override switch for smoke control panels. When the switch is triggered the windows will either open or close depending on the configuration.
The unit is connected directly to the smoke panel or a break glass unit.
Only for the British, German, Irish and Swiss market.
Features and benefits:
- Triggering of open/close override function in a smoke zone.
- The switch must be configured on the smoke control panel.
- The switch is configurable to have the highest priority in the smoke zone.
- Coloured LEDs for indicating fire triggering or if a fault is present on the system.
- Easy mounting/ installation.
- Lockable housing.
- Integrated cable monitoring, which is triggered by a cable break in the smoke unit (adjustable) housing in plastic.
- With data communication.
- Press buttons for Fireman’s override “OPEN” or “CLOSE” reset button (behind the door) after activation.
- Spare parts (glass, keys etc.) can be ordered separately.
General information
Color | Orange |
Material | Plastic |
Shape | Square |
Length | 125 mm |
Width | 125 mm |
Height | 36 mm |
Warranty description | Other |
Uniclass | |
CAWS | W90/120 Fire detection and alarm systems in domestic premises W90/125 Fire detection and alarm systems in non-domestic premises W90/336 Manual call points |
SKU Code | WSK 510 0005 |
Specification data - Manual call points
Integral red visual indicator | Required. Guidance for specification option: LED-display:
|
Mounting | Fully recessed. Guidance for specification option: For countersunk installation in standard built-in wall box. |
Voltage | 27 V d.c. (maximum). |
Ingress protection (IP) rating | IP40. |
Label | “SMOKE VENT”, “FIREMAN’S OVERRIDE” and “OPEN CLOSE” text labels. Guidance for specification option: Fireman’s override switch, “SMOKE VENT” text labels in 22 languages, “FIREMAN’S OVERRIDE” and “OPEN CLOSE” text labels in English, German, French and Italian. |
Sustainability data
Material | Plastic |
Literature

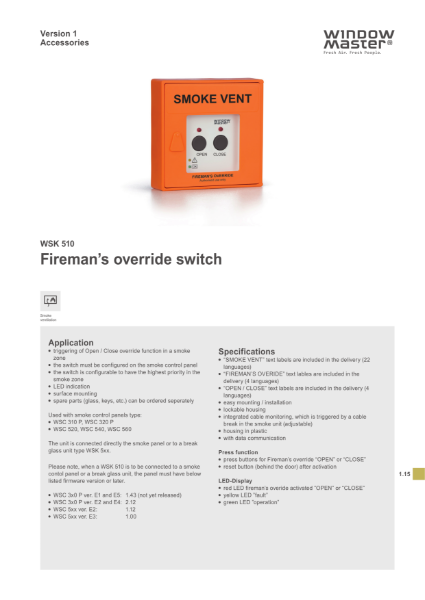

WSK 510 Data Sheet
