WSC 520 / 540 / 560 - Smoke Ventilation Panel
Verified by manufacturer 6 months ago
WSC 520
WSC 520
Modular smoke ventilation panel 20–60 A.
Application
- For heat and smoke ventilation (H&S) and daily comfort ventilation.
- Can be used in larger and medium-sized buildings e.g. shopping centres, schools or sport/leisure facilities.
- Can be used in very large buildings by linking several panels together.
Description
Modular smoke ventilation panel for the control of ±24 V d.c. motors and motors with MotorLink® for smoke ventilation and daily comfort ventilation. Comfort ventilation is also possible with KNX or BACnet IP due to bus technology together with e.g. NV Advance®. The linking of panels can be carried out from the beginning or later via CAN. Distance between two smoke control panels up to 250 m with a maximum total distance of 1000 m. Built-in uninterruptible power supply for a minimum of 72 hours in case of power loss (batteries are to be ordered separately).
Features and benefits:
- Only one type of group (each group can be set as H&S and/ or natural ventilation).
- Low power consumption.
- 20 A, 40 A or 60 A as standard per panel, more panels can easily be linked without any additional modules.
- For both ±24 V standard motors and/or motors with Motorlink®.
- Easy configuration via the built-in touch screen.
- Less cabling as the panel uses bus technology.
- Wind direction depending H&S ventilation is standard, additional modules are not needed.
General information
Color | Grey |
Material | Metal |
Shape | Rectangle |
Length | 210 mm |
Warranty description | Other |
Uniclass |
SKU Code | WSC 520, WSC 540, WSC 560 |
Specification data - Smoke and heat exhaust control panels
Classification data | |
Enclosure | |
Ingress protection (minimum) | IP54. |
Material | Metal. |
Colour | Grey (RAL 7035). |
Nominal voltage | 1 x 230 V a.c. |
Nominal frequency | 50 Hz. |
Outputs | 20 A. |
Batteries | |
Type | Back-up battery type WSA 017. |
Voltage | 12 V/17–18 Ah. |
Battery autonomy (stored energy time at rated power) | >72 hours. Guidance for specification option: In accordance with EN 12101-10. |
Mounting | Surface mounting. |
Standard | To EN 12101-10. |
Modules | WSA 5PS Power supply module 20 A with 1 pcs. end of line module WSA 510. WSA 5MC NCO Overall control module without field bus interface. WSA 5MC KNX Overall control module with field bus interface for KNX/BACnet IP. WSA 5IO Input/output module. WSA 5SM Motor module for ±24 V standard motors with 4 pcs. end of line module WSA 510. WSA 5ML Motor module for MotorLink® motors. Manufacturer guidanceRefer to data sheet for details. |
Accessories | None. WSK 501 000x Break glass unit with signal, primary, plastic housing, with data communication. Guidance for specification option: Smoke detectors and keypads can be connected to the break glass unit. Colour of the housing = x: red = 1, yellow = 2, grey = 3, orange = 5. WSK 502 000x Break glass unit with signal, primary, metal housing, with data communication. Guidance for specification option: Smoke detectors and keypads can be connected to the break glass unit. Colour of the housing = x: yellow = 2, grey = 3, orange = 5. WSK 503 000x Break glass unit with signal, primary, plastic housing, with data communication. Guidance for specification option: Smoke detectors and keypads can not be connected to the break glass unit. Requires FlexiSmoke™ firmware version 0.85 or later. Colour of the housing = x: red = 1, yellow = 2, grey = 3, orange = 5. WSK 504 000x Break glass unit with signal, primary, metal housing, with data communication. Guidance for specification option: Smoke detectors and keypads can not be connected to the break glass unit. Requires FlexiSmoke™ firmware version 0.85 or later. Colour of the housing = x: yellow = 2, grey = 3, orange = 5. WSA 311 Smoke detector. WLA 331 Rain sensor. WLA 330 Rain/wind sensor. WLA 340 Rain/wind sensor, with pulse output. WSA 510 End of line motor module with resistance. WLL 501 10 kΩ resistance. WSA 306 Fire alarm system module. WLL 604 Cable for wind and rain sensor WLA 340, 4 m UV-resistent cable 4 x 2 x 0.75 mm². WLL 7xx Cables for comfort ventilation. Guidance for specification option: See separate product sheet for further information. WLL 8xx Cables for smoke ventilation. Guidance for specification option: See separate product sheet for further information. WSA 333 Cable glands for smoke panels. WCA 304 USB stick for log-data, back-up and firmware updates. WSK 110 0A0B Comfort keypad for 1 window or 1 window group. WSK 120 0A0B 0A0B Comfort keypad for 2 windows or 2 window groups. |
Sustainability data
Material | Metal |
Literature

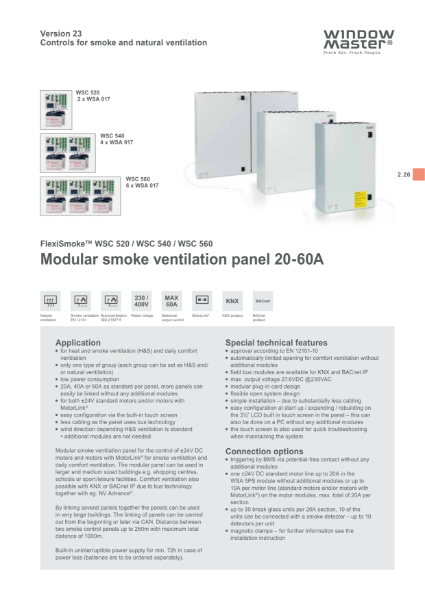

WSC 520 / 540 / 560 Data Sheet
