Worktops - Fitted Furniture
Verified by manufacturer 2 months ago
Trespa TA/16
Trespa TA/16
Constructionline
Certificate type
CHAS
Certificate type
A range of worktops for healthcare applications.
Application
Suitable for healthcare, education, veterinary, MOD, prison and dental applications.
Description
A range of worktops for healthcare applications. Available in laminate, Trespa, Corian, stainless steel, timber lipped and ABS lipped.
Features and benefits:
- Laminate worktops offer a durable, affordable, hygienic, and easy to clean solution, which can withstand the day-to-day demands of a hospital environment.
- Trespa worktops provide excellent resistance to solvents, good resistance against heat and discolouration, together with excellent durability.
- Corian® Worktops offer a durable, hygienic and non-porous work surface which can withstand the frequent spills and hard scrubbing required to maintain a sterile healthcare environment.
- Stainless steel worktops are hygienic and comply with the Department of Health’s Health Building Note 00-01 Part C: Sanitary assemblies (formerly HTM:64). Particularly suitable for catering rooms and laboratories.
- Timber lipped worktops are constructed from a 0.9 mm thick laminate, bonded on to either an 18 mm thick MDF or a moisture-resistant particleboard core, with a softwood sub-frame.
- ABS lipped worktops are an affordable and more flexible option, suitable for office and admin areas. They can be supplied with either an internal radius to L shaped worktops or radiused end.
General information
Color | Beige Black Blue Brown Cream |
Material | Laminate Stainless steel Solid grade laminate (SGL) Corian |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N10/125 Desks and tables N10/130 Laboratory furniture |
Specification data - Worktops
Material | Trespa. |
Dimensions | |
Plan size | Manufacturer guidanceInsert requirements or refer to a drawing. Lengths from 100 mm to 3000 mm are supplied in one piece. Lengths over 3000 mm will be manufactured in more than one piece with a precise factory joint. The standard depth is 600 mm. Varying depths from 300 mm minimum to 900 mm maximum can be supplied. |
Thickness | 16 mm. |
Exposed edges | |

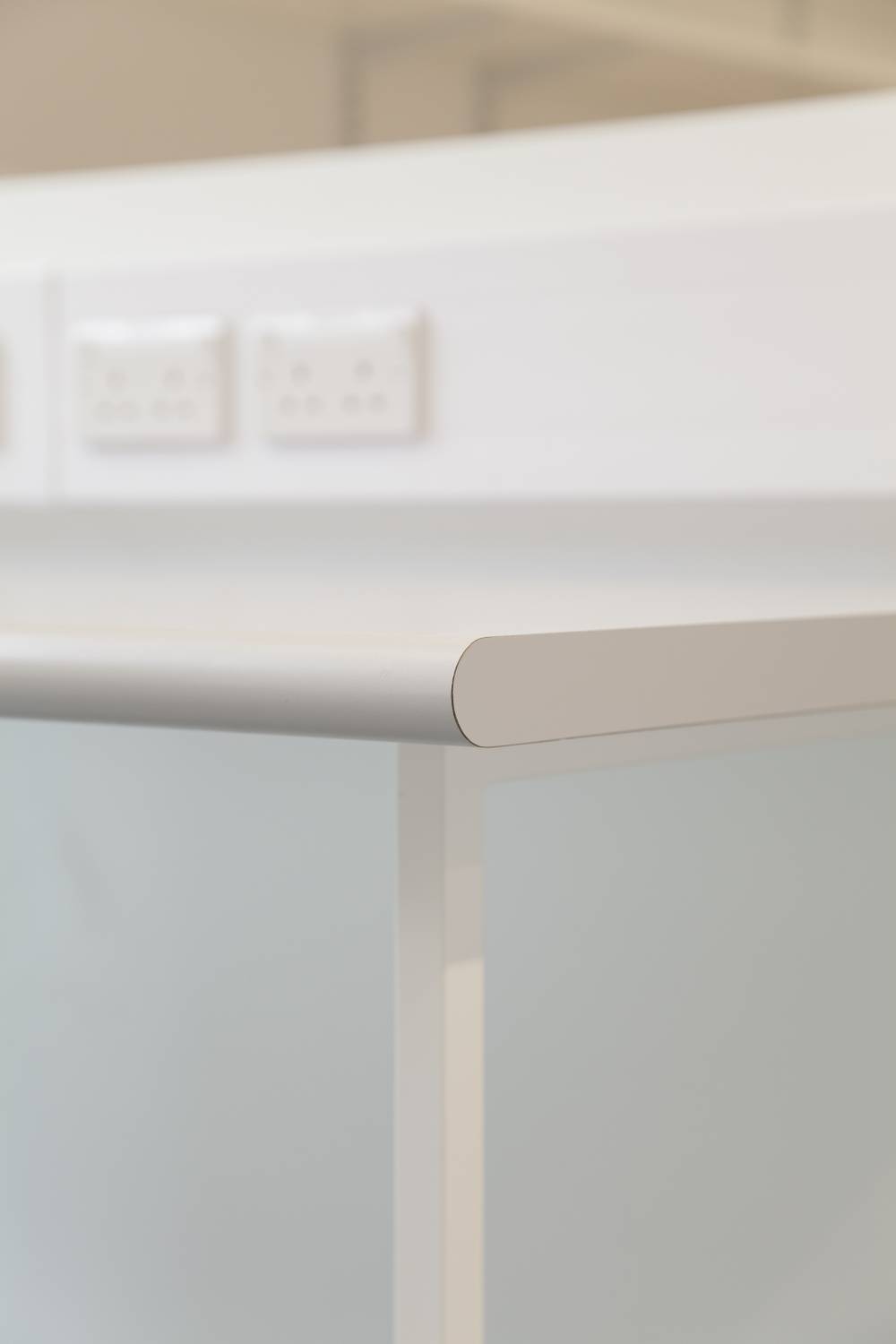

Profile | 1 x 1 mm chamfer. |
Upstands | |
Finish | |
Height | |
Cutouts | Not required.Required. |

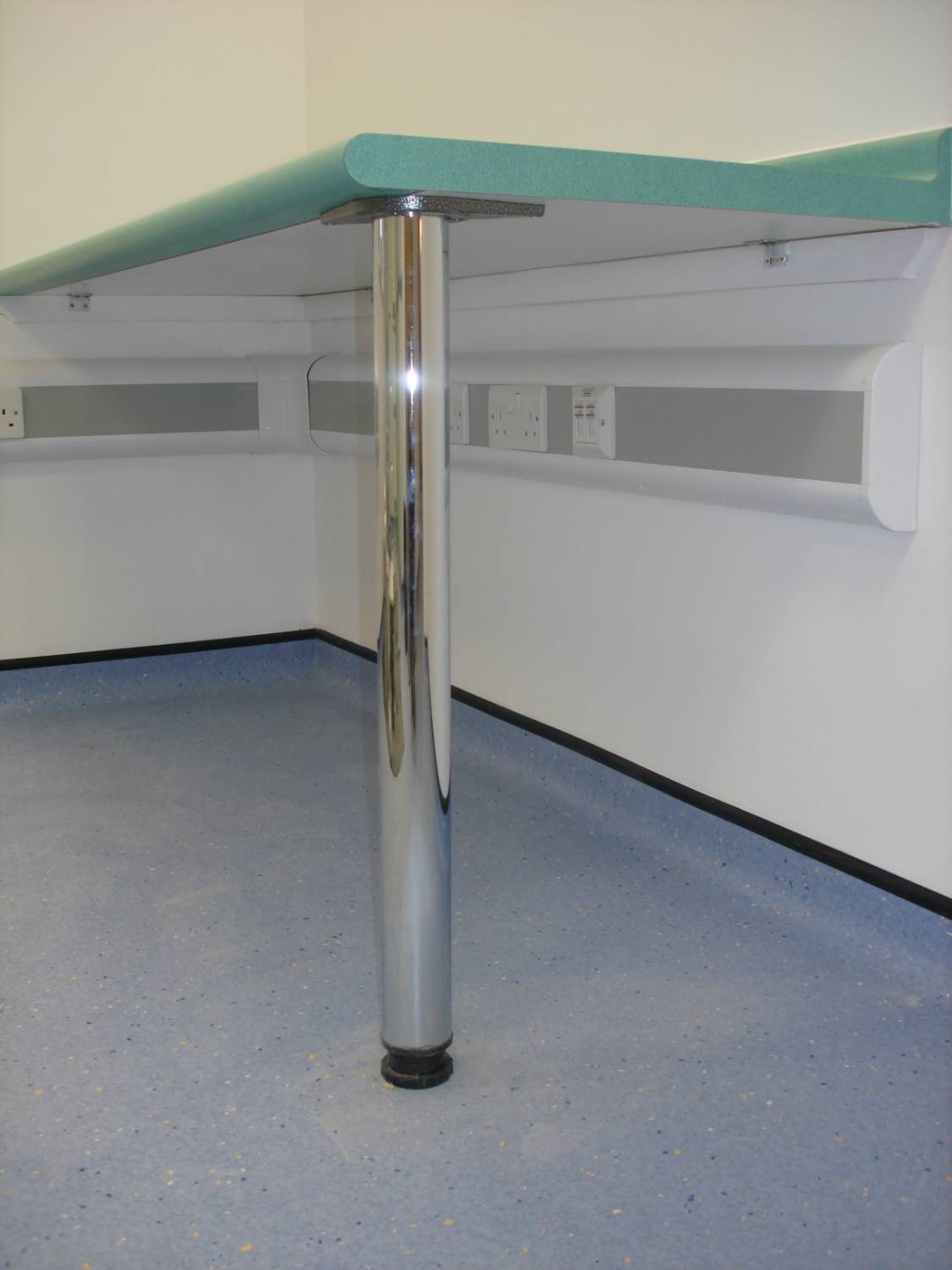

Integral accessories | None.Support legs, specified separately.80 mm diameter cable outlet.Support legs. |
Accessories | None. Loose upstand PFUP/2000. Guidance for specification option: 50 x 18 mm. |
Fascia | None. F - Front only. FB - Front and back. FL - Front and left. FR - Front and right. |
Fascia height | Not required. 40 mm. 55 mm. 100 mm. |
Upstand | None. U - Back only. UL - Back and left. UR- Back and right. ULR - Back, left and right. |
Joints | No mitre joints required. 45° mitre joints - ML. Guidance for specification option: Left hand mitre. 45° mitre joints - MR. Guidance for specification option: Right hand mitre. Manufacturer guidanceCustom made, preformed 45° mitre joints can be supplied on request. |
Panel ends | Not required. Factory finished faced ends - EL. Guidance for specification option: Left hand end. Factory finished faced ends - ER. Guidance for specification option: Right hand end. Factory finished splayed end. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Laminate Stainless steel Solid grade laminate (SGL) Corian |
Recyclability | Non-reusable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 30 year |
Third party certifications
