Wire Basket - Cable Basket

Verified by manufacturer 7 days ago

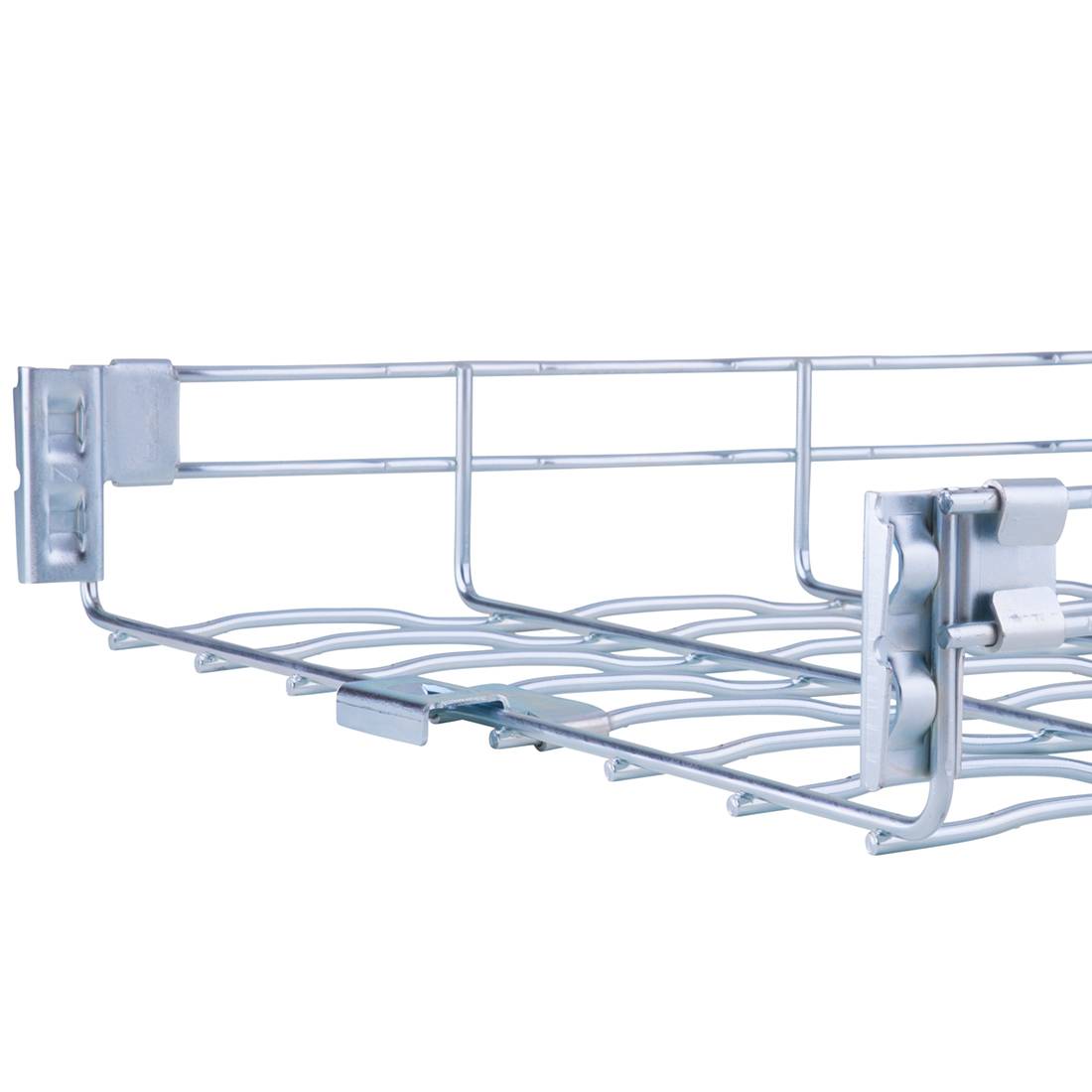

Standard Wire Basket 35 mm Height

Marshall-Tufflex Ltd Variant:

Wire Basket allows simple routing of power and data cables within sections of metal basket offering enhanced cable ventilation and a high level of resistance to cable movement.

Jump to:
Request BIM
+44 (0)1424 856600 Website

Application

Suitable for use in heavy industry environments such as power plants, airports, tunnels, bridges, railways and underground environments.

Description

Basor Wire Basket is a popular and effective solution for installing power and data cables. Sections of the strong and lightweight basket provide a sturdy platform for the cables, supporting their weight and giving an excellent aesthetic finish.

Features and benefits:

  • Integral couplers for quick and easy connection in just two steps and only four seconds.
  • Reduced installation time results in saving labour costs.
  • Ripple design offers cable ventilation and a high level of resistance to cable movement.
  • Simple manipulations to the wire basket can overcome complicated changes in direction.
  • Safety edges to prevent cable damage and personal injury.
  • High cable capacity.
  • Electro-zinc finish.
  • Fire resistant to DIN 4102-12 E90.
  • Complies with Low Voltage Directive 2014/35/EU and The Electrical Equipment (Safety) Regulations 2016.
  • CE and UKCA marked.

General information

Color

Silver

Finish

Zinc plated

Stainless steel

Galvanized

Material

Steel

Stainless steel

Shape

Rectangle

Length

3000 mm

Width

60 mm

100 mm

150 mm

200 mm

300 mm

Show more

Height

35 mm

65 mm

Uniclass

Pr_65_70_11_12 Cable basketsPrimary

CAWS

V90/335 Cable baskets

Specification data - Cable baskets

Classification data

Standard

To BS EN 61537.

Material

Steel.
Stainless steel grade 1.4401 (316).

Guidance for specification option:

Subject to minimum order quantity orders and longer lead times.

Available specified only with 'none' finish, see 'coating material' below.

Coating material

Electro-zinc.

Guidance for specification option:

Standard.

Hot-dip galvanized.

Guidance for specification option:

Subject to minimum order quantity orders and longer lead times.

None.

Guidance for specification option:

Available specified with 'stainless steel grade 1.4401 (i316)', see 'Material' above.

Sizes

-

Width

100 mm.
150 mm.
200 mm.
300 mm.

Side height

35 mm.

Features

-

Segregation

Not required.
Cable dividers.

Guidance for specification option:

Available with self fixing dividing fillets at 35 and 60 mm.

Insert requirements.

Manufacturer guidance

See 'accessories

Protective cover

Not required.
Cover 100 mm.

Guidance for specification option:

MT2/1312.

  • 102 x 3000 mm (width x length).
  • 0.55 kg/m.

Cover 150 mm.

Guidance for specification option:

MT2/1313.

  • 152 x 3000 mm (width x length).
  • 0.76 kg/m.

Cover 200 mm.

Guidance for specification option:

MT2/1314.

  • 202 x 3000 mm (width x length).
  • 0.98 kg/m.

Cover 300 mm.

Guidance for specification option:

MT2/1316.

  • 302 x 3000 mm (width x length).
  • 1.55 kg/m.

Cover 400 mm.

Guidance for specification option:

MT2/1317.

  • 402 x 3000 mm (width x length).
  • 2.19 kg/m.

Cover 500 mm.

Guidance for specification option:

MT2/1318.

  • 502 x 3000 mm (width x length).
  • 3.11 kg/m.

Cover 600 mm.

Guidance for specification option:

MT2/1318.

  • 602 x 3000 mm (width x length).
  • 3.95 kg/m.

Manufacturer guidance

  • Cover eliminates dirt and dust build-up on cables.
  • Provides physical protection for cables.
  • Galvanized steel finish.
  • To mount the cover no accessories are needed; fixed by pressure.

Consult manufacturer for compatibility with specified basket size.

Accessories

Fast clip on couplers.

Guidance for specification option:

Available at 35 or 65 mm.

Basket connector bolt.
Basket connector bracket.
Nut and bolt.
Ceiling support plate.

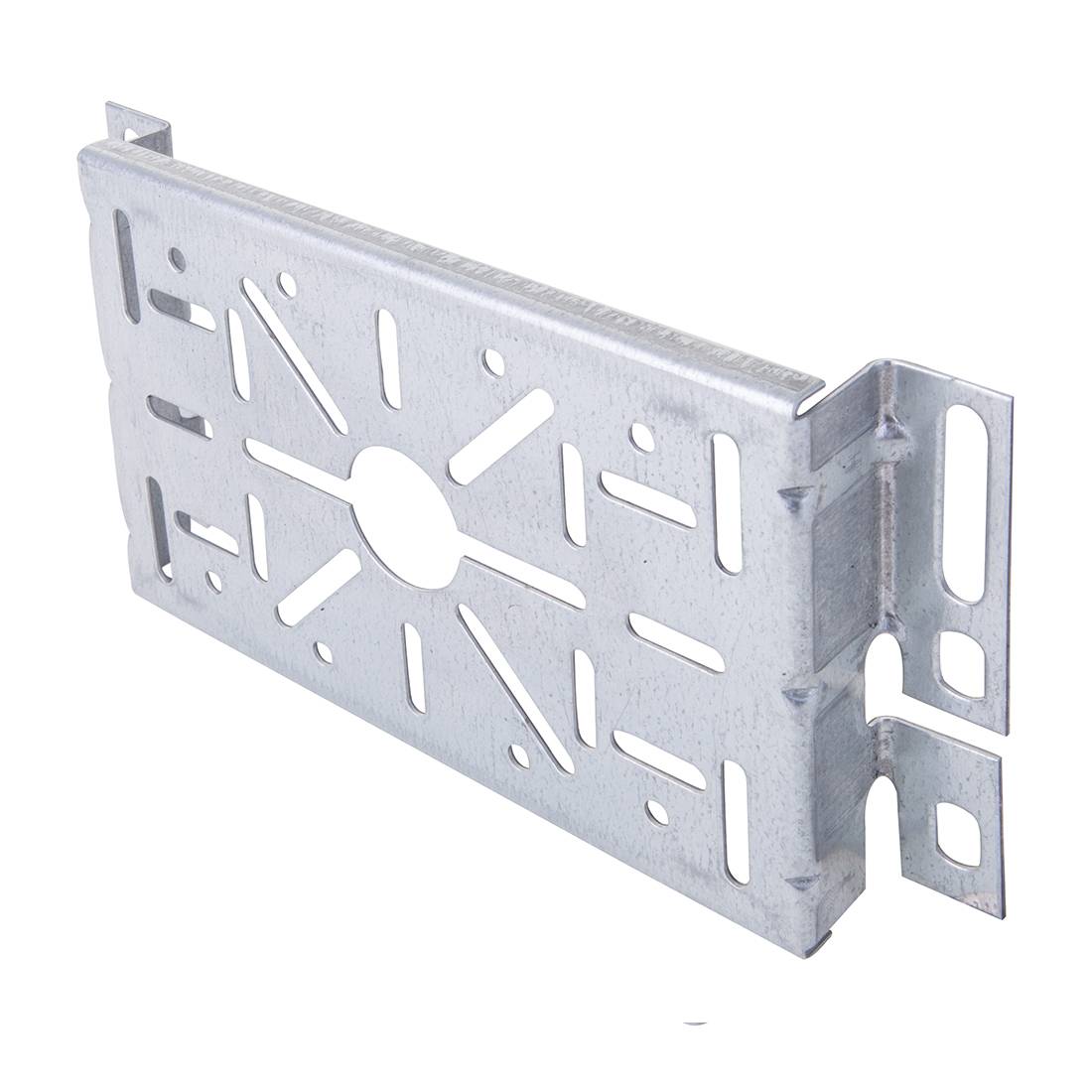

Wall bracket support plate.
Conduit feed plate.
Universal box plate.

Guidance for specification option:

Available as large or small universal box plate.

Side support clip - 65 mm.
Cable drop out plate.
Bend connector bolt.
Side support clip.
Floor bracket.
Lighting attachment plate.
Multi-union joint.
Cutting tool.
Spray paint 98% zinc.
Clip to secure basket to strut.
Variable support bracket.
M8 threaded rod.
M8 nut.
Earth bonding connector.
Fast fix wall bracket.

Guidance for specification option:

Available as 100, 150, 200, 300 and 400 mm.

Wall bracket supporting piece.
Fast fix ceiling bracket.

Guidance for specification option:

Available as 100, 150, 200 and 300 mm.

Stand off bracket.

Guidance for specification option:

Available as 100, 150, 200, 300, 400, 500 and 600 mm.

Fast fix suspension frame base.

Guidance for specification option:

Rods sold separately.

Available as 100, 150, 200, 300, 400, 500, and 600 mm.

Support strut leg.
Cablelay matting class 0.

Guidance for specification option:

Available as 60, 100 150, 200, 300, 400, 500, 600 mm.

Cablelay is laid within lengths of wire basket or tray to protect cables from protrusions, sharp edges, rough surfaces and kinking ridges thus maintaining the integrity of the cables.

Cablelay tape.

Fire resistance

To DIN 4102-12, E90.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Steel
Stainless steel

Recyclability

100

Literature

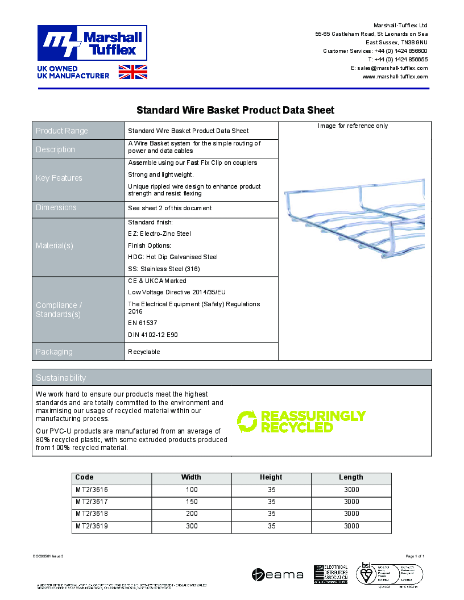

DOC03561-Standard-Wire-Basket

DOC03561-Standard-Wire-Basket

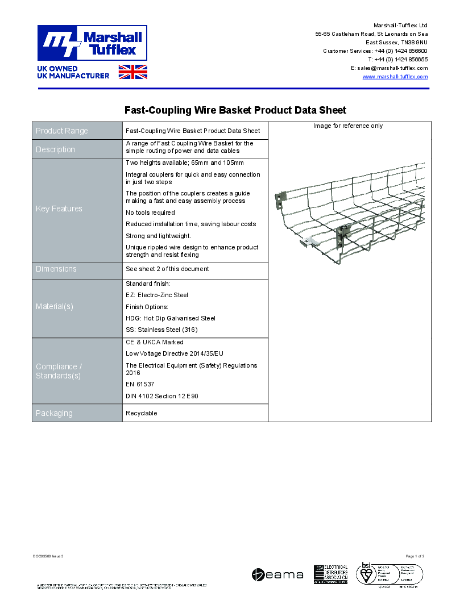

DOC035603

DOC035603

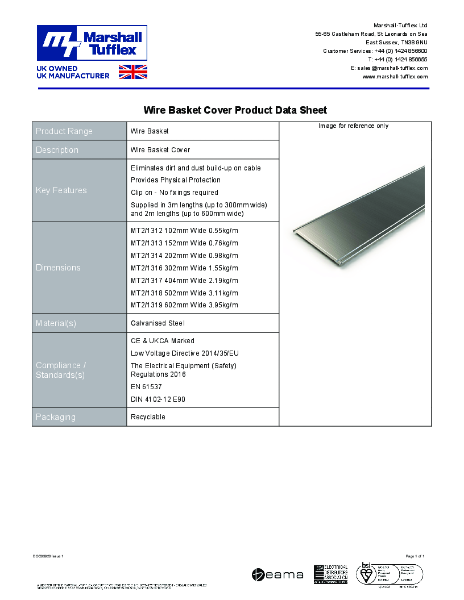

Wire-Basket-Cover

Wire-Basket-Cover

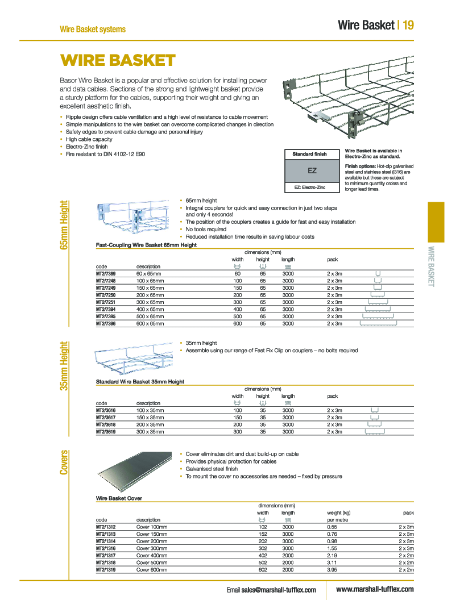

Wire Basket Catalogue

Wire Basket Catalogue
