Window Trickle Ventilator AR60
Verified by manufacturer 2 months ago
Self-regulating flap vent with external hood for improved weather protection
Application
- Developed for glazed-in installation, and can be integrated in aluminium, timber and PVC window profiles with a depth of 20, 24 or 28 mm.
- Optionally installed at transom, using the additional transom profiles.
Description

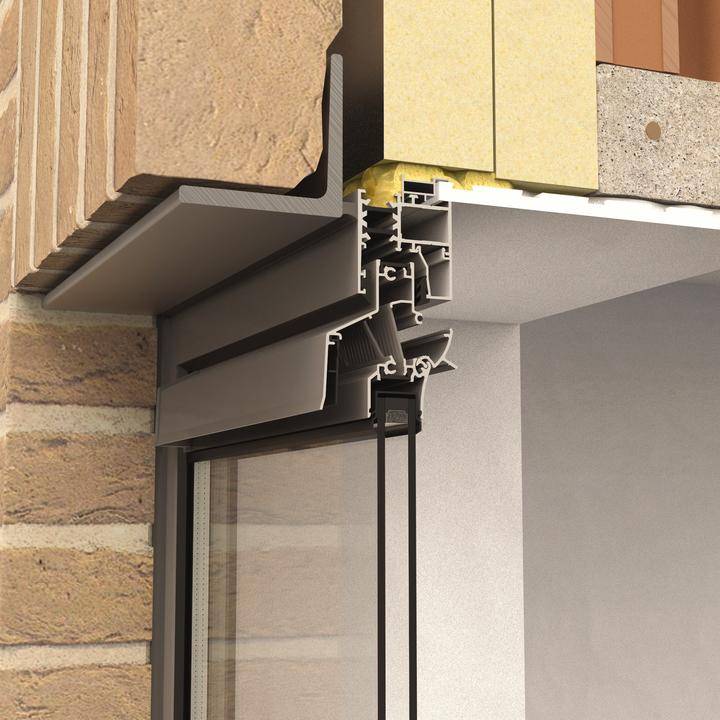

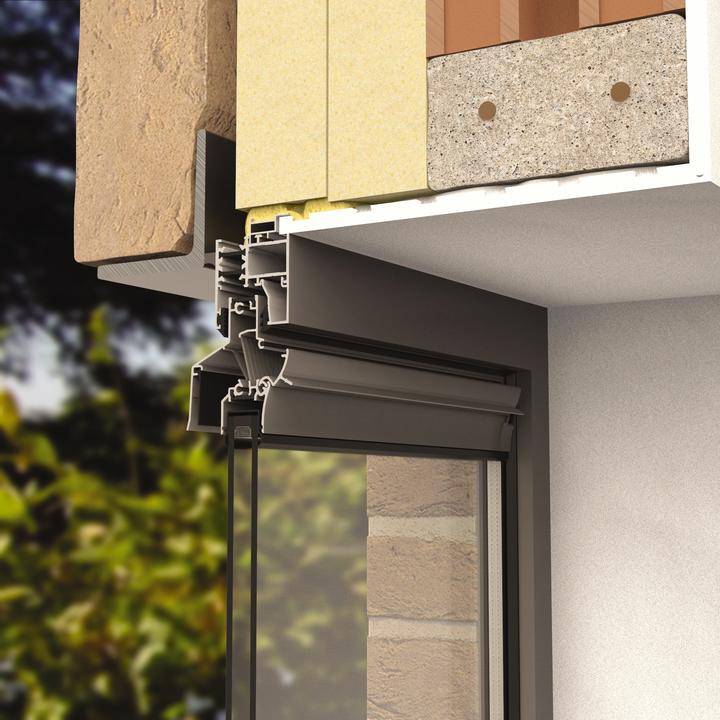

The AR60 is a self-regulating flap vent with external hood for improved weather protection. The interior profile deflects the incoming air upwards so that fresh air is optimally spread in the room. It has been developed for glazed-in installation, and can optionally also be installed at transom, using the additional transom profiles.
Features and benefits:
- Developed for glazed-in installation.
- Thermally broken - no cold air can transfer from outside to inside.
- External hood for additional weather protection.
- I-FLUX® self-regulating flap.
- Ensures the supply of fresh and healthy air without draughts.
- Optimal spread of fresh air in a room.
- The perforated inside profile acts as an insect mesh.
- The AR60 is also available with permanently open clips (e.g. for open gas appliances).
General information
Color | Other |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke 3500 mm |
Height | 76 mm |
Uniclass | |
CAWS | L10/400 Composite windows L10/33 Proprietary windows L10/31 PVC-U windows L10/30 PVC-U windows L10/25 Aluminium windows L10/20 Steel windows L10/10 Wood windows L10/15 Wood windows L10/390 Proprietary windows L10/350 PVC-U windows L10/330 Aluminium windows L10/310 Steel windows L10/210 Wood windows H11/110 Curtain walling |
Product range |
Specification data - Overhead ventilators
Installation type | Glazed-in.At transom. |
Thermal performance | Thermally broken. |
Acoustic performance | 27 (0;0) dB (open). |
Watertightness | Up to 650 Pa (closed position). |
Wind resistance (minimum) | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Ventilation rate (minimum) | 11.8 l/s/m at 2 Pa. |
Design aperture | |
Height | 76 mm. |
Length | Guidance for specification option: Insert requirements:
|
Finish | Polyester powder coating. |
Colour | RAL colour.Guidance for specification option: Consult manufacturer and insert requirements. |
Operation | Cord.Manual.Rod. |
Accessories | Self-regulating ventilation flap.Guidance for specification option: Controllable internal flap: 5 stepped positions. |
U-value | 4.5 W/m²K. |
Air leakage | <15% (in closed position) at 50 Pa. |
Glass thickness | 20 mm. 24 mm. 28 mm. |
Sustainability data
Material | Aluminium |
Similar products from Renson Fabrications Ltd

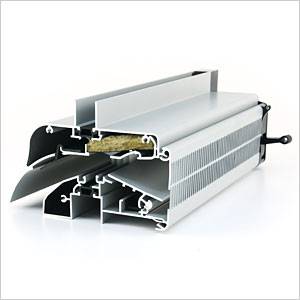

Window Acoustic Trickle Ventilator Sonovent
