Wilton 2016 (D10 SR4) - Doorset

Verified by manufacturer 5 months ago

Wilton 2016 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

The Wilton 2016 doorset is developed to resist experienced attempts at forced entry of government or commercial premises.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

Commercial or government premises.

Description

The doorset has been developed to resist experienced attempts at forced entry of government or commercial premises, with no regard to noise. Approved for Government use, contact NPSA for further details.


External doorsets are CE and UKCA marked to EN 14351-1. Internal non-fire-rated doorset third-party certified.


Wilton 2016 doorsets are fully certified with single outward opening leaves.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Primed

Painted

Stained

Other

Veneered

Show more

Material

Timber

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

To EN 14351-1, BS EN 1634-1.

Configuration

Single-leaf, single-action.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

1000 x 2100 mm.

Guidance for specification option:

Width x height.

Manufacturer guidance

For maximum allowable sizes outside of approved security sizes, contact manufacturer for further details depending on fire rating. Any other size outside (above or below) the above sizes will have to be taken at client’s risk.

Performance

-

Fire resistance

-

Integrity

To BS EN 1634-1, FD30.

To BS EN1634-1, FD60.

Acoustic performance

To BS EN ISO 10140-2: 2010 sound reduction in Rw 30 dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 35 dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 40 dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 45 dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 50 dB.

Manufacturer guidance

  • Acoustic Rating of 35 dB will have an additional leaf tray planted on the Push side of the door leaf.
  • Acoustic Rating of 40 dB will have an additional leaf tray planted on the Push side of the door leaf and additional acoustic frame to the push side of the frame.
  • Acoustic Rating of 45 dB will have an additional leaf tray planted on the Push side of the door leaf and additional acoustic frame to the push side of the frame.

Intruder resistance

-

Minimum requirement

Contact NPSA for further Details. LPS 1175 Issue 8.

Conformity

Contact NPSA for further Details.

Bullet resistance

-

Manufacturer guidance

BS EN 1522: FB4 to FB6 available for certain configurations. Please contact Stafford Bridge for further details.

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C15/C25 available for certain configurations. Please contact Stafford Bridge for further details.

Frame

-

Material

Steel wrapped frame with steel reinforced timber infill.

Species

-

Manufacturer guidance

  • If painted, Utile hardwood used.
  • If veneered finished is specified, match species to the veneer type.
  • If FD30 ash is used but cannot if FD60 fire rating.
  • If any fire rating, Beach Hardwood cannot be used.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Threshold

No threshold.

6 mm Stainless steel 304/ 316 soleplate (threshold).

6 mm Stainless steel 304/316 soleplate (threshold) with a 15 mm upstand.

Exitex CDT100 low level aluminium threshold.

Exitex CDT100 low level aluminium threshold on top of the 6 mm Stainless steel Soleplate (Threshold).

Perimeter seals or inserts

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Full paint finish.

Primed ready for site finish.

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Door leaf

-

Thickness

Minimum 56 mm.

Guidance for specification option:

  • Non-fire rated Doors = Minimum 56 mm.
  • Fire Rated Doors = Up to 64 mm.


Core

Solid hardwood.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.

Facings

Formica laminated – Internal – MDF sheets under laminate.

Formica laminated – External – Ply sheets under laminate.

Acrovyn laminated – Internal – MDF sheets under laminate.

Acrovyn laminated – External – MDF sheets under laminate.

Hardwood Veneered – Internal – MDF sheets under Veneer.

Hardwood Veneered – External – Ply sheets under Veneer.

If Painted and internal – MDF sheets to both faces of door leaf.

If Painted and external – Ply sheets to both faces of door leaf.

Cut

Crown cut veneer.

Quarter cut veneer.

Lippings

Painted.

Veneered.

Laminated.

Manufacturer guidance

Non-Fire rated:

  • Painted: 8 mm Hardwood Lipping’s
  • Veneered: 8 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain.
  • Laminated: 8 mm Hardwood Lipping, Species to be determined by customer.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Factory stain.

Full paint finish.

Laminated.

Primed ready for site finish.

Sealed.

Veneered.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

  • Painted steel beading as standard.
  • Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm.

None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for Fire resistance.

Beading

-

Type

External.

Internal.

Hardwood cloaked.

Steel beading (manufacturer's standard).

Material

Steel.

Hardwood.

Guidance for specification option:

If cloaked, then will be hardwood over the steel beading to match the door leaf finish.


Fixing

Manufacturers standard (steel beading) machine screws.

Guidance for specification option:

If cloaked, then this will be fixed to the vision panel using machine screws in a brass screw cup.

Door accessories

Door Contacts.

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators.

Door selectors.

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of multi-point locking systems provided by Surelock McGill Ltd.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


To match frame.

Guidance for specification option:

If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame

Wood appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Finish

Primed ready for site finish.

Sealed.

Factory stain.

Full paint finish.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Timber

Steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

BRE Certificate

BRE Certificate

Wilton Doorset LPS 1175 Certificate

Literature

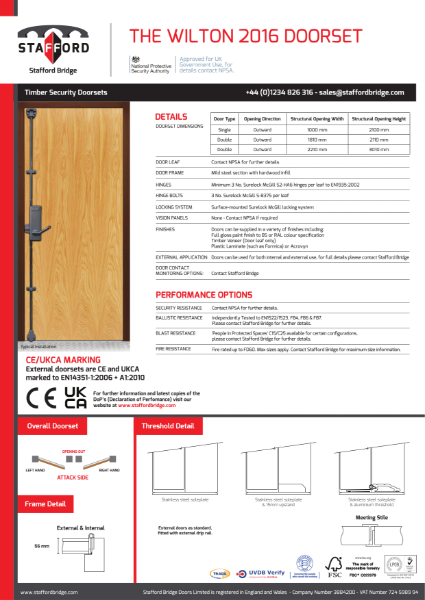

Wilton 2016
