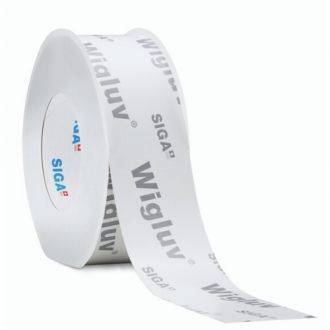

Wigluv® (External Airtightness Tape) - Airtight Tape
Verified by manufacturer 1 month ago
Wigluv® 60
Wigluv® 60
Passive House Institute - Certificate
Certificate type
Single-sided, diffusible and rainproof high-performance adhesive tape.
Application
Suitable for permanent windtight bonding of component layers outdoors.
Description
Single-sided, diffusible and rainproof high-performance adhesive tape.
The range comprises:
- Wigluv® 60: Diffusible, rainproof adhesive tape for wind tight bonding of roof and façade membranes. 60 mm wide.
- Wigluv® 100: Diffusible, rainproof adhesive tape for wind tight bonding of under-roof and façade panels. 100 mm wide.
- Wigluv® 150: Diffusible, rainproof adhesive tape for wind tight bonding of under-roof and façade panels. 150 mm wide.
- Wigluv® 20/40: Diffusible, rainproof adhesive tape with slit backing strip for airtight connection to window and door frames. 20/ 40 mm wide.
- Wigluv® black: Diffusible, UV-stable adhesive tape for wind tight bonding of visible façade membranes. 60 mm wide.
- Wigluv® black 20/40: Diffusible, UV-stable adhesive tape with slit backing strip for windtight connection to window and door frames. 20/ 40 mm wide.
Features and benefits:
- High permanent adhesive strength.
- Non-drying and non-embrittling without caoutchouc, resin or solvent.
- Can reliably and durably follow structural movements.
General information
Color | Grey |
Finish | Gloss |
Material | Polyolefin |
Shape | Formless |
Length | 25000 mm 40000 mm |
Width | 60 mm 100 mm 150 mm |
Height | 1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | H20/155 Sheet cladding (attached to timber battens) H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding G10/20 Steel framing system G10/150 Steel framing system K11/485 Wall sheathing P10/50 Insulation supported between joists P10/45 Insulation laid between floor joists P10/42 Mineral wool insulation slabs fixed to backing wall P10/40 Insulation fitted betweenor to the face ofstuds P10/250 Insulation supported between floor joists P10/240 Insulation fitted between floor joists P10/220 Sound insulation within timber framed separating wall P10/217 Insulation slabs fixed to backing wall P10/212 Insulation fixed across inner face of stud walling P10/20 Insulation to loft access hatches P10/185 Soffit insulation P10/170 Insulation to loft access hatches P10/165 Insulation to eaves P10/15 Insulation fitted between rafters P10/140 Insulation fitted between rafters P10/125 Insulation laid between ceiling ties/ joists P10/10 Loft insulation H11/110 Curtain walling J42/425 Mineral wool (MW) insulation J21/125 Inverted roof coating J42/120 Inverted roof covering J42/110 Warm deck roof covering J42/10 Warm deck roof covering H65/25 Laying underlay H65/135 Ceramic slate roof tiling H65/10 Reconstituted slate roof tiling H65/125 Reconstituted slate roof tiling H64/25 Laying underlay H64/130 Vertical wood shingle/ shakes H64/110 Wood shingle/ shake roofing H62/140 Vertical slating H62/125 Roof slating H62/120 Vertical slating H62/105 Roof slating H61/25 Underlay H60/25 Fitting underlay H60/155 Concrete vertical tiling H60/120 Concrete roof tiling H65/105 Clay roof tiling H60/105 Clay roof tiling H92/780 Air and vapour control layer H92/785 Breather membrane L10/810 Sealant joints L20/820 Sealant joints P10/320 Breather membrane P10/310 Air and vapour control layer L10/75 Sealant joints L20/80 Sealant joints P10/65 Breather membrane |
Specification data - Polymer-based adhesive sealant tapes
Material | Diffusion-open special polyolefin (PO), film, elastic.Guidance for specification option: Impermeable to water, UV-stable, can be exposed to the atmosphere for 12 months. |
Bond | SIGA high-performance adhesive. |
Size | 60 mm wide. |
Colour | Light grey. |
Roll length | 40 m. |
Temperature resistance | -40 to +100°C. |
Sd value | <2 m (to EN 1931). |
Water resistance | Driving-rain-proof (Pmax): To EN 1027: 600 Pa; EN 12208: Class 9A. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Polyolefin |
Manufacturing plant location | |
Expected Life | Lifetime |
Third party certifications
Passive House Institute - Certificate
Passivhaus certificate
