Whitehall 2016 (D10 SR4) - Doorset

Verified by manufacturer 5 months ago

Whitehall 2016 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

The Whitehall 2016 doorset is developed to resist pre-planned professional attempts at forced entry of high risk government or commercial premises.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

High risk commercial or government premises.

Description

The doorset has been developed to resist pre-planned professional attempts at forced entry of high risk government or commercial premises, with no regard to noise, using a wide variety of mains powered tools.


Whitehall doorsets are available with single, outward opening leaves.


External doorsets are CE and UKCA marked to EN 14351-1. Internal non-fire-rated doorset third-party certified. External fire-rated doorset UKCA/CE marked in accordance with BS EN 14351-1 and BS EN 1634-1. Internal non-fire-rated doorset third-party certified. Internal fire-rated doorset to BS EN 1634-1.  LPS 1175 Issue 8 and FSC certified.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Primed

Painted

Veneered

Lacquered

Stained

Show more

Material

Timber

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

To EN 14351-1, BS EN 1634-1, BS EN 1522/1523 (FB4), BS EN 1522/1523 (FB6) and BS EN 1522/1523 (FB7).

Configuration

Single-leaf, single-action.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

Guidance for specification option:

Maximum / Minimum sizes to comply with security requirements regardless of fire rating:


  • Single doorset, outward: Structural opening is 1000 mm (W) x 2100 mm (H).

Manufacturer guidance

Consult technical literature for maximum allowable sizes, depending on configuration.

Performance

-

Fire resistance

-

Integrity

Single inward/ outward opening: FD60 to BS EN 1634-1.

Single inward/ outward opening: FD120 to BS EN 1634-1.

Acoustic performance

To BS EN ISO 10140-2: 2010, sound reduction in Rw 30 dB.

To BS EN ISO 10140-2: 2010, sound reduction in Rw 35 dB.

To BS EN ISO 10140-2: 2010, sound reduction in Rw 40dB.

To BS EN ISO 10140-2: 2010, sound reduction in Rw 45dB.

To BS EN ISO 10140-2: 2010, sound reduction in Rw 50dB.

Thermal

Whitehall 2016 FD120 single door – 3.1 W/m²•K.

Whitehall 2016 FD120 single door with glazing – 3.4 W/m²•K.

Intruder resistance

-

Minimum requirement

Contact NPSA for further Details. LPS 1175 Issue 8.

Conformity

Contact NPSA for further Details.

Bullet resistance

-

Manufacturer guidance

Independently tested to EN1522/1523: FB4, FB6 and FB7, please contact Stafford Bridge for further details.

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C15/C25 available for certain configurations, please contact Stafford Bridge for further details.

Frame

-

Material

Steel wrapped frame with steel reinforced timber infill.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Threshold

No threshold.

6 mm Stainless steel 304/ 316 soleplate (threshold) with a 15 mm upstand.

6 mm Stainless steel 304/ 316 soleplate (threshold).

Exitex CDT100 low level aluminium threshold on top of the 6 mm stainless steel Soleplate only (threshold).

Exitex CDT100 low level aluminium threshold.

Perimeter seals or inserts

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Full paint finish.

Primed ready for site finish.

Colour

As standard 30% Gloss.

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Door leaf

-

Thickness

Minimum 58 mm.

Guidance for specification option:

Option to be steel wrapped, Minimum 60 mm.


Core

Solid hardwood.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Facings

Formica laminated – Internal – MDF sheets under laminate.

Formica laminated – External – Ply sheets under laminate.

Acrovyn laminated – Internal – MDF sheets under laminate.

Acrovyn laminated – External – MDF sheets under laminate.

Hardwood veneered – Internal – MDF sheets under Veneer.

Hardwood veneered – External – Ply sheets under Veneer.

If painted and internal – MDF sheets to both faces of door leaf.

If painted and external – Ply sheets to both faces of door leaf.

Cut

Crown cut veneer.

Quarter cut veneer.

Lippings

Minimum 12 mm Hardwood Lippings.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Full paint finish.

Laminated.

Primed ready for site finish.

Sealed and lacquered.

Timber finished Factory stain.

Veneered.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

  • Painted steel beading as standard.
  • Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm.

None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for Fire resistance.

Beading

-

Type

External.

Internal.

Steel beading (manufacturer's standard).

Material

Steel.

Manufacturer guidance

If cloaked, then will be hardwood over the steel beading to match the door leaf finish.

Fixing

Manufacturers standard (steel beading) machine screws.

Manufacturer guidance

If cloaked, then this will be fixed to the vision panel using machine screws in a brass screw cup.

Door accessories

Door contacts

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators.

Door selectors.

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinge bolts.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


To match frame.

Guidance for specification option:

If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame.


Wood appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Finish

Full paint finish.

Primed ready for site finish.

Sealed and lacquered.

Timber finished factory stain.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Timber

Steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

UKAS

UKAS

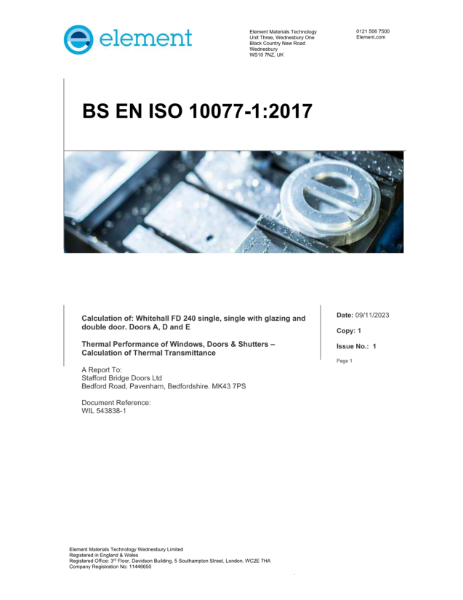

Whitehall BS EN 10077-1 Certificate

BRE Certificate

BRE Certificate

Wilton Doorset LPS 1175 Certificate

Literature

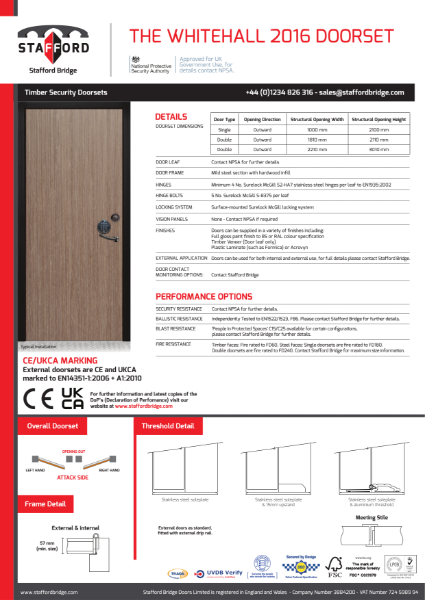

Whitehall 2016

Whitehall 2016
