Welford Dome Free Standing Canopy

Able Canopies Ltd

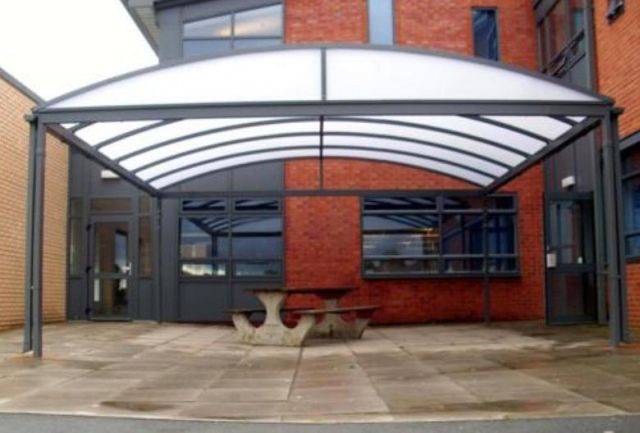

The Welford Dome is a popular domed roof canopy that is made from steel and is covered with polycarbonate roof panels. It can be any length and has a max. projection of 6 m.

Jump to:
0800 389 9072 Website

Application

The Welford is particularly popular with customers from the education sector as it makes a great playground canopy and covered outdoor seating area.

Description

Exceptionally versatile modular, free-standing steel framed canopy system suitable for a variety of applications. It is especially applicable as a walkway and free standing canopy.

The Welford combines excellent UV protection with high impact resistance and its unique design keeps installation times and on site disruption to a minimum.


Features and benefits:

  • Weather resistance: During the manufacture of the polycarbonate panels, a layer of UV absorber is co-extruded on both sides which forms a barrier, providing high UV protection from the sun.
  • The canopy has a life expectancy of 25 years.

General information

Color

Red

Framework

Blue

Framework

Green

Framework

Grey

Framework

Brown

Framework

Show more

Finish

Framework

Galvanized

Powder-coated

Material

Polycarbonate

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

6000 mm

Maximum.

Height

Bespoke

WarrantyDescription

25 year

Uniclass

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

Product range

Canopies

Specification data - Open-sided shelters

Shelter description

Dome, free-standing canopy.

Dimensions

-

Plan size

6 m width (maximum) x any length.

Width

Insert requirement, available up to 6 m.

Length

Insert requirement, available unlimited.

Height

Insert requirement.

-

Frame

-

Material

Framework:

Steel hollow, steel box.

  • Main frame: Constructed from 120 x 60 x 3 mm steel hollow section.
  • Roof bars: Constructed from 50 x 50 x 2.5 mm steel box section.


Finish

Galvanized.

Galvanized and powder coated.

Powder coated.

Colour

Not applicable.

For galvanized only.

RAL 3000 Flame Red.

RAL 5005 Signal Blue.

RAL 5010 Gentian Blue.

RAL 5012 Light Blue.

RAL 6001 Emerald Green.

RAL 6005 Moss Green.

RAL 7001 Silver Grey.

RAL 7016 Anthracite Grey.

RAL 8007 Fawn Brown.

RAL 9003 Signal White.

Standard.

RAL 9005 Jet Black.

RAL 9006 White Aluminium.

Special order.

Insert requirement.

Roof covering

Polycarbonate.

Accessories

None.

Front fills.

Post pads.

Safety barriers.

Secure roller shutters.

Side fills.

Signage.

Glazing detail

Material

Solid polycarbonate (5 mm thick), Structured polycarbonate (16 mm thick).

Glazing colour

Clear.

64% light transmission.

Opal.

33% light transmission.

Environmental information

Contains Red List materials

No

Country of material origin

various

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

50%

BIM objects

Platform Compatible Version
Revit
-

4

IFC
-

4

Literature

Able Canopies Product Portfolio

Able Canopies Product Portfolio
